Usmg5 (NM_023211) Mouse Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
MG200029
Usmg5 (tGFP-tagged) - Mouse upregulated during skeletal muscle growth 5 (Usmg5)
Interest in protein/lysate? Submit request here!
ORF Plasmid:
tGFP DDK
AAV Particle:
DDK
  $350.00
3 Weeks*
Bulk Requests & Clone Modifications

Frequently Bought Together (4)

TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8
100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "Usmg5 or NM_023211"

Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol Usmg5
Synonyms 2010301L15Rik
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data

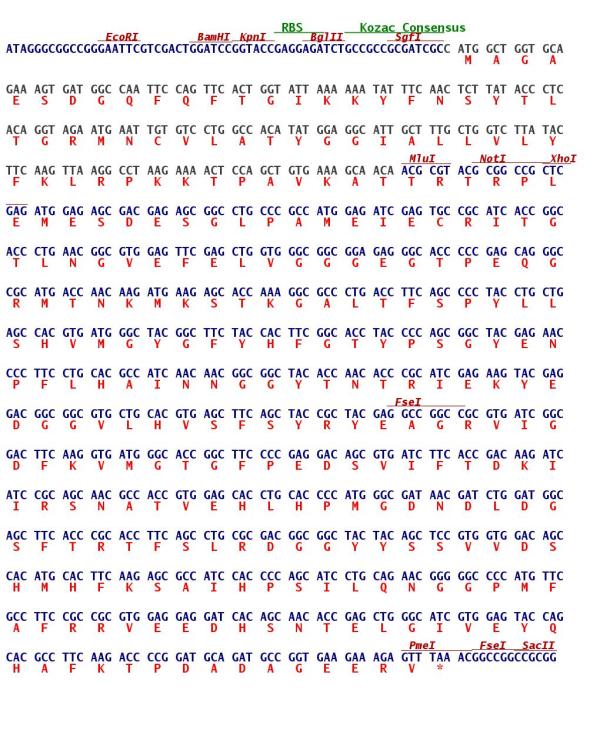

ORF Nucleotide Sequence
>MG200029 representing NM_023211
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCTGGTGCAGAAAGTGATGGCCAATTCCAGTTCACTGGTATTAAAAAATATTTCAACTCTTATACCC
TCACAGGTAGAATGAATTGTGTCCTGGCCACATATGGAGGCATTGCTTTGCTGGTCTTATACTTCAAGTT
AAGGCCTAAGAAAACTCCAGCTGTGAAAGCAACA

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>MG200029 representing NM_023211
Red=Cloning site Green=Tags(s)

MAGAESDGQFQFTGIKKYFNSYTLTGRMNCVLATYGGIALLVLYFKLRPKKTPAVKAT

TRTRPLE - GFP Tag - V

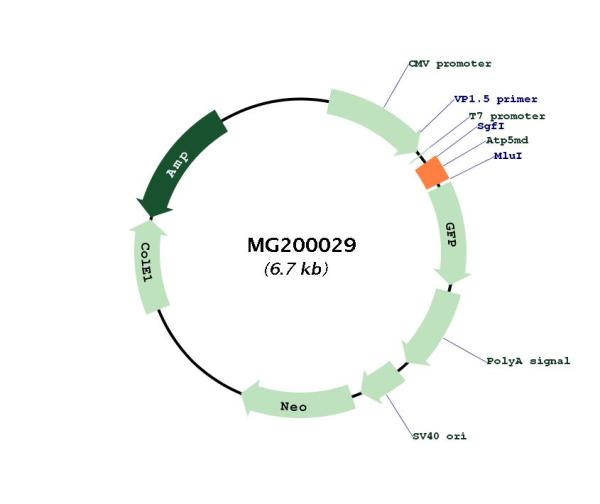

Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_023211
ORF Size 174 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_023211.5
RefSeq Size 370 bp
RefSeq ORF 177 bp
Locus ID 66477
UniProt ID Q78IK2
Cytogenetics 19 C3
Summary Mitochondrial membrane ATP synthase (F(1)F(0) ATP synthase or Complex V) produces ATP from ADP in the presence of a proton gradient across the membrane which is generated by electron transport complexes of the respiratory chain. F-type ATPases consist of two structural domains, F(1) - containing the extramembraneous catalytic core and F(0) - containing the membrane proton channel, linked together by a central stalk and a peripheral stalk. During catalysis, ATP synthesis in the catalytic domain of F(1) is coupled via a rotary mechanism of the central stalk subunits to proton translocation. Minor subunit required to maintain the ATP synthase population in the mitochondria.UniProtKB/Swiss-Prot Function
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Documents
Resources
"NM_023211" in other vectors (4)
SKU Description Size Price
MC201843 Usmg5 (untagged) - Mouse upregulated during skeletal muscle growth 5 (Usmg5), (10ug) 10 ug
$150.00
MR200029 Usmg5 (Myc-DDK-tagged) - Mouse upregulated during skeletal muscle growth 5 (Usmg5) 10 ug
$289.00
MR200029L3 Lenti ORF clone of Usmg5 (Myc-DDK-tagged) - Mouse upregulated during skeletal muscle growth 5 (Usmg5) 10 ug
$450.00
MR200029L4 Lenti ORF clone of Usmg5 (mGFP-tagged) - Mouse upregulated during skeletal muscle growth 5 (Usmg5) 10 ug
$450.00

file-alt Citations

*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
