HSPB2 (NM_001541) Human Tagged ORF Clone

  • TrueORF®
SKU
RG214718
HSPB2 (tGFP-tagged) - Human heat shock 27kDa protein 2 (HSPB2)
  $500.00
In Stock*
Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol HSPB2
Synonyms Hs.78846; HSP27; LOH11CR1K; MKBP
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RG214718 representing NM_001541
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGTCGGGCCGCTCAGTGCCACATGCCCACCCGGCCACCGCCGAGTACGAATTTGCCAACCCGAGCCGCC
TGGGTGAGCAGCGCTTCGGAGAAGGCCTCCTGCCAGAAGAGATCCTGACCCCCACACTCTACCATGGCTA
CTATGTCCGGCCTCGGGCCGCCCCAGCTGGGGAGGGCAGCAGGGCAGGGGCCTCCGAGCTTAGGCTCAGT
GAGGGCAAGTTCCAGGCATTTCTGGATGTGAGCCACTTTACCCCAGACGAGGTGACTGTGAGGACTGTGG
ATAACCTGCTGGAGGTGTCTGCCCGGCACCCCCAGCGCCTGGACCGCCACGGCTTCGTGTCCCGAGAGTT
CTGCCGCACCTATGTCCTGCCTGCTGATGTCGACCCCTGGCGAGTCCGAGCTGCTCTCTCCCATGATGGC
ATCTTAAACCTGGAAGCACCTCGGGGTGGCCGACATTTGGACACAGAGGTCAATGAGGTCTACATCTCCC
TGCTCCCTGCGCCTCCTGATCCAGAGGAAGAGGAGGAGGCAGCCATAGTTGAGCCC


ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>RG214718 representing NM_001541
Red=Cloning site Green=Tags(s)

MSGRSVPHAHPATAEYEFANPSRLGEQRFGEGLLPEEILTPTLYHGYYVRPRAAPAGEGSRAGASELRLS
EGKFQAFLDVSHFTPDEVTVRTVDNLLEVSARHPQRLDRHGFVSREFCRTYVLPADVDPWRVRAALSHDG
ILNLEAPRGGRHLDTEVNEVYISLLPAPPDPEEEEEAAIVEP

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_001541
ORF Size 546 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_001541.4
RefSeq Size 820 bp
RefSeq ORF 549 bp
Locus ID 3316
UniProt ID Q16082
Cytogenetics 11q23.1
Summary The protein encoded by this gene belongs to the superfamily of small heat-shock proteins containing a conservative alpha-crystallin domain at the C-terminal part of the molecule. The protein is expressed preferentially in the heart and skeletal muscle. This protein regulates Myotonic Dystrophy Protein Kinase, which plays an important role in maintenance of muscle structure and function. provided by RefSeq, Dec 2012
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_001541" in other vectors (4)
SKU Description Size Price
RC214718 HSPB2 (Myc-DDK-tagged)-Human heat shock 27kDa protein 2 (HSPB2) 10 ug
$300.00
RC214718L3 Lenti ORF clone of Human heat shock 27kDa protein 2 (HSPB2), Myc-DDK-tagged 10 ug
$600.00
RC214718L4 Lenti ORF clone of Human heat shock 27kDa protein 2 (HSPB2), mGFP tagged 10 ug
$600.00
SC303043 HSPB2 (untagged)-Human heat shock 27kDa protein 2 (HSPB2) 10 ug
$330.00

Plasmid Map for RG214718

Download sequence for

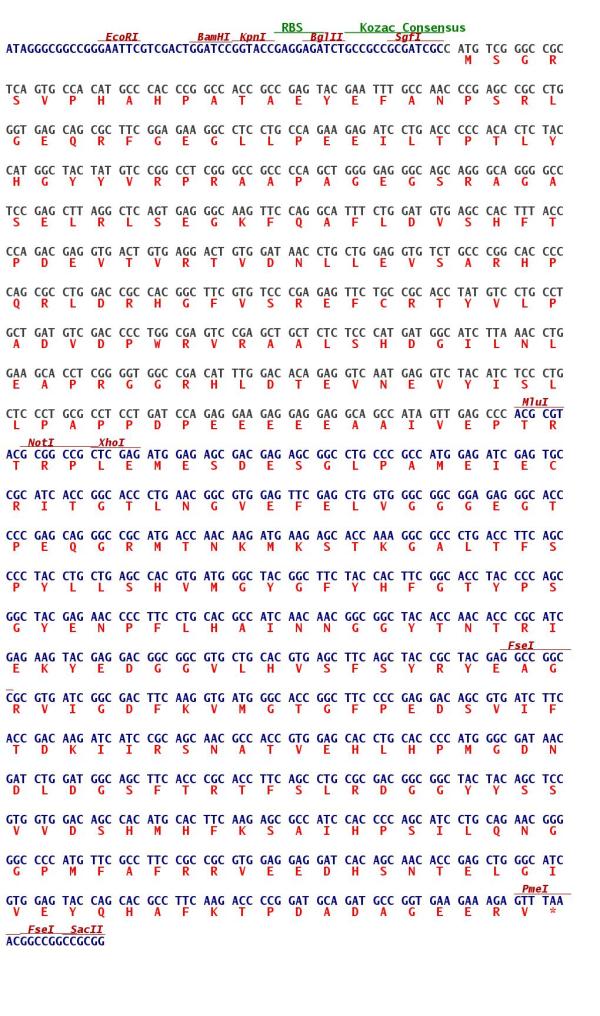

Cloning scheme for RG214718

Circular map for RG214718

file-alt Citations

Schisandrin B ameliorates high glucose-induced vascular endothelial cells injury by regulating Noxa/Hsp27/NF-κB signaling pathway
Lin, Liu, Guo et al
Biochem. Cell Biol. (2019)
AI Summary: OriGene products, including the GFP vector (CAT#: RG214718) and shRNA constructs targeting Hsp27 and Noxa, were used for gene overexpression and knockdown experiments, enabling the study of molecular mechanisms by which Schisandrin B modulates inflammation in vascular endothelial cells.
Snippet: GFP vector (CAT#: RG214718, Origene, Rockville, MD, USA) and the Noxa gene sequence was The knock down of Hsp27 and Noxa was performed with shRNA (Origene) and the transfection was carried out with Lipofectamine 3000 (Thermo Fisher Scientific)
Showing 1-1 of 1 papers.
Powered by BizGenius
*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
