Olfr620 (NM_146812) Mouse Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
MG214907
Olfr620 (tGFP-tagged) - Mouse olfactory receptor 620 (Olfr620), (10ug)
Interest in protein/lysate? Submit request here!
ORF Plasmid:
tGFP DDK
AAV Particle:
DDK
  $500.00
3 Weeks*
Bulk Requests & Clone Modifications

Frequently Bought Together (4)

TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8
100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "Olfr620 or NM_146812"

Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol Olfr620
Synonyms MOR4-1
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>MG214907 representing NM_146812
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGACTGCTCTCTCTGTCACAAACTACACTAGTTCTAGGTTTGCTCTGACTGGTTTCCCTGGTTTAGAAA
TTTATTACTTCTGGATATCTGTCCCATTCTTTATAATCTATGTGACGGTGTTCCTGGGAAATTGTATGGT
ACTTCATGTGATTCGGACTGAGCTGAGCCTGCACCAGCCCATGTTCTATTTCCTGGCCATGTTAGCCCTC
ACAGACCTATGCATGGGGTTGTCCACTGTGCACACGGTAATGGGTATCCTTTGGGGCTTCCTTCAAGAGA
TCAGCCTTGATGCCTGCATTGCACAGTCTTACTTCATTCACGGTTTGTCCTTCATGGAGTCCTCTGTCCT
CCTCGCCATGTCCTTTGACCGCTACATTGCCATTTGCAACCCTCTACGCTATTCCTCCATCCTAACCAAT
GACAGGATCCTGAAAATCGGAGTGGCCATCTTATGTAGGAGTTCTATGCTCATTCCTCCAGTTATTATCC
GCCTGAAGTTCTTAAATTACTGCAGGCCTCATTTCCTCTCCCATTCTTTCTGCCTGCACCAAGACTTAAT
TAGAATGGCCTGTGGAGATATCCGCTTCAATAGCATCTATGGTCTAGCTCTGGTGATCAGCAACTTGTTA
GTGGACTCAGTGCTAATATTAATATCATATATTATGATCCTGTACACAGTTCTGTCTATTGCATCCAGGG
AGGAGAGAATCAAGTCTTTGCAAACATGTGTATCTCACATCTCTGCTGTTTTGGTTTTCTACATCCCCAT
CATTGGTCTGACCATGGTTCACCGCTTTGGGAAGCATCTCTCACCATTGGTTCATGTCCTCATGGGCAAT
GTCTACATCCTTTTCCCACCTTTGATGAACCCCATTATATACAGTATCAAGACTCAACAGATACGAGTGA
GAATTCAGCGGTTGTTCTTGAAGGGAACC

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>MG214907 representing NM_146812
Red=Cloning site Green=Tags(s)

MTALSVTNYTSSRFALTGFPGLEIYYFWISVPFFIIYVTVFLGNCMVLHVIRTELSLHQPMFYFLAMLAL
TDLCMGLSTVHTVMGILWGFLQEISLDACIAQSYFIHGLSFMESSVLLAMSFDRYIAICNPLRYSSILTN
DRILKIGVAILCRSSMLIPPVIIRLKFLNYCRPHFLSHSFCLHQDLIRMACGDIRFNSIYGLALVISNLL
VDSVLILISYIMILYTVLSIASREERIKSLQTCVSHISAVLVFYIPIIGLTMVHRFGKHLSPLVHVLMGN
VYILFPPLMNPIIYSIKTQQIRVRIQRLFLKGT

TRTRPLE - GFP Tag - V

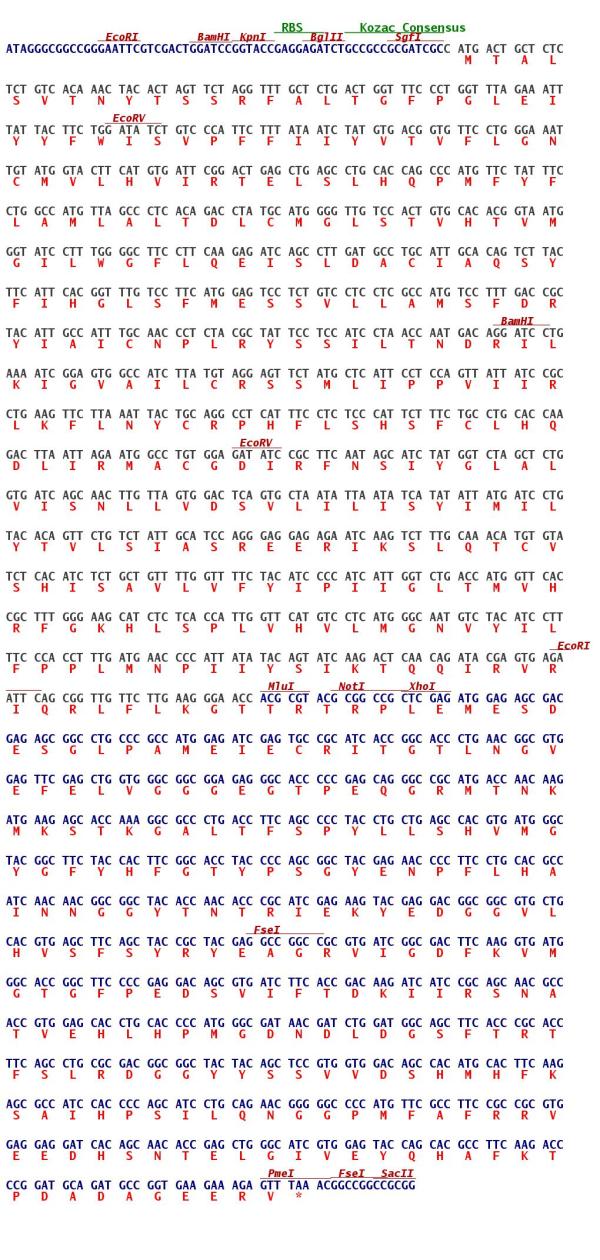

Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_146812
ORF Size 939 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_146812.2, NP_667023.2
RefSeq Size 942 bp
RefSeq ORF 942 bp
Locus ID 258808
Cytogenetics 7 E3
Summary Olfactory receptors interact with odorant molecules in the nose, to initiate a neuronal response that triggers the perception of a smell. The olfactory receptor proteins are members of a large family of G-protein-coupled receptors (GPCR) arising from single coding-exon genes. Olfactory receptors share a 7-transmembrane domain structure with many neurotransmitter and hormone receptors and are responsible for the recognition and G protein-mediated transduction of odorant signals. The olfactory receptor gene family is the largest in the genome. The nomenclature assigned to the olfactory receptor genes and proteins for this organism is independent of other organisms. provided by RefSeq, Jul 2008
