GTP binding protein era homolog (ERAL1) (NM_005702) Human Tagged ORF Clone

SKU RC205710

ERAL1 (Myc-DDK-tagged)-Human Era G-protein-like 1 (E. coli) (ERAL1)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: GTP binding protein era homolog
• Synonyms: CEGA; ERA; ERA-W; ERAL1A; ERAL1B; H-ERA; HERA-A; HERA-B; PRLTS6
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

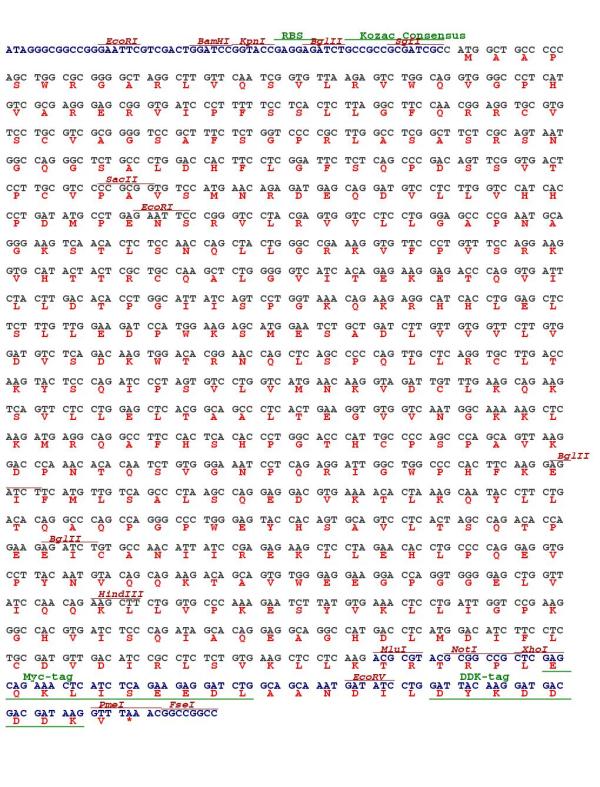

  >RC205710 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCTGCCCCCAGCTGGCGCGGGGCTAGGCTTGTTCAATCGGTGTTAAGAGTCTGGCAGGTGGGCCCTC; ATGTCGCGAGGGAGCGGGTGATCCCTTTTTCCTCACTCTTAGGCTTCCAACGGAGGTGCGTGTCCTGCGT; CGCGGGGTCCGCTTTCTCTGGTCCCCGCTTGGCCTCGGCTTCTCGCAGTAATGGCCAGGGCTCTGCCCTG; GACCACTTCCTCGGATTCTCTCAGCCCGACAGTTCGGTGACTCCTTGCGTCCCCGCGGTGTCCATGAACA; GAGATGAGCAGGATGTCCTCTTGGTCCATCACCCTGATATGCCTGAGAATTCCCGGGTCCTACGAGTGGT; CCTCCTGGGAGCCCCGAATGCAGGGAAGTCAACACTCTCCAACCAGCTACTGGGCCGAAAGGTGTTCCCT; GTTTCCAGGAAGGTGCATACTACTCGCTGCCAAGCTCTGGGGGTCATCACAGAGAAGGAGACCCAGGTGA; TTCTACTTGACACACCTGGCATTATCAGTCCTGGTAAACAGAAGAGGCATCACCTGGAGCTCTCTTTGTT; GGAAGATCCATGGAAGAGCATGGAATCTGCTGATCTTGTTGTGGTTCTTGTGGATGTCTCAGACAAGTGG; ACACGGAACCAGCTCAGCCCCCAGTTGCTCAGGTGCTTGACCAAGTACTCCCAGATCCCTAGTGTCCTGG; TCATGAACAAGGTAGATTGTTTGAAGCAGAAGTCAGTTCTCCTGGAGCTCACGGCAGCCCTCACTGAAGG; TGTGGTCAATGGCAAAAAGCTCAAGATGAGGCAGGCCTTCCACTCACACCCTGGCACCCATTGCCCCAGC; CCAGCAGTTAAGGACCCAAACACACAATCTGTGGGAAATCCTCAGAGGATTGGCTGGCCCCACTTCAAGG; AGATCTTCATGTTGTCAGCCCTAAGCCAGGAGGACGTGAAAACACTAAAGCAATACCTTCTGACACAGGC; CCAGCCAGGGCCCTGGGAGTACCACAGTGCAGTCCTCACTAGCCAGACACCAGAAGAGATCTGTGCCAAC; ATTATCCGAGAGAAGCTCCTAGAACACCTGCCCCAGGAGGTGCCTTACAATGTACAGCAGAAGACAGCAG; TGTGGGAGGAAGGACCAGGTGGGGAGCTGGTTATCCAACAGAAGCTTCTGGTGCCCAAAGAATCTTATGT; GAAACTCCTGATTGGTCCGAAGGGCCACGTGATCTCCCAGATAGCACAGGAGGCAGGCCATGACCTCATG; GACATCTTCCTCTGCGATGTTGACATCCGCCTCTCTGTGAAGCTCCTCAAG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC205710 protein sequence; Red=Cloning site Green=Tags(s); ; MAAPSWRGARLVQSVLRVWQVGPHVARERVIPFSSLLGFQRRCVSCVAGSAFSGPRLASASRSNGQGSAL; DHFLGFSQPDSSVTPCVPAVSMNRDEQDVLLVHHPDMPENSRVLRVVLLGAPNAGKSTLSNQLLGRKVFP; VSRKVHTTRCQALGVITEKETQVILLDTPGIISPGKQKRHHLELSLLEDPWKSMESADLVVVLVDVSDKW; TRNQLSPQLLRCLTKYSQIPSVLVMNKVDCLKQKSVLLELTAALTEGVVNGKKLKMRQAFHSHPGTHCPS; PAVKDPNTQSVGNPQRIGWPHFKEIFMLSALSQEDVKTLKQYLLTQAQPGPWEYHSAVLTSQTPEEICAN; IIREKLLEHLPQEVPYNVQQKTAVWEEGPGGELVIQQKLLVPKESYVKLLIGPKGHVISQIAQEAGHDLM; DIFLCDVDIRLSVKLLK; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_005702
• ORF Size: 1311 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_005702.4
• RefSeq Size: 1856 bp
• RefSeq ORF: 1314 bp
• Locus ID: 26284
• UniProt ID: O75616
• Cytogenetics: 17q11.2
• MW: 48.4 kDa
• Summary: The protein encoded by this gene is a GTPase that localizes to the mitochondrion. The encoded protein binds to the 3' terminal stem loop of 12S mitochondrial rRNA and is required for proper assembly of the 28S small mitochondrial ribosomal subunit. Deletion of this gene has been shown to cause mitochondrial dysfunction, growth retardation, and apoptosis. Several transcript variants encoding different isoforms have been found for this gene. [provided by RefSeq, Dec 2015]
