SH2D1A (NM_002351) Human Tagged ORF Clone

SKU RG204723

SH2D1A (tGFP-tagged) - Human SH2 domain containing 1A (SH2D1A), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: SH2D1A
• Synonyms: DSHP; EBVS; IMD5; LYP; MTCP1; SAP; SAP/SH2D1A; XLP; XLPD; XLPD1
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

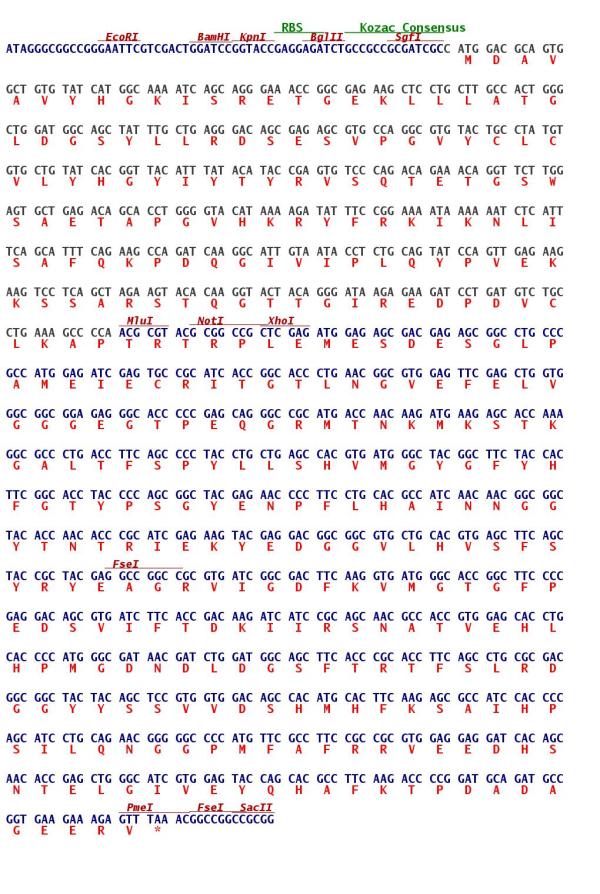

  ORF Nucleotide Sequence

  >RG204723 representing NM_002351; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGACGCAGTGGCTGTGTATCATGGCAAAATCAGCAGGGAAACCGGCGAGAAGCTCCTGCTTGCCACTG; GGCTGGATGGCAGCTATTTGCTGAGGGACAGCGAGAGCGTGCCAGGCGTGTACTGCCTATGTGTGCTGTA; TCACGGTTACATTTATACATACCGAGTGTCCCAGACAGAAACAGGTTCTTGGAGTGCTGAGACAGCACCT; GGGGTACATAAAAGATATTTCCGGAAAATAAAAAATCTCATTTCAGCATTTCAGAAGCCAGATCAAGGCA; TTGTAATACCTCTGCAGTATCCAGTTGAGAAGAAGTCCTCAGCTAGAAGTACACAAGGTACTACAGGGAT; AAGAGAAGATCCTGATGTCTGCCTGAAAGCCCCA; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG204723 representing NM_002351; Red=Cloning site Green=Tags(s); ; MDAVAVYHGKISRETGEKLLLATGLDGSYLLRDSESVPGVYCLCVLYHGYIYTYRVSQTETGSWSAETAP; GVHKRYFRKIKNLISAFQKPDQGIVIPLQYPVEKKSSARSTQGTTGIREDPDVCLKAP; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_002351
• ORF Size: 384 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_002351.5
• RefSeq Size: 2530 bp
• RefSeq ORF: 387 bp
• Locus ID: 4068
• UniProt ID: O60880
• Cytogenetics: Xq25
• Domains: SH2
• Protein Families: Druggable Genome
• Protein Pathways: Natural killer cell mediated cytotoxicity
• Summary: This gene encodes a protein that plays a major role in the bidirectional stimulation of T and B cells. This protein contains an SH2 domain and a short tail. It associates with the signaling lymphocyte-activation molecule, thereby acting as an inhibitor of this transmembrane protein by blocking the recruitment of the SH2-domain-containing signal-transduction molecule SHP-2 to its docking site. This protein can also bind to other related surface molecules that are expressed on activated T, B and NK cells, thereby modifying signal transduction pathways in these cells. Mutations in this gene cause lymphoproliferative syndrome X-linked type 1 or Duncan disease, a rare immunodeficiency characterized by extreme susceptibility to infection with Epstein-Barr virus, with symptoms including severe mononucleosis and malignant lymphoma. Multiple transcript variants encoding different isoforms have been found for this gene. [provided by RefSeq, Jul 2008]
