IL16 (NM_004513) Human Tagged ORF Clone

SKU RC220031

IL16 (Myc-DDK-tagged)-Human interleukin 16 (lymphocyte chemoattractant factor) (IL16), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: IL16
• Synonyms: LCF; NIL16; prIL-16; PRIL16
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

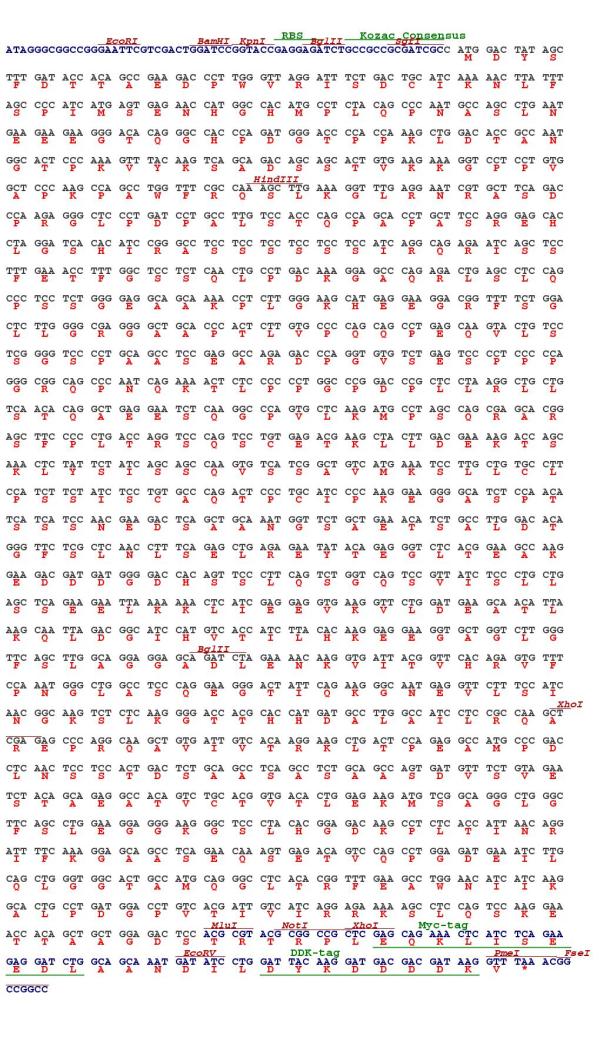

  ORF Nucleotide Sequence

  >RC220031 representing NM_004513; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGACTATAGCTTTGATACCACAGCCGAAGACCCTTGGGTTAGGATTTCTGACTGCATCAAAAACTTAT; TTAGCCCCATCATGAGTGAGAACCATGGCCACATGCCTCTACAGCCCAATGCCAGCCTGAATGAAGAAGA; AGGGACACAGGGCCACCCAGATGGGACCCCACCAAAGCTGGACACCGCCAATGGCACTCCCAAAGTTTAC; AAGTCAGCAGACAGCAGCACTGTGAAGAAAGGTCCTCCTGTGGCTCCCAAGCCAGCCTGGTTTCGCCAAA; GCTTGAAAGGTTTGAGGAATCGTGCTTCAGACCCAAGAGGGCTCCCTGATCCTGCCTTGTCCACCCAGCC; AGCACCTGCTTCCAGGGAGCACCTAGGATCACACATCCGGGCCTCCTCCTCCTCCTCCTCCATCAGGCAG; AGAATCAGCTCCTTTGAAACCTTTGGCTCCTCTCAACTGCCTGACAAAGGAGCCCAGAGACTGAGCCTCC; AGCCCTCCTCTGGGGAGGCAGCAAAACCTCTTGGGAAGCATGAGGAAGGACGGTTTTCTGGACTCTTGGG; GCGAGGGGCTGCACCCACTCTTGTGCCCCAGCAGCCTGAGCAAGTACTGTCCTCGGGGTCCCCTGCAGCC; TCCGAGGCCAGAGACCCAGGTGTGTCTGAGTCCCCTCCCCCAGGGCGGCAGCCCAATCAGAAAACTCTCC; CCCCTGGCCCGGACCCGCTCCTAAGGCTGCTGTCAACACAGGCTGAGGAATCTCAAGGCCCAGTGCTCAA; GATGCCTAGCCAGCGAGCACGGAGCTTCCCCCTGACCAGGTCCCAGTCCTGTGAGACGAAGCTACTTGAC; GAAAAGACCAGCAAACTCTATTCTATCAGCAGCCAAGTGTCATCGGCTGTCATGAAATCCTTGCTGTGCC; TTCCATCTTCTATCTCCTGTGCCCAGACTCCCTGCATCCCCAAGGAAGGGGCATCTCCAACATCATCATC; CAACGAAGACTCAGCTGCAAATGGTTCTGCTGAAACATCTGCCTTGGACACAGGGTTCTCGCTCAACCTT; TCAGAGCTGAGAGAATATACAGAGGGTCTCACGGAAGCCAAGGAAGACGATGATGGGGACCACAGTTCCC; TTCAGTCTGGTCAGTCCGTTATCTCCCTGCTGAGCTCAGAAGAATTAAAAAAACTCATCGAGGAGGTGAA; GGTTCTGGATGAAGCAACATTAAAGCAATTAGACGGCATCCATGTCACCATCTTACACAAGGAGGAAGGT; GCTGGTCTTGGGTTCAGCTTGGCAGGAGGAGCAGATCTAGAAAACAAGGTGATTACGGTTCACAGAGTGT; TTCCAAATGGGCTGGCCTCCCAGGAAGGGACTATTCAGAAGGGCAATGAGGTTCTTTCCATCAACGGCAA; GTCTCTCAAGGGGACCACGCACCATGATGCCTTGGCCATCCTCCGCCAAGCTCGAGAGCCCAGGCAAGCT; GTGATTGTCACAAGGAAGCTGACTCCAGAGGCCATGCCCGACCTCAACTCCTCCACTGACTCTGCAGCCT; CAGCCTCTGCAGCCAGTGATGTTTCTGTAGAATCTACAGCAGAGGCCACAGTCTGCACGGTGACACTGGA; GAAGATGTCGGCAGGGCTGGGCTTCAGCCTGGAAGGAGGGAAGGGCTCCCTACACGGAGACAAGCCTCTC; ACCATTAACAGGATTTTCAAAGGAGCAGCCTCAGAACAAAGTGAGACAGTCCAGCCTGGAGATGAAATCT; TGCAGCTGGGTGGCACTGCCATGCAGGGCCTCACACGGTTTGAAGCCTGGAACATCATCAAGGCACTGCC; TGATGGACCTGTCACGATTGTCATCAGGAGAAAAAGCCTCCAGTCCAAGGAAACCACAGCTGCTGGAGAC; TCC; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC220031 representing NM_004513; Red=Cloning site Green=Tags(s); ; MDYSFDTTAEDPWVRISDCIKNLFSPIMSENHGHMPLQPNASLNEEEGTQGHPDGTPPKLDTANGTPKVY; KSADSSTVKKGPPVAPKPAWFRQSLKGLRNRASDPRGLPDPALSTQPAPASREHLGSHIRASSSSSSIRQ; RISSFETFGSSQLPDKGAQRLSLQPSSGEAAKPLGKHEEGRFSGLLGRGAAPTLVPQQPEQVLSSGSPAA; SEARDPGVSESPPPGRQPNQKTLPPGPDPLLRLLSTQAEESQGPVLKMPSQRARSFPLTRSQSCETKLLD; EKTSKLYSISSQVSSAVMKSLLCLPSSISCAQTPCIPKEGASPTSSSNEDSAANGSAETSALDTGFSLNL; SELREYTEGLTEAKEDDDGDHSSLQSGQSVISLLSSEELKKLIEEVKVLDEATLKQLDGIHVTILHKEEG; AGLGFSLAGGADLENKVITVHRVFPNGLASQEGTIQKGNEVLSINGKSLKGTTHHDALAILRQAREPRQA; VIVTRKLTPEAMPDLNSSTDSAASASAASDVSVESTAEATVCTVTLEKMSAGLGFSLEGGKGSLHGDKPL; TINRIFKGAASEQSETVQPGDEILQLGGTAMQGLTRFEAWNIIKALPDGPVTIVIRRKSLQSKETTAAGD; S; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_004513
• ORF Size: 1893 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_004513.5
• RefSeq Size: 6193 bp
• RefSeq ORF: 1896 bp
• Locus ID: 3603
• UniProt ID: Q14005
• Cytogenetics: 15q25.1
• Domains: PDZ
• Protein Families: Druggable Genome, Secreted Protein
• MW: 66.5 kDa
• Summary: The protein encoded by this gene is a pleiotropic cytokine that functions as a chemoattractant, a modulator of T cell activation, and an inhibitor of HIV replication. The signaling process of this cytokine is mediated by CD4. The product of this gene undergoes proteolytic processing, which is found to yield two functional proteins. The cytokine function is exclusively attributed to the secreted C-terminal peptide, while the N-terminal product may play a role in cell cycle control. Caspase 3 is reported to be involved in the proteolytic processing of this protein. Alternate splicing results in multiple transcript variants. [provided by RefSeq, Feb 2010]
