STX1B (NM_052874) Human Tagged ORF Clone

SKU RC209124

STX1B (Myc-DDK-tagged)-Human syntaxin 1B (STX1B)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: STX1B
• Synonyms: GEFSP9; STX1B1; STX1B2
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

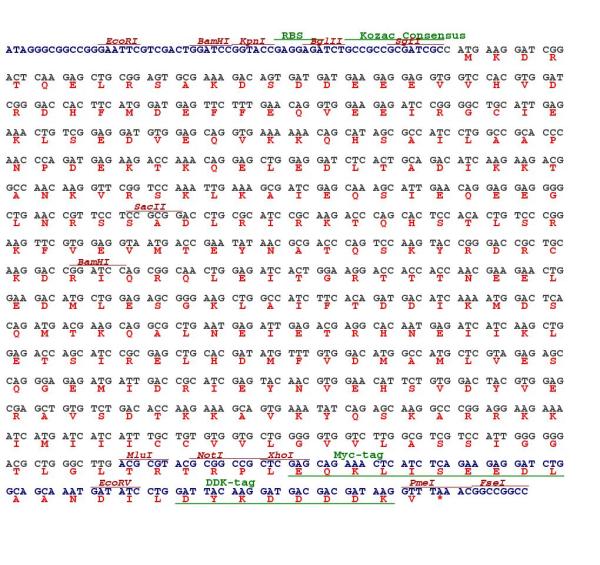

  ORF Nucleotide Sequence

  >RC209124 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGAAGGATCGGACTCAAGAGCTGCGGAGTGCGAAAGACAGTGATGATGAAGAGGAGGTGGTCCACGTGG; ATCGGGACCACTTCATGGATGAGTTCTTTGAACAGGTGGAAGAGATCCGGGGCTGCATTGAGAAACTGTC; GGAGGATGTGGAGCAGGTGAAAAAACAGCATAGCGCCATCCTGGCCGCACCCAACCCAGATGAGAAGACC; AAACAGGAGCTGGAGGATCTCACTGCAGACATCAAGAAGACGGCCAACAAGGTTCGGTCCAAATTGAAAG; CGATCGAGCAAAGCATTGAACAGGAGGAGGGGCTGAACCGTTCCTCCGCGGACCTGCGCATCCGCAAGAC; CCAGCACTCCACACTGTCCCGGAAGTTCGTGGAGGTAATGACCGAATATAACGCGACCCAGTCCAAGTAC; CGGGACCGCTGCAAGGACCGGATCCAGCGGCAACTGGAGATCACTGGAAGGACCACCACCAACGAAGAAC; TGGAAGACATGCTGGAGAGCGGGAAGCTGGCCATCTTCACAGATGACATCAAAATGGACTCACAGATGAC; GAAGCAGGCGCTGAATGAGATTGAGACGAGGCACAATGAGATCATCAAGCTGGAGACCAGCATCCGCGAG; CTGCACGATATGTTTGTGGACATGGCCATGCTCGTAGAGAGCCAGGGAGAGATGATTGACCGCATCGAGT; ACAACGTGGAACATTCTGTGGACTACGTGGAGCGAGCTGTGTCTGACACCAAGAAAGCAGTGAAATATCA; GAGCAAGGCCCGGAGGAAGAAAATCATGATCATCATTTGCTGTGTGGTGCTGGGGGTGGTCTTGGCGTCG; TCCATTGGGGGGACGCTGGGCTTG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC209124 protein sequence; Red=Cloning site Green=Tags(s); ; MKDRTQELRSAKDSDDEEEVVHVDRDHFMDEFFEQVEEIRGCIEKLSEDVEQVKKQHSAILAAPNPDEKT; KQELEDLTADIKKTANKVRSKLKAIEQSIEQEEGLNRSSADLRIRKTQHSTLSRKFVEVMTEYNATQSKY; RDRCKDRIQRQLEITGRTTTNEELEDMLESGKLAIFTDDIKMDSQMTKQALNEIETRHNEIIKLETSIRE; LHDMFVDMAMLVESQGEMIDRIEYNVEHSVDYVERAVSDTKKAVKYQSKARRKKIMIIICCVVLGVVLAS; SIGGTLGL; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_052874
• ORF Size: 864 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_052874.5
• RefSeq Size: 4544 bp
• RefSeq ORF: 867 bp
• Locus ID: 112755
• UniProt ID: P61266
• Cytogenetics: 16p11.2
• Domains: SynN, t_SNARE
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: SNARE interactions in vesicular transport
• MW: 33.2 kDa
• Summary: The protein encoded by this gene belongs to a family of proteins thought to play a role in the exocytosis of synaptic vesicles. Vesicle exocytosis releases vesicular contents and is important to various cellular functions. For instance, the secretion of transmitters from neurons plays an important role in synaptic transmission. After exocytosis, the membrane and proteins from the vesicle are retrieved from the plasma membrane through the process of endocytosis. Mutations in this gene have been identified as one cause of fever-associated epilepsy syndromes. A possible link between this gene and Parkinson's disease has also been suggested. [provided by RefSeq, Jan 2015]
