CACNB1 (NM_000723) Human Tagged ORF Clone
SKU
RC207230
CACNB1 (Myc-DDK-tagged)-Human calcium channel, voltage-dependent, beta 1 subunit (CACNB1), transcript variant 1
-
TrueORF Gold
Protein expression verified by Western blot, fully sequenced and in stock
Click here to learn more.
Product Data | |
Type | Human Tagged ORF Clone |
---|---|
Target Symbol | CACNB1 |
Synonyms | CAB1; CACNLB1; CCHLB1 |
Vector | pCMV6-Entry |
E. coli Selection | Kanamycin (25 ug/mL) |
Mammalian Cell Selection | Neomycin |
Sequence Data |

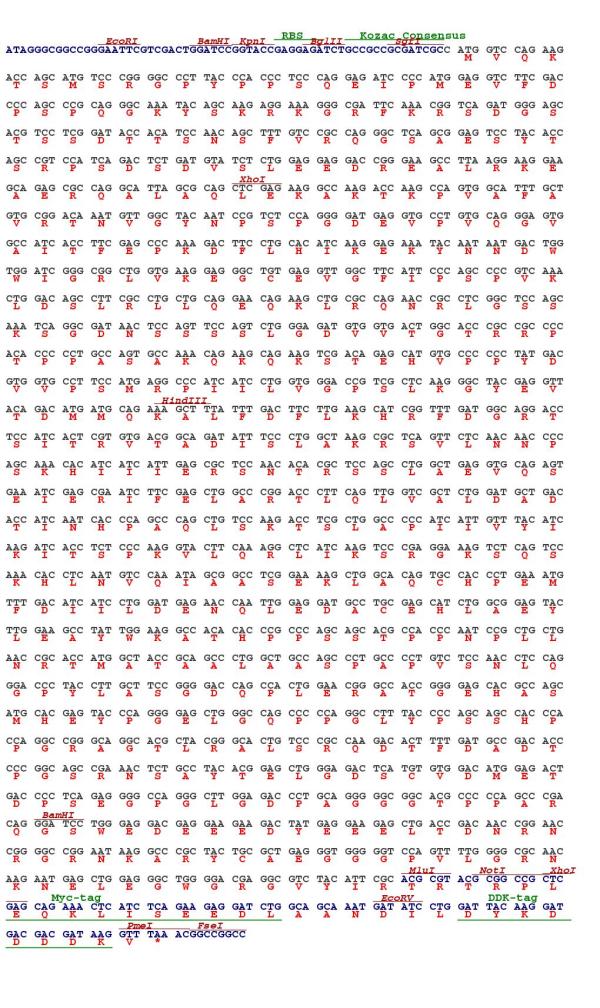

ORF Nucleotide Sequence
>RC207230 representing NM_000723
Red=Cloning site Blue=ORF Green=Tags(s) TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC GCCGCGATCGCC ATGGTCCAGAAGACCAGCATGTCCCGGGGCCCTTACCCACCCTCCCAGGAGATCCCCATGGAGGTCTTCG ACCCCAGCCCGCAGGGCAAATACAGCAAGAGGAAAGGGCGATTCAAACGGTCAGATGGGAGCACGTCCTC GGATACCACATCCAACAGCTTTGTCCGCCAGGGCTCAGCGGAGTCCTACACCAGCCGTCCATCAGACTCT GATGTATCTCTGGAGGAGGACCGGGAAGCCTTAAGGAAGGAAGCAGAGCGCCAGGCATTAGCGCAGCTCG AGAAGGCCAAGACCAAGCCAGTGGCATTTGCTGTGCGGACAAATGTTGGCTACAATCCGTCTCCAGGGGA TGAGGTGCCTGTGCAGGGAGTGGCCATCACCTTCGAGCCCAAAGACTTCCTGCACATCAAGGAGAAATAC AATAATGACTGGTGGATCGGGCGGCTGGTGAAGGAGGGCTGTGAGGTTGGCTTCATTCCCAGCCCCGTCA AACTGGACAGCCTTCGCCTGCTGCAGGAACAGAAGCTGCGCCAGAACCGCCTCGGCTCCAGCAAATCAGG CGATAACTCCAGTTCCAGTCTGGGAGATGTGGTGACTGGCACCCGCCGCCCCACACCCCCTGCCAGTGCC AAACAGAAGCAGAAGTCGACAGAGCATGTGCCCCCCTATGACGTGGTGCCTTCCATGAGGCCCATCATCC TGGTGGGACCGTCGCTCAAGGGCTACGAGGTTACAGACATGATGCAGAAAGCTTTATTTGACTTCTTGAA GCATCGGTTTGATGGCAGGACCTCCATCACTCGTGTGACGGCAGATATTTCCCTGGCTAAGCGCTCAGTT CTCAACAACCCCAGCAAACACATCATCATTGAGCGCTCCAACACACGCTCCAGCCTGGCTGAGGTGCAGA GTGAAATCGAGCGAATCTTCGAGCTGGCCCGGACCCTTCAGTTGGTCGCTCTGGATGCTGACACCATCAA TCACCCAGCCCAGCTGTCCAAGACCTCGCTGGCCCCCATCATTGTTTACATCAAGATCACCTCTCCCAAG GTACTTCAAAGGCTCATCAAGTCCCGAGGAAAGTCTCAGTCCAAACACCTCAATGTCCAAATAGCGGCCT CGGAAAAGCTGGCACAGTGCCACCCTGAAATGTTTGACATCATCCTGGATGAGAACCAATTGGAGGATGC CTGCGAGCATCTGGCGGAGTACTTGGAAGCCTATTGGAAGGCCACACACCCGCCCAGCAGCACGCCACCC AATCCGCTGCTGAACCGCACCATGGCTACCGCAGCCCTGGCTGCCAGCCCTGCCCCTGTCTCCAACCTCC AGGGACCCTACCTTGCTTCCGGGGACCAGCCACTGGAACGGGCCACCGGGGAGCACGCCAGCATGCACGA GTACCCAGGGGAGCTGGGCCAGCCCCCAGGCCTTTACCCCAGCAGCCACCCACCAGGCCGGGCAGGCACG CTACGGGCACTGTCCCGCCAAGACACTTTTGATGCCGACACCCCCGGCAGCCGAAACTCTGCCTACACGG AGCTGGGAGACTCATGTGTGGACATGGAGACTGACCCCTCAGAGGGGCCAGGGCTTGGAGACCCTGCAGG GGGCGGCACGCCCCCAGCCCGACAGGGATCCTGGGAGGACGAGGAAGAAGACTATGAGGAAGAGCTGACC GACAACCGGAACCGGGGCCGGAATAAGGCCCGCTACTGCGCTGAGGGTGGGGGTCCAGTTTTGGGGCGCA ACAAGAATGAGCTGGAGGGCTGGGGACGAGGCGTCTACATTCGC ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC207230 representing NM_000723
Red=Cloning site Green=Tags(s) MVQKTSMSRGPYPPSQEIPMEVFDPSPQGKYSKRKGRFKRSDGSTSSDTTSNSFVRQGSAESYTSRPSDS DVSLEEDREALRKEAERQALAQLEKAKTKPVAFAVRTNVGYNPSPGDEVPVQGVAITFEPKDFLHIKEKY NNDWWIGRLVKEGCEVGFIPSPVKLDSLRLLQEQKLRQNRLGSSKSGDNSSSSLGDVVTGTRRPTPPASA KQKQKSTEHVPPYDVVPSMRPIILVGPSLKGYEVTDMMQKALFDFLKHRFDGRTSITRVTADISLAKRSV LNNPSKHIIIERSNTRSSLAEVQSEIERIFELARTLQLVALDADTINHPAQLSKTSLAPIIVYIKITSPK VLQRLIKSRGKSQSKHLNVQIAASEKLAQCHPEMFDIILDENQLEDACEHLAEYLEAYWKATHPPSSTPP NPLLNRTMATAALAASPAPVSNLQGPYLASGDQPLERATGEHASMHEYPGELGQPPGLYPSSHPPGRAGT LRALSRQDTFDADTPGSRNSAYTELGDSCVDMETDPSEGPGLGDPAGGGTPPARQGSWEDEEEDYEEELT DNRNRGRNKARYCAEGGGPVLGRNKNELEGWGRGVYIR TRTRPLEQKLISEEDLAANDILDYKDDDDKV |
Chromatograms |
Chromatograms
![]() Sequencher program is needed, download here |
Restriction Sites |
SgfI-MluI Cloning Scheme for this gene
Plasmid Map
![]() |
ACCN | NM_000723 |
ORF Size | 1794 bp |
OTI Disclaimer | The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info |
OTI Annotation | This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene. |
Components | The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water). |
Reconstitution Method | 1. Centrifuge at 5,000xg for 5min. 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA. 3. Close the tube and incubate for 10 minutes at room temperature. 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom. 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C. |
Note | Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required. |
Shipping | Ambient |
Reference Data | |
RefSeq | NM_000723.5 |
RefSeq Size | 3687 bp |
RefSeq ORF | 1797 bp |
Locus ID | 782 |
UniProt ID | Q02641 |
Cytogenetics | 17q12 |
Domains | Ca_channel_B, GuKc, SH3 |
Protein Families | Druggable Genome, Ion Channels: Other |
Protein Pathways | Arrhythmogenic right ventricular cardiomyopathy (ARVC), Cardiac muscle contraction, Dilated cardiomyopathy, Hypertrophic cardiomyopathy (HCM), MAPK signaling pathway |
MW | 65.5 kDa |
Summary | The protein encoded by this gene belongs to the calcium channel beta subunit family. It plays an important role in the calcium channel by modulating G protein inhibition, increasing peak calcium current, controlling the alpha-1 subunit membrane targeting and shifting the voltage dependence of activation and inactivation. Alternative splicing occurs at this locus and three transcript variants encoding three distinct isoforms have been identified. [provided by RefSeq, Jul 2008] |
Write Your Own Review
Product Manuals |
FAQs |
SDS |
SKU | Description | Size | Price | |
---|---|---|---|---|
RC207230L1 | Lenti ORF clone of Human calcium channel, voltage-dependent, beta 1 subunit (CACNB1), transcript variant 1, Myc-DDK-tagged | 10 ug |
$857.00
|
|
RC207230L2 | Lenti ORF clone of Human calcium channel, voltage-dependent, beta 1 subunit (CACNB1), transcript variant 1, mGFP tagged | 10 ug |
$857.00
|
|
RC207230L3 | Lenti ORF clone of Human calcium channel, voltage-dependent, beta 1 subunit (CACNB1), transcript variant 1, Myc-DDK-tagged | 10 ug |
$857.00
|
|
RC207230L4 | Lenti ORF clone of Human calcium channel, voltage-dependent, beta 1 subunit (CACNB1), transcript variant 1, mGFP tagged | 10 ug |
$857.00
|
|
RG207230 | CACNB1 (tGFP-tagged) - Human calcium channel, voltage-dependent, beta 1 subunit (CACNB1), transcript variant 1 | 10 ug |
$489.00
MSRP
$757.00
MSRP
$757.00
|
|
SC123891 | CACNB1 (untagged)-Human calcium channel, voltage-dependent, beta 1 subunit (CACNB1), transcript variant 1 | 10 ug |
$558.00
|
|
