ERp57 (PDIA3) (NM_005313) Human Tagged ORF Clone

SKU RC205940

PDIA3 (Myc-DDK-tagged)-Human protein disulfide isomerase family A, member 3 (PDIA3)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: ERp57
• Synonyms: ER60; ERp57; ERp60; ERp61; GRP57; GRP58; HEL-S-93n; HEL-S-269; HsT17083; P58; PI-PLC
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RC205940 representing NM_005313; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCGCCTCCGCCGCCTAGCGCTGTTCCCGGGTGTGGCGCTGCTTCTTGCCGCGGCCCGCCTCGCCGCTG; CCTCCGACGTGCTAGAACTCACGGACGACAACTTCGAGAGTCGCATCTCCGACACGGGCTCTGCGGGCCT; CATGCTCGTCGAGTTCTTCGCTCCCTGGTGTGGACACTGCAAGAGACTTGCACCTGAGTATGAAGCTGCA; GCTACCAGATTAAAAGGAATAGTCCCATTAGCAAAGGTTGATTGCACTGCCAACACTAACACCTGTAATA; AATATGGAGTCAGTGGATATCCAACCCTGAAGATATTTAGAGATGGTGAAGAAGCAGGTGCTTATGATGG; ACCTAGGACTGCTGATGGAATTGTCAGCCACTTGAAGAAGCAGGCAGGACCAGCTTCAGTGCCTCTCAGG; ACTGAGGAAGAATTTAAGAAATTCATTAGTGATAAAGATGCCTCTATAGTAGGTTTTTTCGATGATTCAT; TCAGTGAGGCTCACTCCGAGTTCCTAAAAGCAGCCAGCAACTTGAGGGATAACTACCGATTTGCACATAC; GAATGTTGAGTCTCTGGTGAACGAGTATGATGATAATGGAGAGGGTATCATCTTATTTCGTCCTTCACAT; CTCACTAACAAGTTTGAGGACAAGACTGTGGCATATACAGAGCAAAAAATGACCAGTGGCAAAATTAAAA; AGTTTATCCAGGAAAACATTTTTGGTATCTGCCCTCACATGACAGAAGACAATAAAGATTTGATACAGGG; CAAGGACTTACTTATTGCTTACTATGATGTGGACTATGAAAAGAACGCTAAAGGTTCCAACTACTGGAGA; AACAGGGTAATGATGGTGGCAAAGAAATTCCTGGATGCTGGGCACAAACTCAACTTTGCTGTAGCTAGCC; GCAAAACCTTTAGCCATGAACTTTCTGATTTTGGCTTGGAGAGCACTGCTGGAGAGATTCCTGTTGTTGC; TATCAGAACTGCTAAAGGAGAGAAGTTTGTCATGCAGGAGGAGTTCTCGCGTGATGGGAAGGCTCTGGAG; AGGTTCCTGCAGGATTACTTTGATGGCAATCTGAAGAGATACCTGAAGTCTGAACCTATCCCAGAGAGCA; ATGATGGGCCTGTGAAGGTAGTGGTAGCAGAGAATTTTGATGAAATAGTGAATAATGAAAATAAAGATGT; GCTGATTGAATTTTATGCCCCTTGGTGTGGTCATTGTAAGAACCTGGAGCCCAAGTATAAAGAACTTGGC; GAGAAGCTCAGCAAAGACCCAAATATCGTCATAGCCAAGATGGATGCCACAGCCAATGATGTGCCTTCTC; CATATGAAGTCAGAGGTTTTCCTACCATATACTTCTCTCCAGCCAACAAGAAGCTAAATCCAAAGAAATA; TGAAGGTGGCCGTGAATTAAGTGATTTTATTAGCTATCTACAAAGAGAAGCTACAAACCCCCCTGTAATT; CAAGAAGAAAAACCCAAGAAGAAGAAGAAGGCACAGGAGGATCTC; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC205940 representing NM_005313; Red=Cloning site Green=Tags(s); ; MRLRRLALFPGVALLLAAARLAAASDVLELTDDNFESRISDTGSAGLMLVEFFAPWCGHCKRLAPEYEAA; ATRLKGIVPLAKVDCTANTNTCNKYGVSGYPTLKIFRDGEEAGAYDGPRTADGIVSHLKKQAGPASVPLR; TEEEFKKFISDKDASIVGFFDDSFSEAHSEFLKAASNLRDNYRFAHTNVESLVNEYDDNGEGIILFRPSH; LTNKFEDKTVAYTEQKMTSGKIKKFIQENIFGICPHMTEDNKDLIQGKDLLIAYYDVDYEKNAKGSNYWR; NRVMMVAKKFLDAGHKLNFAVASRKTFSHELSDFGLESTAGEIPVVAIRTAKGEKFVMQEEFSRDGKALE; RFLQDYFDGNLKRYLKSEPIPESNDGPVKVVVAENFDEIVNNENKDVLIEFYAPWCGHCKNLEPKYKELG; EKLSKDPNIVIAKMDATANDVPSPYEVRGFPTIYFSPANKKLNPKKYEGGRELSDFISYLQREATNPPVI; QEEKPKKKKKAQEDL; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here

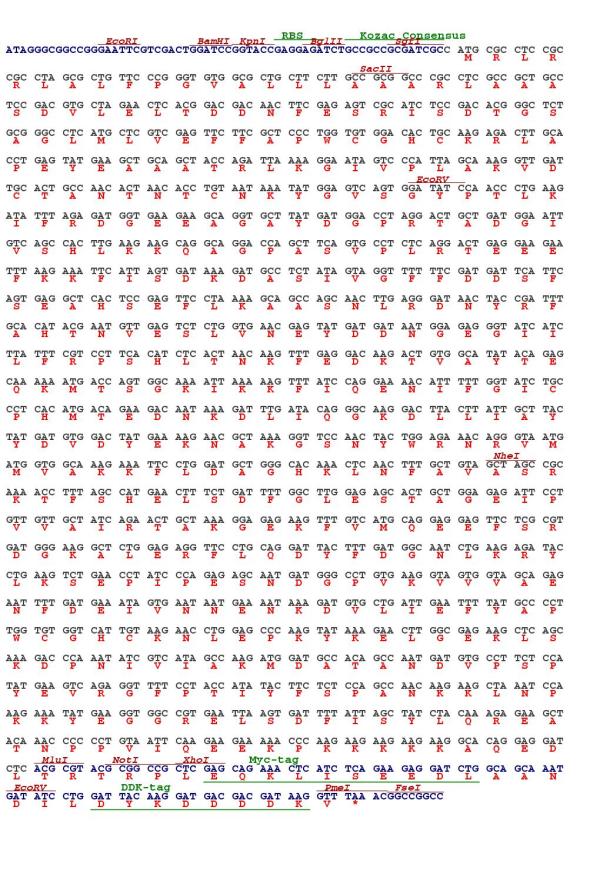

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_005313
• ORF Size: 1515 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_005313.5
• RefSeq Size: 3060 bp
• RefSeq ORF: 1518 bp
• Locus ID: 2923
• UniProt ID: P30101
• Cytogenetics: 15q15.3
• Domains: thiored
• Protein Families: Druggable Genome
• Protein Pathways: Antigen processing and presentation
• MW: 56.78 kDa
• Summary: This gene encodes a protein of the endoplasmic reticulum that interacts with lectin chaperones calreticulin and calnexin to modulate folding of newly synthesized glycoproteins. The protein was once thought to be a phospholipase; however, it has been demonstrated that the protein actually has protein disulfide isomerase activity. It is thought that complexes of lectins and this protein mediate protein folding by promoting formation of disulfide bonds in their glycoprotein substrates. This protein also functions as a molecular chaperone that prevents the formation of protein aggregates. [provided by RefSeq, Dec 2016]
