HLA DM (HLA-DMA) (NM_006120) Human Tagged ORF Clone

SKU RC203106

HLA (Myc-DDK-tagged)-Human major histocompatibility complex, class II, DM alpha (HLA-DMA)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: HLA DM
• Synonyms: D6S222E; DMA; HLADM; RING6
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

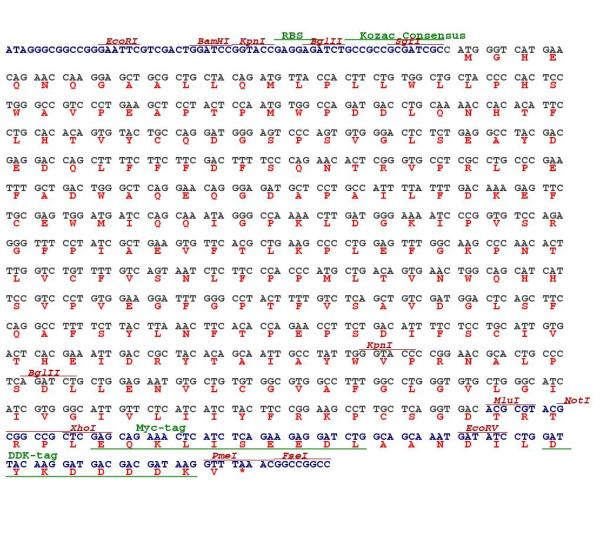

  >RC203106 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGGTCATGAACAGAACCAAGGAGCTGCGCTGCTACAGATGTTACCACTTCTGTGGCTGCTACCCCACT; CCTGGGCCGTCCCTGAAGCTCCTACTCCAATGTGGCCAGATGACCTGCAAAACCACACATTCCTGCACAC; AGTGTACTGCCAGGATGGGAGTCCCAGTGTGGGACTCTCTGAGGCCTACGACGAGGACCAGCTTTTCTTC; TTCGACTTTTCCCAGAACACTCGGGTGCCTCGCCTGCCCGAATTTGCTGACTGGGCTCAGGAACAGGGAG; ATGCTCCTGCCATTTTATTTGACAAAGAGTTCTGCGAGTGGATGATCCAGCAAATAGGGCCAAAACTTGA; TGGGAAAATCCCGGTGTCCAGAGGGTTTCCTATCGCTGAAGTGTTCACGCTGAAGCCCCTGGAGTTTGGC; AAGCCCAACACTTTGGTCTGTTTTGTCAGTAATCTCTTCCCACCCATGCTGACAGTGAACTGGCAGCATC; ATTCCGTCCCTGTGGAAGGATTTGGGCCTACTTTTGTCTCAGCTGTCGATGGACTCAGCTTCCAGGCCTT; TTCTTACTTAAACTTCACACCAGAACCTTCTGACATTTTCTCCTGCATTGTGACTCACGAAATTGACCGC; TACACAGCAATTGCCTATTGGGTACCCCGGAACGCACTGCCCTCAGATCTGCTGGAGAATGTGCTGTGTG; GCGTGGCCTTTGGCCTGGGTGTGCTGGGCATCATCGTGGGCATTGTTCTCATCATCTACTTCCGGAAGCC; TTGCTCAGGTGAC; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC203106 protein sequence; Red=Cloning site Green=Tags(s); ; MGHEQNQGAALLQMLPLLWLLPHSWAVPEAPTPMWPDDLQNHTFLHTVYCQDGSPSVGLSEAYDEDQLFF; FDFSQNTRVPRLPEFADWAQEQGDAPAILFDKEFCEWMIQQIGPKLDGKIPVSRGFPIAEVFTLKPLEFG; KPNTLVCFVSNLFPPMLTVNWQHHSVPVEGFGPTFVSAVDGLSFQAFSYLNFTPEPSDIFSCIVTHEIDR; YTAIAYWVPRNALPSDLLENVLCGVAFGLGVLGIIVGIVLIIYFRKPCSGD; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_006120
• ORF Size: 783 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_006120.4
• RefSeq Size: 1122 bp
• RefSeq ORF: 786 bp
• Locus ID: 3108
• Cytogenetics: 6p21.32
• Domains: ig, IGc1, MHC_II_alpha
• Protein Families: Transmembrane
• Protein Pathways: Allograft rejection, Antigen processing and presentation, Asthma, Autoimmune thyroid disease, Cell adhesion molecules (CAMs), Graft-versus-host disease, Systemic lupus erythematosus, Type I diabetes mellitus, Viral myocarditis
• MW: 29.2 kDa
• Summary: HLA-DMA belongs to the HLA class II alpha chain paralogues. This class II molecule is a heterodimer consisting of an alpha (DMA) and a beta chain (DMB), both anchored in the membrane. It is located in intracellular vesicles. DM plays a central role in the peptide loading of MHC class II molecules by helping to release the CLIP molecule from the peptide binding site. Class II molecules are expressed in antigen presenting cells (APC: B lymphocytes, dendritic cells, macrophages). The alpha chain is approximately 33-35 kDa and its gene contains 5 exons. Exon one encodes the leader peptide, exons 2 and 3 encode the two extracellular domains, exon 4 encodes the transmembrane domain and the cytoplasmic tail. [provided by RefSeq, Jul 2008]
