Lipoamide Dehydrogenase (DLD) (NM_000108) Human Tagged ORF Clone

SKU RC200639

DLD (Myc-DDK-tagged)-Human dihydrolipoamide dehydrogenase (DLD)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Lipoamide Dehydrogenase
• Synonyms: DLDD; DLDH; E3; GCSL; LAD; OGDC-E3; PHE3
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

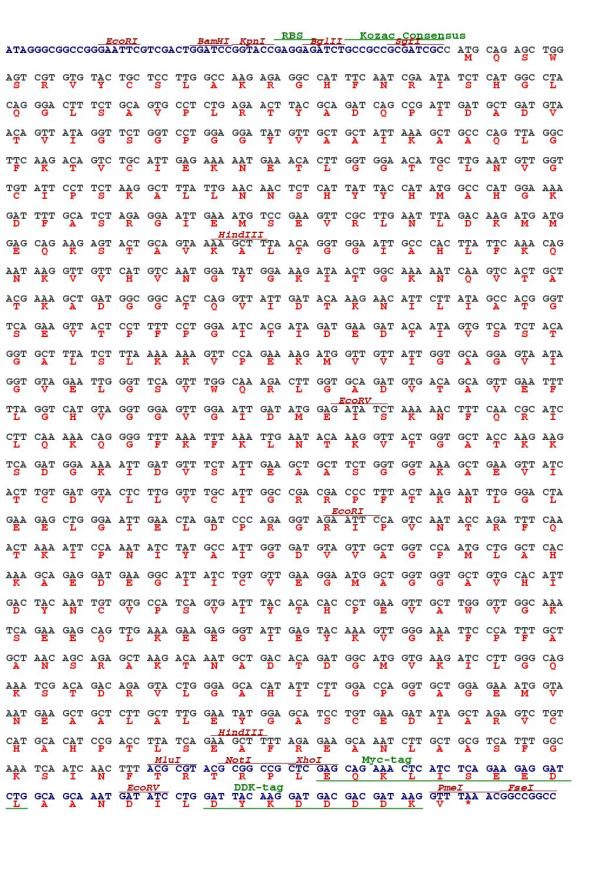

  ORF Nucleotide Sequence

  >RC200639 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCAGAGCTGGAGTCGTGTGTACTGCTCCTTGGCCAAGAGAGGCCATTTCAATCGAATATCTCATGGCC; TACAGGGACTTTCTGCAGTGCCTCTGAGAACTTACGCAGATCAGCCGATTGATGCTGATGTAACAGTTAT; AGGTTCTGGTCCTGGAGGATATGTTGCTGCTATTAAAGCTGCCCAGTTAGGCTTCAAGACAGTCTGCATT; GAGAAAAATGAAACACTTGGTGGAACATGCTTGAATGTTGGTTGTATTCCTTCTAAGGCTTTATTGAACA; ACTCTCATTATTACCATATGGCCCATGGAAAAGATTTTGCATCTAGAGGAATTGAAATGTCCGAAGTTCG; CTTGAATTTAGACAAGATGATGGAGCAGAAGAGTACTGCAGTAAAAGCTTTAACAGGTGGAATTGCCCAC; TTATTCAAACAGAATAAGGTTGTTCATGTCAATGGATATGGAAAGATAACTGGCAAAAATCAAGTCACTG; CTACGAAAGCTGATGGCGGCACTCAGGTTATTGATACAAAGAACATTCTTATAGCCACGGGTTCAGAAGT; TACTCCTTTTCCTGGAATCACGATAGATGAAGATACAATAGTGTCATCTACAGGTGCTTTATCTTTAAAA; AAAGTTCCAGAAAAGATGGTTGTTATTGGTGCAGGAGTAATAGGTGTAGAATTGGGTTCAGTTTGGCAAA; GACTTGGTGCAGATGTGACAGCAGTTGAATTTTTAGGTCATGTAGGTGGAGTTGGAATTGATATGGAGAT; ATCTAAAAACTTTCAACGCATCCTTCAAAAACAGGGGTTTAAATTTAAATTGAATACAAAGGTTACTGGT; GCTACCAAGAAGTCAGATGGAAAAATTGATGTTTCTATTGAAGCTGCTTCTGGTGGTAAAGCTGAAGTTA; TCACTTGTGATGTACTCTTGGTTTGCATTGGCCGACGACCCTTTACTAAGAATTTGGGACTAGAAGAGCT; GGGAATTGAACTAGATCCCAGAGGTAGAATTCCAGTCAATACCAGATTTCAAACTAAAATTCCAAATATC; TATGCCATTGGTGATGTAGTTGCTGGTCCAATGCTGGCTCACAAAGCAGAGGATGAAGGCATTATCTGTG; TTGAAGGAATGGCTGGTGGTGCTGTGCACATTGACTACAATTGTGTGCCATCAGTGATTTACACACACCC; TGAAGTTGCTTGGGTTGGCAAATCAGAAGAGCAGTTGAAAGAAGAGGGTATTGAGTACAAAGTTGGGAAA; TTCCCATTTGCTGCTAACAGCAGAGCTAAGACAAATGCTGACACAGATGGCATGGTGAAGATCCTTGGGC; AGAAATCGACAGACAGAGTACTGGGAGCACATATTCTTGGACCAGGTGCTGGAGAAATGGTAAATGAAGC; TGCTCTTGCTTTGGAATATGGAGCATCCTGTGAAGATATAGCTAGAGTCTGTCATGCACATCCGACCTTA; TCAGAAGCTTTTAGAGAAGCAAATCTTGCTGCGTCATTTGGCAAATCAATCAACTTT; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC200639 protein sequence; Red=Cloning site Green=Tags(s); ; MQSWSRVYCSLAKRGHFNRISHGLQGLSAVPLRTYADQPIDADVTVIGSGPGGYVAAIKAAQLGFKTVCI; EKNETLGGTCLNVGCIPSKALLNNSHYYHMAHGKDFASRGIEMSEVRLNLDKMMEQKSTAVKALTGGIAH; LFKQNKVVHVNGYGKITGKNQVTATKADGGTQVIDTKNILIATGSEVTPFPGITIDEDTIVSSTGALSLK; KVPEKMVVIGAGVIGVELGSVWQRLGADVTAVEFLGHVGGVGIDMEISKNFQRILQKQGFKFKLNTKVTG; ATKKSDGKIDVSIEAASGGKAEVITCDVLLVCIGRRPFTKNLGLEELGIELDPRGRIPVNTRFQTKIPNI; YAIGDVVAGPMLAHKAEDEGIICVEGMAGGAVHIDYNCVPSVIYTHPEVAWVGKSEEQLKEEGIEYKVGK; FPFAANSRAKTNADTDGMVKILGQKSTDRVLGAHILGPGAGEMVNEAALALEYGASCEDIARVCHAHPTL; SEAFREANLAASFGKSINF; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000108
• ORF Size: 1527 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000108.5
• RefSeq Size: 3613 bp
• RefSeq ORF: 1530 bp
• Locus ID: 1738
• UniProt ID: P09622
• Cytogenetics: 7q31.1
• Domains: pyr_redox, pyr_redox_dim
• Protein Families: Druggable Genome
• Protein Pathways: Citrate cycle (TCA cycle), Glycine, Glycolysis / Gluconeogenesis, leucine and isoleucine degradation, Metabolic pathways, Pyruvate metabolism, serine and threonine metabolism, Valine
• MW: 54.2 kDa
• Summary: This gene encodes a member of the class-I pyridine nucleotide-disulfide oxidoreductase family. The encoded protein has been identified as a moonlighting protein based on its ability to perform mechanistically distinct functions. In homodimeric form, the encoded protein functions as a dehydrogenase and is found in several multi-enzyme complexes that regulate energy metabolism. However, as a monomer, this protein can function as a protease. Mutations in this gene have been identified in patients with E3-deficient maple syrup urine disease and lipoamide dehydrogenase deficiency. Alternative splicing results in multiple transcript variants. [provided by RefSeq, Jan 2014]
