Pdx1 (NM_022852) Rat Tagged ORF Clone

SKU RR215611

Pdx1 (Myc-DDK-tagged ORF) - Rat pancreatic and duodenal homeobox 1 (Pdx1), (10 ug)

Product Data

• Type: Rat Tagged ORF Clone
• Target Symbol: Pdx1
• Synonyms: Idx1; Ipf1; Stf1
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

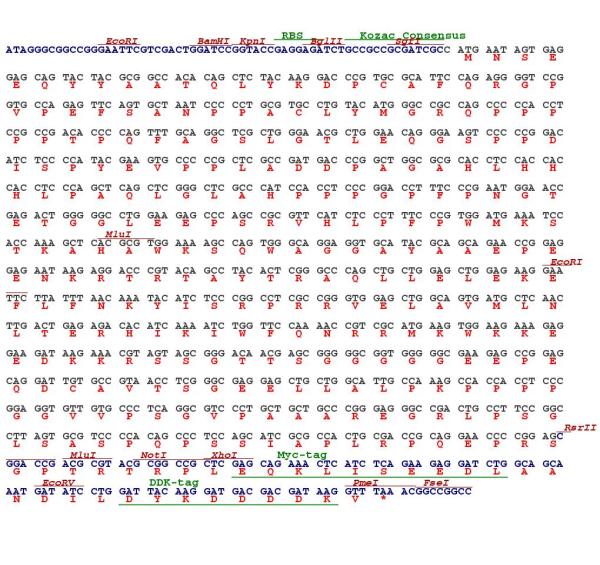

  ORF Nucleotide Sequence

  >RR215611 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGAATAGTGAGGAGCAGTACTACGCGGCCACACAGCTCTACAAGGACCCGTGCGCATTCCAGAGGGGTC; CGGTGCCAGAGTTCAGTGCTAATCCCCCTGCGTGCCTGTACATGGGCCGCCAGCCCCCACCTCCGCCGAC; ACCCCAGTTTGCAGGCTCGCTGGGAACGCTGGAACAGGGAAGTCCCCCGGACATCTCCCCATACGAAGTG; CCCCCGCTCGCCGATGACCCGGCTGGCGCGCACCTCCACCACCACCTCCCAGCTCAGCTCGGGCTCGCCC; ATCCACCTCCCGGACCTTTCCCGAATGGAACCGAGACTGGGGGCCTGGAAGAGCCCAGCCGCGTTCATCT; CCCTTTCCCGTGGATGAAATCCACCAAAGCTCACGCGTGGAAAAGCCAGTGGGCAGGAGGTGCATACGCA; GCAGAACCGGAGGAGAATAAGAGGACCCGTACAGCCTACACTCGGGCCCAGCTGCTGGAGCTGGAGAAGG; AATTCTTATTTAACAAATACATCTCCCGGCCTCGCCGGGTGGAGCTGGCAGTGATGCTCAACTTGACTGA; GAGACACATCAAAATCTGGTTCCAAAACCGTCGCATGAAGTGGAAGAAAGAGGAAGATAAGAAACGTAGT; AGCGGGACAACGAGCGGGGGCGGTGGGGGCGAAGAGCCGGAGCAGGATTGTGCCGTAACCTCGGGCGAGG; AGCTGCTGGCATTGCCAAAGCCACCACCTCCCGGAGGTGTTGTGCCCTCAGGCGTCCCTGCTGCTGCCCG; GGAGGGCCGACTGCCTTCCGGCCTTAGTGCGTCCCCACAGCCCTCCAGCATCGCGCCACTGCGACCGCAG; GAACCCCGG; ; AGCGGACCGACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCC; TGGATTACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RR215611 protein sequence; Red=Cloning site Green=Tags(s); ; MNSEEQYYAATQLYKDPCAFQRGPVPEFSANPPACLYMGRQPPPPPTPQFAGSLGTLEQGSPPDISPYEV; PPLADDPAGAHLHHHLPAQLGLAHPPPGPFPNGTETGGLEEPSRVHLPFPWMKSTKAHAWKSQWAGGAYA; AEPEENKRTRTAYTRAQLLELEKEFLFNKYISRPRRVELAVMLNLTERHIKIWFQNRRMKWKKEEDKKRS; SGTTSGGGGGEEPEQDCAVTSGEELLALPKPPPPGGVVPSGVPAAAREGRLPSGLSASPQPSSIAPLRPQ; EPR; ; SGPTRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Restriction Sites: SgfI-RsrII Cloning Scheme for this gene Plasmid Map
• ACCN: NM_022852
• ORF Size: 849 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_022852.3, NP_074043.3
• RefSeq Size: 1403 bp
• RefSeq ORF: 852 bp
• Locus ID: 29535
• UniProt ID: P52947
• Cytogenetics: 12p11
• MW: 30.9 kDa
• Summary: Activates insulin and somatostatin gene transcription. Key regulator of islet peptide hormone expression but also responsible for the development of the pancreas, most probably by determining maturation and differentiation of common pancreatic precursor cells in the developing gut. As part of a PDX1:PBX1b:MEIS2b complex in pancreatic acinar cells is involved in the transcriptional activation of the ELA1 enhancer; the complex binds to the enhancer B element and cooperates with the transcription factor 1 complex (PTF1) bound to the enhancer A element. Binds the DNA sequence 5'-CC[CT]TAATGGG-3'.[UniProtKB/Swiss-Prot Function]
