SHTN1 (NM_001127211) Human Tagged ORF Clone

SKU RG226044

KIAA1598 (tGFP-tagged) - Human KIAA1598 (KIAA1598), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: SHTN1
• Synonyms: KIAA1598; shootin-1
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

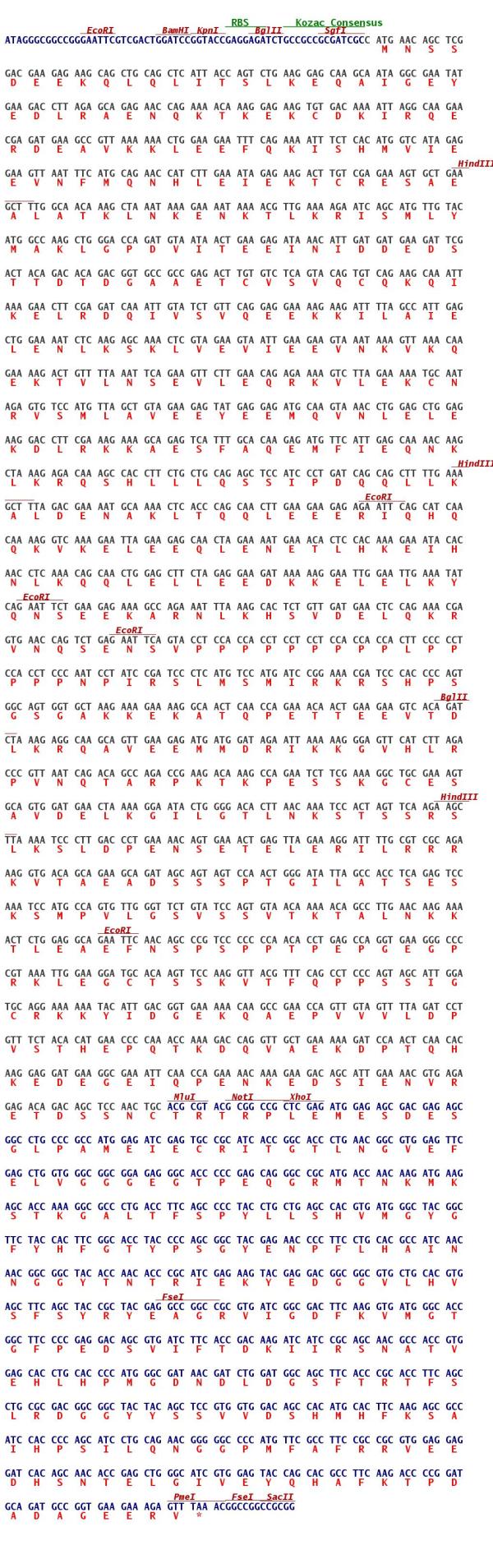

  ORF Nucleotide Sequence

  >RG226044 representing NM_001127211; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGAACAGCTCGGACGAAGAGAAGCAGCTGCAGCTCATTACCAGTCTGAAGGAGCAAGCAATAGGCGAAT; ATGAAGACCTTAGAGCAGAGAACCAGAAAACAAAGGAGAAGTGTGACAAAATTAGGCAAGAACGAGATGA; AGCCGTTAAAAAACTGGAAGAATTTCAGAAAATTTCTCACATGGTCATAGAGGAAGTTAATTTCATGCAG; AACCATCTTGAAATAGAGAAGACTTGTCGAGAAAGTGCTGAAGCTTTGGCAACAAAGCTAAATAAAGAAA; ATAAAACGTTGAAAAGAATCAGCATGTTGTACATGGCCAAGCTGGGACCAGATGTAATAACTGAAGAGAT; AAACATTGATGATGAAGATTCGACTACAGACACAGACGGTGCCGCCGAGACTTGTGTCTCAGTACAGTGT; CAGAAGCAAATTAAAGAACTTCGAGATCAAATTGTATCTGTTCAGGAGGAAAAGAAGATTTTAGCCATTG; AGCTGGAAAATCTCAAGAGCAAACTCGTAGAAGTAATTGAAGAAGTAAATAAAGTTAAACAAGAAAAGAC; TGTTTTAAATTCAGAAGTTCTTGAACAGAGAAAAGTCTTAGAAAAATGCAATAGAGTGTCCATGTTAGCT; GTAGAAGAGTATGAGGAGATGCAAGTAAACCTGGAGCTGGAGAAGGACCTTCGAAAGAAAGCAGAGTCAT; TTGCACAAGAGATGTTCATTGAGCAAAACAAGCTAAAGAGACAAAGCCACCTTCTGCTGCAGAGCTCCAT; CCCTGATCAGCAGCTTTTGAAAGCTTTAGACGAAAATGCAAAACTCACCCAGCAACTTGAAGAAGAGAGA; ATTCAGCATCAACAAAAGGTCAAAGAATTAGAAGAGCAACTAGAAAATGAAACACTCCACAAAGAAATAC; ACAACCTCAAACAGCAACTGGAGCTTCTAGAGGAAGATAAAAAGGAATTGGAATTGAAATATCAGAATTC; TGAAGAGAAAGCCAGAAATTTAAAGCACTCTGTTGATGAACTCCAGAAACGAGTGAACCAGTCTGAGAAT; TCAGTACCTCCACCACCTCCTCCTCCACCACCACTTCCCCCTCCACCTCCCAATCCTATCCGATCCCTCA; TGTCCATGATCCGGAAACGATCCCACCCCAGTGGCAGTGGTGCTAAGAAAGAAAAGGCAACTCAACCAGA; AACAACTGAAGAAGTCACAGATCTAAAGAGGCAAGCAGTTGAAGAGATGATGGATAGAATTAAAAAGGGA; GTTCATCTTAGACCCGTTAATCAGACAGCCAGACCGAAGACAAAGCCAGAATCTTCGAAAGGCTGCGAAA; GTGCAGTGGATGAACTAAAAGGAATACTGGGGACACTTAACAAATCCACTAGTTCAAGAAGCTTAAAATC; CCTTGACCCTGAAAACAGTGAAACTGAGTTAGAAAGGATTTTGCGTCGCAGAAAGGTGACAGCAGAAGCA; GATAGCAGTAGTCCAACTGGGATATTAGCCACCTCAGAGTCCAAATCCATGCCAGTGTTGGGTTCTGTAT; CCAGTGTAACAAAAACAGCCTTGAACAAGAAAACTCTGGAGGCAGAATTCAACAGCCCGTCCCCCCCAAC; ACCTGAGCCAGGTGAAGGGCCCCGTAAATTGGAAGGATGCACAAGTTCCAAGGTTACGTTTCAGCCTCCC; AGTAGCATTGGATGCAGGAAAAAATACATTGACGGTGAAAAACAAGCCGAACCAGTTGTAGTTTTAGATC; CTGTTTCTACACATGAACCCCAAACCAAAGACCAGGTTGCTGAAAAAGATCCAACTCAACACAAGGAGGA; TGAAGGCGAAATTCAACCAGAAAACAAAGAAGACAGCATTGAAAACGTGAGAGAGACAGACAGCTCCAAC; TGC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG226044 representing NM_001127211; Red=Cloning site Green=Tags(s); ; MNSSDEEKQLQLITSLKEQAIGEYEDLRAENQKTKEKCDKIRQERDEAVKKLEEFQKISHMVIEEVNFMQ; NHLEIEKTCRESAEALATKLNKENKTLKRISMLYMAKLGPDVITEEINIDDEDSTTDTDGAAETCVSVQC; QKQIKELRDQIVSVQEEKKILAIELENLKSKLVEVIEEVNKVKQEKTVLNSEVLEQRKVLEKCNRVSMLA; VEEYEEMQVNLELEKDLRKKAESFAQEMFIEQNKLKRQSHLLLQSSIPDQQLLKALDENAKLTQQLEEER; IQHQQKVKELEEQLENETLHKEIHNLKQQLELLEEDKKELELKYQNSEEKARNLKHSVDELQKRVNQSEN; SVPPPPPPPPPLPPPPPNPIRSLMSMIRKRSHPSGSGAKKEKATQPETTEEVTDLKRQAVEEMMDRIKKG; VHLRPVNQTARPKTKPESSKGCESAVDELKGILGTLNKSTSSRSLKSLDPENSETELERILRRRKVTAEA; DSSSPTGILATSESKSMPVLGSVSSVTKTALNKKTLEAEFNSPSPPTPEPGEGPRKLEGCTSSKVTFQPP; SSIGCRKKYIDGEKQAEPVVVLDPVSTHEPQTKDQVAEKDPTQHKEDEGEIQPENKEDSIENVRETDSSN; C; ; TRTRPLE - GFP Tag - V

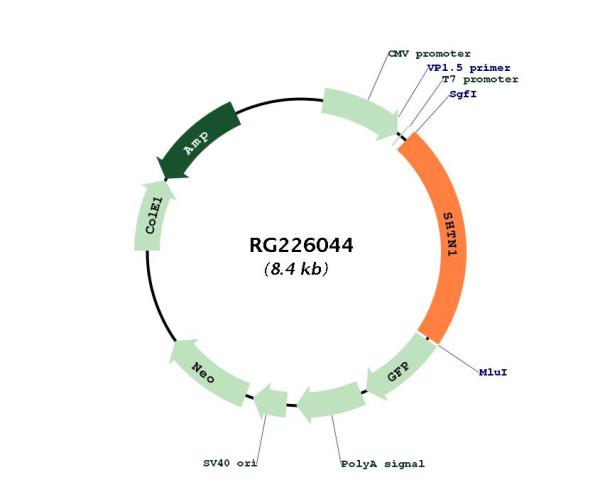

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001127211
• ORF Size: 1893 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001127211.3
• RefSeq Size: 3950 bp
• RefSeq ORF: 1896 bp
• Locus ID: 57698
• UniProt ID: A0MZ66
• Cytogenetics: 10q25.3
• Summary: Involved in the generation of internal asymmetric signals required for neuronal polarization and neurite outgrowth. Mediates netrin-1-induced F-actin-substrate coupling or 'clutch engagement' within the axon growth cone through activation of CDC42, RAC1 and PAK1-dependent signaling pathway, thereby converting the F-actin retrograde flow into traction forces, concomitantly with filopodium extension and axon outgrowth. Plays a role in cytoskeletal organization by regulating the subcellular localization of phosphoinositide 3-kinase (PI3K) activity at the axonal growth cone. Plays also a role in regenerative neurite outgrowth. In the developing cortex, cooperates with KIF20B to promote both the transition from the multipolar to the bipolar stage and the radial migration of cortical neurons from the ventricular zone toward the superficial layer of the neocortex. Involved in the accumulation of phosphatidylinositol 3,4,5-trisphosphate (PIP3) in the growth cone of primary hippocampal neurons.[UniProtKB/Swiss-Prot Function]
