TLR4 (NM_138554) Human Tagged ORF Clone

SKU RG222820

TLR4 (tGFP-tagged) - Human toll-like receptor 4 (TLR4), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: TLR4
• Synonyms: ARMD10; CD284; TLR-4; TOLL
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

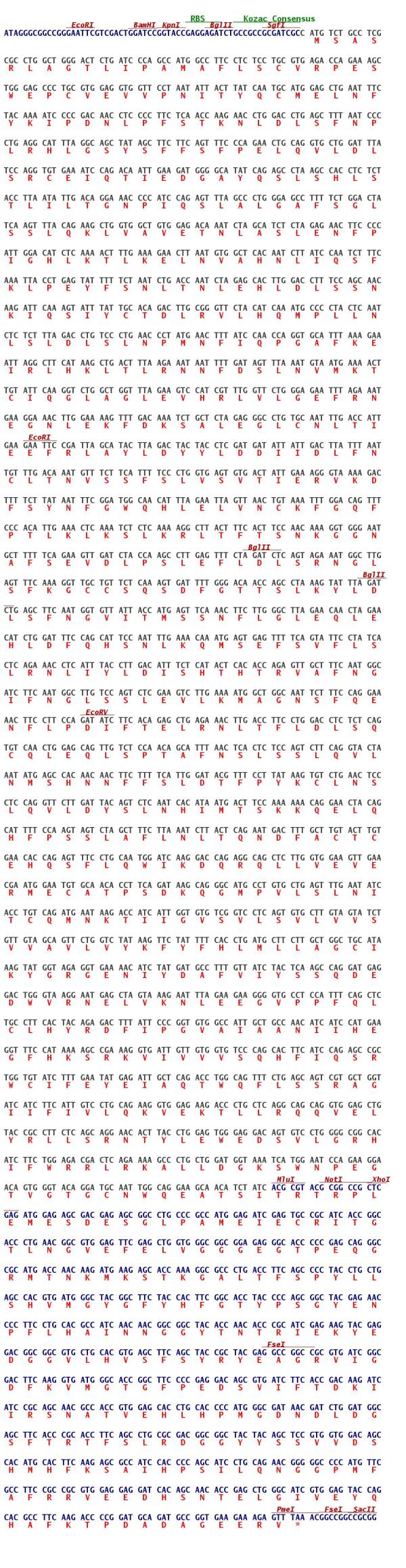

  >RG222820 representing NM_138554; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTCTGCCTCGCGCCTGGCTGGGACTCTGATCCCAGCCATGGCCTTCCTCTCCTGCGTGAGACCAGAAA; GCTGGGAGCCCTGCGTGGAGGTGGTTCCTAATATTACTTATCAATGCATGGAGCTGAATTTCTACAAAAT; CCCCGACAACCTCCCCTTCTCAACCAAGAACCTGGACCTGAGCTTTAATCCCCTGAGGCATTTAGGCAGC; TATAGCTTCTTCAGTTTCCCAGAACTGCAGGTGCTGGATTTATCCAGGTGTGAAATCCAGACAATTGAAG; ATGGGGCATATCAGAGCCTAAGCCACCTCTCTACCTTAATATTGACAGGAAACCCCATCCAGAGTTTAGC; CCTGGGAGCCTTTTCTGGACTATCAAGTTTACAGAAGCTGGTGGCTGTGGAGACAAATCTAGCATCTCTA; GAGAACTTCCCCATTGGACATCTCAAAACTTTGAAAGAACTTAATGTGGCTCACAATCTTATCCAATCTT; TCAAATTACCTGAGTATTTTTCTAATCTGACCAATCTAGAGCACTTGGACCTTTCCAGCAACAAGATTCA; AAGTATTTATTGCACAGACTTGCGGGTTCTACATCAAATGCCCCTACTCAATCTCTCTTTAGACCTGTCC; CTGAACCCTATGAACTTTATCCAACCAGGTGCATTTAAAGAAATTAGGCTTCATAAGCTGACTTTAAGAA; ATAATTTTGATAGTTTAAATGTAATGAAAACTTGTATTCAAGGTCTGGCTGGTTTAGAAGTCCATCGTTT; GGTTCTGGGAGAATTTAGAAATGAAGGAAACTTGGAAAAGTTTGACAAATCTGCTCTAGAGGGCCTGTGC; AATTTGACCATTGAAGAATTCCGATTAGCATACTTAGACTACTACCTCGATGATATTATTGACTTATTTA; ATTGTTTGACAAATGTTTCTTCATTTTCCCTGGTGAGTGTGACTATTGAAAGGGTAAAAGACTTTTCTTA; TAATTTCGGATGGCAACATTTAGAATTAGTTAACTGTAAATTTGGACAGTTTCCCACATTGAAACTCAAA; TCTCTCAAAAGGCTTACTTTCACTTCCAACAAAGGTGGGAATGCTTTTTCAGAAGTTGATCTACCAAGCC; TTGAGTTTCTAGATCTCAGTAGAAATGGCTTGAGTTTCAAAGGTTGCTGTTCTCAAAGTGATTTTGGGAC; AACCAGCCTAAAGTATTTAGATCTGAGCTTCAATGGTGTTATTACCATGAGTTCAAACTTCTTGGGCTTA; GAACAACTAGAACATCTGGATTTCCAGCATTCCAATTTGAAACAAATGAGTGAGTTTTCAGTATTCCTAT; CACTCAGAAACCTCATTTACCTTGACATTTCTCATACTCACACCAGAGTTGCTTTCAATGGCATCTTCAA; TGGCTTGTCCAGTCTCGAAGTCTTGAAAATGGCTGGCAATTCTTTCCAGGAAAACTTCCTTCCAGATATC; TTCACAGAGCTGAGAAACTTGACCTTCCTGGACCTCTCTCAGTGTCAACTGGAGCAGTTGTCTCCAACAG; CATTTAACTCACTCTCCAGTCTTCAGGTACTAAATATGAGCCACAACAACTTCTTTTCATTGGATACGTT; TCCTTATAAGTGTCTGAACTCCCTCCAGGTTCTTGATTACAGTCTCAATCACATAATGACTTCCAAAAAA; CAGGAACTACAGCATTTTCCAAGTAGTCTAGCTTTCTTAAATCTTACTCAGAATGACTTTGCTTGTACTT; GTGAACACCAGAGTTTCCTGCAATGGATCAAGGACCAGAGGCAGCTCTTGGTGGAAGTTGAACGAATGGA; ATGTGCAACACCTTCAGATAAGCAGGGCATGCCTGTGCTGAGTTTGAATATCACCTGTCAGATGAATAAG; ACCATCATTGGTGTGTCGGTCCTCAGTGTGCTTGTAGTATCTGTTGTAGCAGTTCTGGTCTATAAGTTCT; ATTTTCACCTGATGCTTCTTGCTGGCTGCATAAAGTATGGTAGAGGTGAAAACATCTATGATGCCTTTGT; TATCTACTCAAGCCAGGATGAGGACTGGGTAAGGAATGAGCTAGTAAAGAATTTAGAAGAAGGGGTGCCT; CCATTTCAGCTCTGCCTTCACTACAGAGACTTTATTCCCGGTGTGGCCATTGCTGCCAACATCATCCATG; AAGGTTTCCATAAAAGCCGAAAGGTGATTGTTGTGGTGTCCCAGCACTTCATCCAGAGCCGCTGGTGTAT; CTTTGAATATGAGATTGCTCAGACCTGGCAGTTTCTGAGCAGTCGTGCTGGTATCATCTTCATTGTCCTG; CAGAAGGTGGAGAAGACCCTGCTCAGGCAGCAGGTGGAGCTGTACCGCCTTCTCAGCAGGAACACTTACC; TGGAGTGGGAGGACAGTGTCCTGGGGCGGCACATCTTCTGGAGACGACTCAGAAAAGCCCTGCTGGATGG; TAAATCATGGAATCCAGAAGGAACAGTGGGTACAGGATGCAATTGGCAGGAAGCAACATCTATC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG222820 representing NM_138554; Red=Cloning site Green=Tags(s); ; MSASRLAGTLIPAMAFLSCVRPESWEPCVEVVPNITYQCMELNFYKIPDNLPFSTKNLDLSFNPLRHLGS; YSFFSFPELQVLDLSRCEIQTIEDGAYQSLSHLSTLILTGNPIQSLALGAFSGLSSLQKLVAVETNLASL; ENFPIGHLKTLKELNVAHNLIQSFKLPEYFSNLTNLEHLDLSSNKIQSIYCTDLRVLHQMPLLNLSLDLS; LNPMNFIQPGAFKEIRLHKLTLRNNFDSLNVMKTCIQGLAGLEVHRLVLGEFRNEGNLEKFDKSALEGLC; NLTIEEFRLAYLDYYLDDIIDLFNCLTNVSSFSLVSVTIERVKDFSYNFGWQHLELVNCKFGQFPTLKLK; SLKRLTFTSNKGGNAFSEVDLPSLEFLDLSRNGLSFKGCCSQSDFGTTSLKYLDLSFNGVITMSSNFLGL; EQLEHLDFQHSNLKQMSEFSVFLSLRNLIYLDISHTHTRVAFNGIFNGLSSLEVLKMAGNSFQENFLPDI; FTELRNLTFLDLSQCQLEQLSPTAFNSLSSLQVLNMSHNNFFSLDTFPYKCLNSLQVLDYSLNHIMTSKK; QELQHFPSSLAFLNLTQNDFACTCEHQSFLQWIKDQRQLLVEVERMECATPSDKQGMPVLSLNITCQMNK; TIIGVSVLSVLVVSVVAVLVYKFYFHLMLLAGCIKYGRGENIYDAFVIYSSQDEDWVRNELVKNLEEGVP; PFQLCLHYRDFIPGVAIAANIIHEGFHKSRKVIVVVSQHFIQSRWCIFEYEIAQTWQFLSSRAGIIFIVL; QKVEKTLLRQQVELYRLLSRNTYLEWEDSVLGRHIFWRRLRKALLDGKSWNPEGTVGTGCNWQEATSI; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_138554
• ORF Size: 2514 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_138554.2, NP_612564.1
• RefSeq Size: 5503 bp
• RefSeq ORF: 2520 bp
• Locus ID: 7099
• UniProt ID: O00206
• Cytogenetics: 9q33.1
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: Pathogenic Escherichia coli infection, Toll-like receptor signaling pathway
• Summary: The protein encoded by this gene is a member of the Toll-like receptor (TLR) family which plays a fundamental role in pathogen recognition and activation of innate immunity. TLRs are highly conserved from Drosophila to humans and share structural and functional similarities. They recognize pathogen-associated molecular patterns that are expressed on infectious agents, and mediate the production of cytokines necessary for the development of effective immunity. The various TLRs exhibit different patterns of expression. In silico studies have found a particularly strong binding of surface TLR4 with the spike protein of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), the causative agent of Coronavirus disease-2019 (COVID-19). This receptor has also been implicated in signal transduction events induced by lipopolysaccharide (LPS) found in most gram-negative bacteria. Mutations in this gene have been associated with differences in LPS responsiveness, and with susceptibility to age-related macular degeneration. Multiple transcript variants encoding different isoforms have been found for this gene. [provided by RefSeq, Aug 2020]
