SHOX2 (NM_006884) Human Tagged ORF Clone

SKU RG219520

SHOX2 (tGFP-tagged) - Human short stature homeobox 2 (SHOX2), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: SHOX2
• Synonyms: OG12; OG12X; SHOT
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

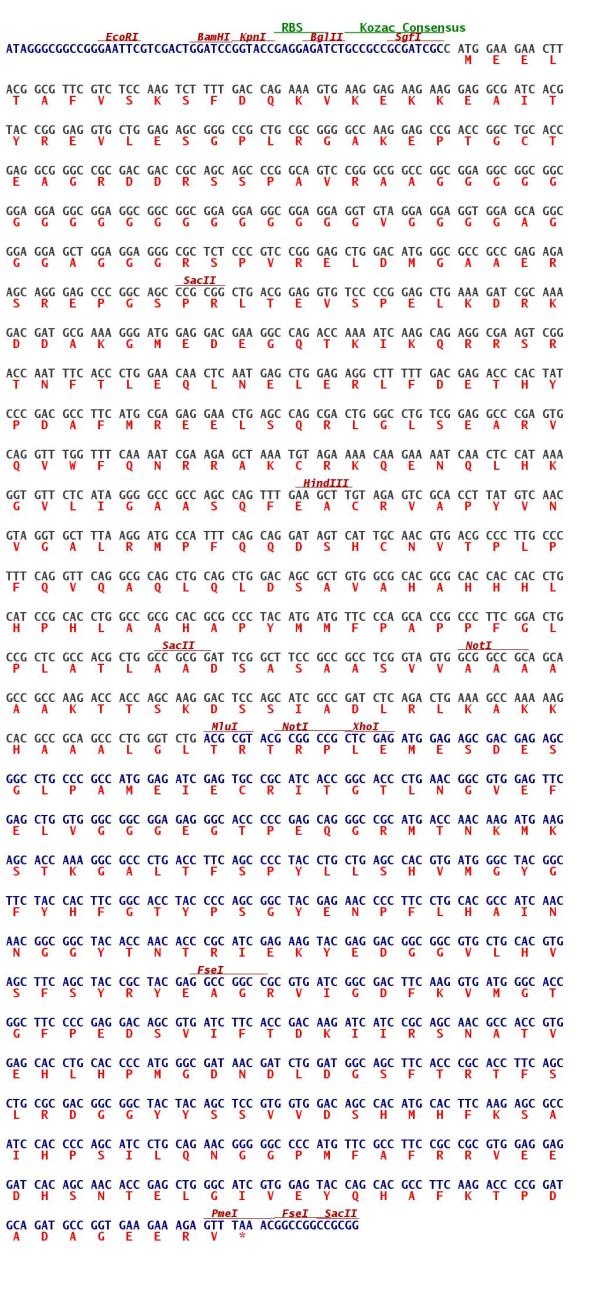

  ORF Nucleotide Sequence

  >RG219520 representing NM_006884; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGAAGAACTTACGGCGTTCGTCTCCAAGTCTTTTGACCAGAAAGTGAAGGAGAAGAAGGAGGCGATCA; CGTACCGGGAGGTGCTGGAGAGCGGGCCGCTGCGCGGGGCCAAGGAGCCGACCGGCTGCACCGAGGCGGG; CCGCGACGACCGCAGCAGCCCGGCAGTCCGGGCGGCCGGCGGAGGCGGCGGCGGAGGAGGCGGAGGCGGC; GGCGGAGGAGGCGGAGGAGGTGTAGGAGGAGGTGGAGCAGGCGGAGGAGCTGGAGGAGGGCGCTCTCCCG; TCCGGGAGCTGGACATGGGCGCCGCCGAGAGAAGCAGGGAGCCCGGCAGCCCGCGGCTGACGGAGGTGTC; CCCGGAGCTGAAAGATCGCAAAGACGATGCGAAAGGGATGGAGGACGAAGGCCAGACCAAAATCAAGCAG; AGGCGAAGTCGGACCAATTTCACCCTGGAACAACTCAATGAGCTGGAGAGGCTTTTTGACGAGACCCACT; ATCCCGACGCCTTCATGCGAGAGGAACTGAGCCAGCGACTGGGCCTGTCGGAGGCCCGAGTGCAGGTTTG; GTTTCAAAATCGAAGAGCTAAATGTAGAAAACAAGAAAATCAACTCCATAAAGGTGTTCTCATAGGGGCC; GCCAGCCAGTTTGAAGCTTGTAGAGTCGCACCTTATGTCAACGTAGGTGCTTTAAGGATGCCATTTCAGC; AGGATAGTCATTGCAACGTGACGCCCTTGCCCTTTCAGGTTCAGGCGCAGCTGCAGCTGGACAGCGCTGT; GGCGCACGCGCACCACCACCTGCATCCGCACCTGGCCGCGCACGCGCCCTACATGATGTTCCCAGCACCG; CCCTTCGGACTGCCGCTCGCCACGCTGGCCGCGGATTCGGCTTCCGCCGCCTCGGTAGTGGCGGCCGCAG; CAGCCGCCAAGACCACCAGCAAGGACTCCAGCATCGCCGATCTCAGACTGAAAGCCAAAAAGCACGCCGC; AGCCCTGGGTCTG; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG219520 representing NM_006884; Red=Cloning site Green=Tags(s); ; MEELTAFVSKSFDQKVKEKKEAITYREVLESGPLRGAKEPTGCTEAGRDDRSSPAVRAAGGGGGGGGGGG; GGGGGGGVGGGGAGGGAGGGRSPVRELDMGAAERSREPGSPRLTEVSPELKDRKDDAKGMEDEGQTKIKQ; RRSRTNFTLEQLNELERLFDETHYPDAFMREELSQRLGLSEARVQVWFQNRRAKCRKQENQLHKGVLIGA; ASQFEACRVAPYVNVGALRMPFQQDSHCNVTPLPFQVQAQLQLDSAVAHAHHHLHPHLAAHAPYMMFPAP; PFGLPLATLAADSASAASVVAAAAAAKTTSKDSSIADLRLKAKKHAAALGL; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_006884
• ORF Size: 993 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_006884.1, NP_006875.1
• RefSeq Size: 1948 bp
• RefSeq ORF: 996 bp
• Locus ID: 6474
• UniProt ID: O60902
• Cytogenetics: 3q25.32
• Protein Families: Transcription Factors
• Summary: This gene is a member of the homeobox family of genes that encode proteins containing a 60-amino acid residue motif that represents a DNA binding domain. Homeobox genes have been characterized extensively as transcriptional regulators involved in pattern formation in both invertebrate and vertebrate species. Several human genetic disorders are caused by aberrations in human homeobox genes. This locus represents a pseudoautosomal homeobox gene that is thought to be responsible for idiopathic short stature, and it is implicated in the short stature phenotype of Turner syndrome patients. This gene is considered to be a candidate gene for Cornelia de Lange syndrome. Alternative splicing results in multiple transcript variants. [provided by RefSeq, Jul 2009]
