CACNB4 (NM_000726) Human Tagged ORF Clone

SKU RG210440

CACNB4 (tGFP-tagged) - Human calcium channel, voltage-dependent, beta 4 subunit (CACNB4), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: CACNB4
• Synonyms: CAB4; CACNLB4; EA5; EIG9; EJM; EJM4; EJM6
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

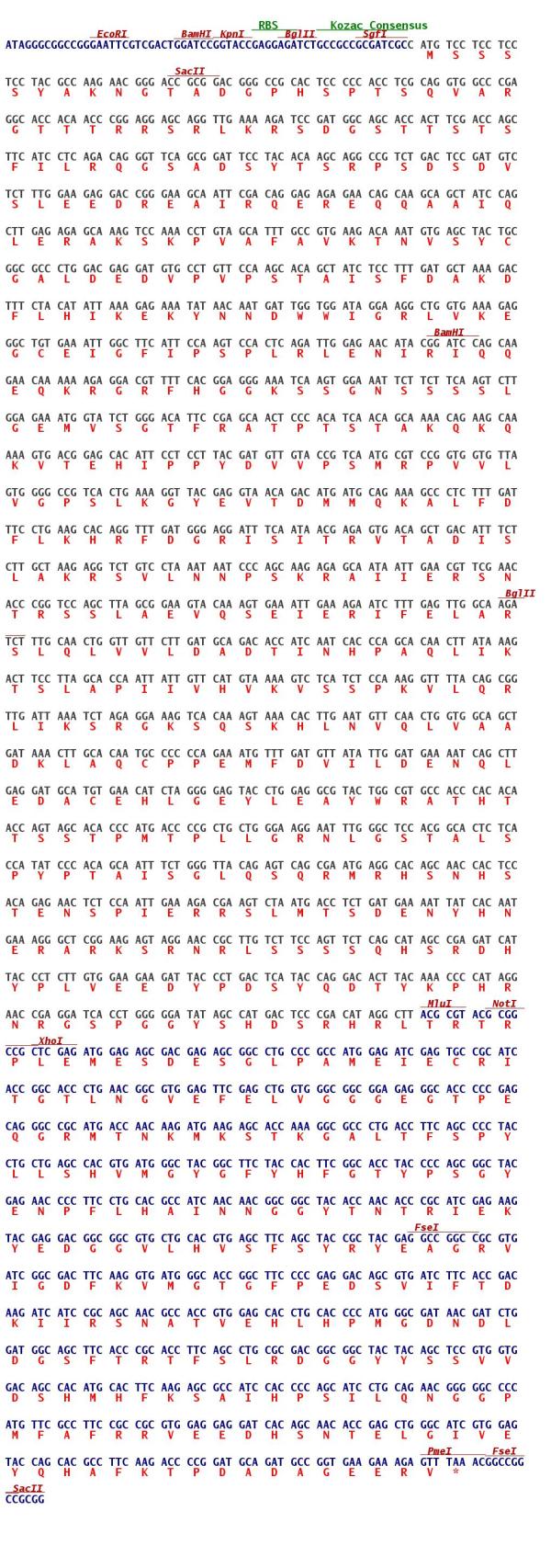

  ORF Nucleotide Sequence

  >RG210440 representing NM_000726; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTCCTCCTCCTCCTACGCCAAGAACGGGACCGCGGACGGGCCGCACTCCCCCACCTCGCAGGTGGCCC; GAGGCACCACAACCCGGAGGAGCAGGTTGAAAAGATCCGATGGCAGCACCACTTCGACCAGCTTCATCCT; CAGACAGGGTTCAGCGGATTCCTACACAAGCAGGCCGTCTGACTCCGATGTCTCTTTGGAAGAGGACCGG; GAAGCAATTCGACAGGAGAGAGAACAGCAAGCAGCTATCCAGCTTGAGAGAGCAAAGTCCAAACCTGTAG; CATTTGCCGTGAAGACAAATGTGAGCTACTGCGGCGCCCTGGACGAGGATGTGCCTGTTCCAAGCACAGC; TATCTCCTTTGATGCTAAAGACTTTCTACATATTAAAGAGAAATATAACAATGATTGGTGGATAGGAAGG; CTGGTGAAAGAGGGCTGTGAAATTGGCTTCATTCCAAGTCCACTCAGATTGGAGAACATACGGATCCAGC; AAGAACAAAAAAGAGGACGTTTTCACGGAGGGAAATCAAGTGGAAATTCTTCTTCAAGTCTTGGAGAAAT; GGTATCTGGGACATTCCGAGCAACTCCCACATCAACAGCAAAACAGAAGCAAAAAGTGACGGAGCACATT; CCTCCTTACGATGTTGTACCGTCAATGCGTCCGGTGGTGTTAGTGGGGCCGTCACTGAAAGGTTACGAGG; TAACAGACATGATGCAGAAAGCCCTCTTTGATTTCCTGAAGCACAGGTTTGATGGGAGGATTTCAATAAC; GAGAGTGACAGCTGACATTTCTCTTGCTAAGAGGTCTGTCCTAAATAATCCCAGCAAGAGAGCAATAATT; GAACGTTCGAACACCCGGTCCAGCTTAGCGGAAGTACAAAGTGAAATTGAAAGAATCTTTGAGTTGGCAA; GATCTTTGCAACTGGTTGTTCTTGATGCAGACACCATCAATCACCCAGCACAACTTATAAAGACTTCCTT; AGCACCAATTATTGTTCATGTAAAAGTCTCATCTCCAAAGGTTTTACAGCGGTTGATTAAATCTAGAGGA; AAGTCACAAAGTAAACACTTGAATGTTCAACTGGTGGCAGCTGATAAACTTGCACAATGCCCCCCAGAAA; TGTTTGATGTTATATTGGATGAAAATCAGCTTGAGGATGCATGTGAACATCTAGGGGAGTACCTGGAGGC; GTACTGGCGTGCCACCCACACAACCAGTAGCACACCCATGACCCCGCTGCTGGGAAGGAATTTGGGCTCC; ACGGCACTCTCACCATATCCCACAGCAATTTCTGGGTTACAGAGTCAGCGAATGAGGCACAGCAACCACT; CCACAGAGAACTCTCCAATTGAAAGACGAAGTCTAATGACCTCTGATGAAAATTATCACAATGAAAGGGC; TCGGAAGAGTAGGAACCGCTTGTCTTCCAGTTCTCAGCATAGCCGAGATCATTACCCTCTTGTGGAAGAA; GATTACCCTGACTCATACCAGGACACTTACAAACCCCATAGGAACCGAGGATCACCTGGGGGATATAGCC; ATGACTCCCGACATAGGCTT; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG210440 representing NM_000726; Red=Cloning site Green=Tags(s); ; MSSSSYAKNGTADGPHSPTSQVARGTTTRRSRLKRSDGSTTSTSFILRQGSADSYTSRPSDSDVSLEEDR; EAIRQEREQQAAIQLERAKSKPVAFAVKTNVSYCGALDEDVPVPSTAISFDAKDFLHIKEKYNNDWWIGR; LVKEGCEIGFIPSPLRLENIRIQQEQKRGRFHGGKSSGNSSSSLGEMVSGTFRATPTSTAKQKQKVTEHI; PPYDVVPSMRPVVLVGPSLKGYEVTDMMQKALFDFLKHRFDGRISITRVTADISLAKRSVLNNPSKRAII; ERSNTRSSLAEVQSEIERIFELARSLQLVVLDADTINHPAQLIKTSLAPIIVHVKVSSPKVLQRLIKSRG; KSQSKHLNVQLVAADKLAQCPPEMFDVILDENQLEDACEHLGEYLEAYWRATHTTSSTPMTPLLGRNLGS; TALSPYPTAISGLQSQRMRHSNHSTENSPIERRSLMTSDENYHNERARKSRNRLSSSSQHSRDHYPLVEE; DYPDSYQDTYKPHRNRGSPGGYSHDSRHRL; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000726
• ORF Size: 1560 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000726.5
• RefSeq Size: 3079 bp
• RefSeq ORF: 1563 bp
• Locus ID: 785
• UniProt ID: O00305
• Cytogenetics: 2q23.3
• Domains: Ca_channel_B, GuKc, SH3
• Protein Families: Druggable Genome, Ion Channels: Other
• Protein Pathways: Arrhythmogenic right ventricular cardiomyopathy (ARVC), Cardiac muscle contraction, Dilated cardiomyopathy, Hypertrophic cardiomyopathy (HCM), MAPK signaling pathway
• Summary: This gene encodes a member of the beta subunit family of voltage-dependent calcium channel complex proteins. Calcium channels mediate the influx of calcium ions into the cell upon membrane polarization and consist of a complex of alpha-1, alpha-2/delta, beta, and gamma subunits in a 1:1:1:1 ratio. Various versions of each of these subunits exist, either expressed from similar genes or the result of alternative splicing. The protein encoded by this locus plays an important role in calcium channel function by modulating G protein inhibition, increasing peak calcium current, controlling the alpha-1 subunit membrane targeting and shifting the voltage dependence of activation and inactivation. Certain mutations in this gene have been associated with idiopathic generalized epilepsy (IGE), juvenile myoclonic epilepsy (JME), and episodic ataxia, type 5. [provided by RefSeq, Aug 2016]
