NCKX2 (SLC24A2) (NM_020344) Human Tagged ORF Clone

SKU RG210194

SLC24A2 (tGFP-tagged) - Human solute carrier family 24 (sodium/potassium/calcium exchanger), member 2 (SLC24A2), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: NCKX2
• Synonyms: NCKX2
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

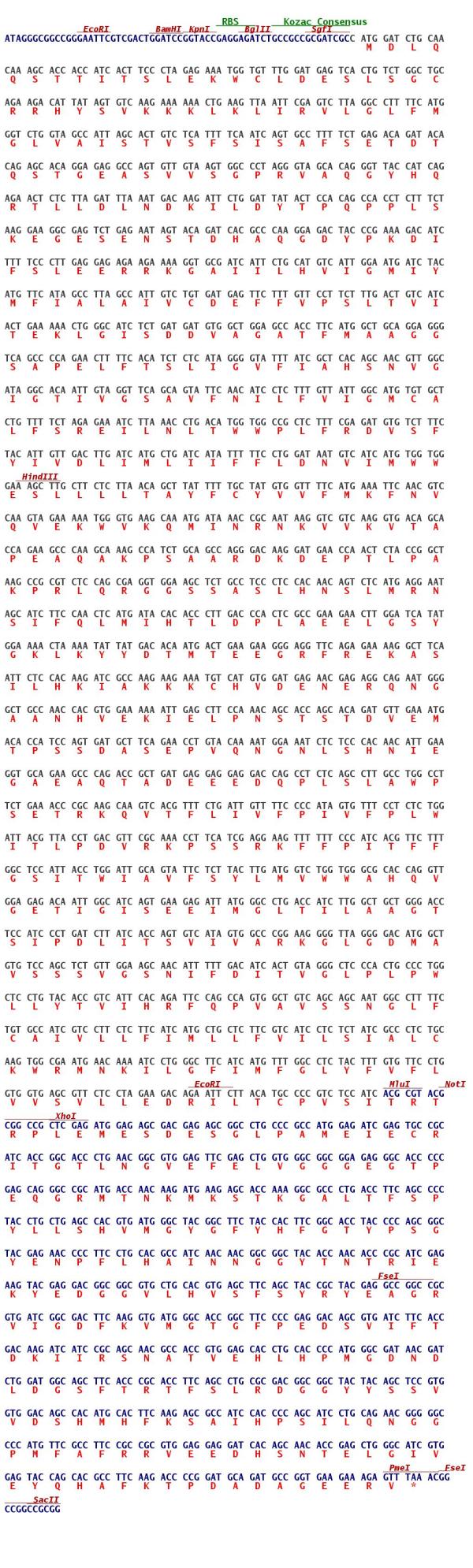

  ORF Nucleotide Sequence

  >RG210194 representing NM_020344; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGATCTGCAACAAAGCACCACCATCACTTCCCTAGAGAAATGGTGTTTGGATGAGTCACTGTCTGGCT; GCAGAAGACATTATAGTGTCAAGAAAAAACTGAAGTTAATTCGAGTCTTAGGCCTTTTCATGGGTCTGGT; AGCCATTAGCACTGTCTCATTTTCAATCAGTGCCTTTTCTGAGACAGATACACAGAGCACAGGAGAGGCC; AGTGTTGTAAGTGGCCCTAGGGTAGCACAGGGTTACCATCAGAGAACTCTCTTAGATTTAAATGACAAGA; TTCTGGATTATACTCCACAGCCACCTCTTTCTAAGGAAGGCGAGTCTGAGAATAGTACAGATCACGCCCA; AGGAGACTACCCGAAAGACATCTTTTCCCTTGAGGAGAGAAGAAAAGGTGCGATCATTCTGCATGTCATT; GGAATGATCTACATGTTCATAGCCTTAGCCATTGTCTGTGATGAGTTCTTTGTTCCTTCTTTGACTGTCA; TCACTGAAAAACTGGGCATCTCTGATGATGTGGCTGGAGCCACCTTCATGGCTGCAGGAGGGTCAGCCCC; AGAACTTTTCACATCTCTCATAGGGGTATTTATCGCTCACAGCAACGTTGGCATAGGCACAATTGTAGGT; TCAGCAGTATTCAACATCCTCTTTGTTATTGGCATGTGTGCTCTGTTTTCTAGAGAAATCTTAAACCTGA; CATGGTGGCCGCTCTTTCGAGATGTGTCTTTCTACATTGTTGACTTGATCATGCTGATCATATTTTTCCT; GGATAATGTCATCATGTGGTGGGAAAGCTTGCTTCTCTTAACAGCTTATTTTTGCTATGTGGTTTTCATG; AAATTCAACGTCCAAGTAGAAAAATGGGTGAAGCAAATGATAAACCGCAATAAGGTCGTCAAGGTGACAG; CACCAGAAGCCCAAGCAAAGCCATCTGCAGCCAGGGACAAGGATGAACCAACTCTACCGGCTAAGCCGCG; TCTCCAGCGAGGTGGAAGCTCTGCCTCCCTCCACAACAGTCTCATGAGGAATAGCATCTTCCAACTCATG; ATACACACCCTTGACCCACTCGCCGAAGAACTTGGATCATATGGAAAACTAAAATATTATGACACAATGA; CTGAAGAAGGGAGGTTCAGAGAAAAGGCTTCAATTCTCCACAAGATCGCCAAGAAGAAATGTCATGTGGA; TGAGAACGAGAGGCAGAATGGGGCTGCCAACCACGTGGAAAAAATTGAGCTTCCAAACAGCACCAGCACA; GATGTTGAAATGACACCATCCAGTGATGCTTCAGAACCTGTACAAAATGGAAATCTCTCCCACAACATTG; AAGGTGCAGAAGCCCAGACCGCTGATGAGGAGGAGGACCAGCCTCTCAGCCTTGCCTGGCCTTCTGAAAC; CCGCAAGCAAGTCACGTTTCTGATTGTTTTCCCCATAGTGTTTCCTCTCTGGATTACGTTACCTGACGTT; CGCAAACCTTCATCGAGGAAGTTTTTTCCCATCACGTTCTTTGGCTCCATTACCTGGATTGCAGTATTCT; CTTACTTGATGGTCTGGTGGGCGCACCAGGTTGGAGAGACAATTGGCATCAGTGAAGAGATTATGGGCCT; GACCATCTTGGCTGCTGGGACCTCCATCCCTGATCTTATCACCAGTGTCATAGTGGCCCGGAAGGGGTTA; GGGGACATGGCTGTGTCCAGCTCTGTTGGAAGCAACATTTTTGACATCACTGTAGGGCTCCCACTGCCCT; GGCTCCTGTACACCGTCATTCACAGATTCCAGCCAGTGGCTGTCAGCAGCAATGGCCTTTTCTGTGCCAT; CGTCCTTCTCTTCATCATGCTGCTCTTCGTCATCCTCTCTATCGCCCTCTGCAAGTGGCGAATGAACAAA; ATCCTGGGCTTCATCATGTTTGGCCTCTACTTTGTGTTCCTGGTGGTGAGCGTTCTCCTAGAAGACAGAA; TTCTTACATGCCCCGTCTCCATC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG210194 representing NM_020344; Red=Cloning site Green=Tags(s); ; MDLQQSTTITSLEKWCLDESLSGCRRHYSVKKKLKLIRVLGLFMGLVAISTVSFSISAFSETDTQSTGEA; SVVSGPRVAQGYHQRTLLDLNDKILDYTPQPPLSKEGESENSTDHAQGDYPKDIFSLEERRKGAIILHVI; GMIYMFIALAIVCDEFFVPSLTVITEKLGISDDVAGATFMAAGGSAPELFTSLIGVFIAHSNVGIGTIVG; SAVFNILFVIGMCALFSREILNLTWWPLFRDVSFYIVDLIMLIIFFLDNVIMWWESLLLLTAYFCYVVFM; KFNVQVEKWVKQMINRNKVVKVTAPEAQAKPSAARDKDEPTLPAKPRLQRGGSSASLHNSLMRNSIFQLM; IHTLDPLAEELGSYGKLKYYDTMTEEGRFREKASILHKIAKKKCHVDENERQNGAANHVEKIELPNSTST; DVEMTPSSDASEPVQNGNLSHNIEGAEAQTADEEEDQPLSLAWPSETRKQVTFLIVFPIVFPLWITLPDV; RKPSSRKFFPITFFGSITWIAVFSYLMVWWAHQVGETIGISEEIMGLTILAAGTSIPDLITSVIVARKGL; GDMAVSSSVGSNIFDITVGLPLPWLLYTVIHRFQPVAVSSNGLFCAIVLLFIMLLFVILSIALCKWRMNK; ILGFIMFGLYFVFLVVSVLLEDRILTCPVSI; ; TRTRPLE - GFP Tag - V

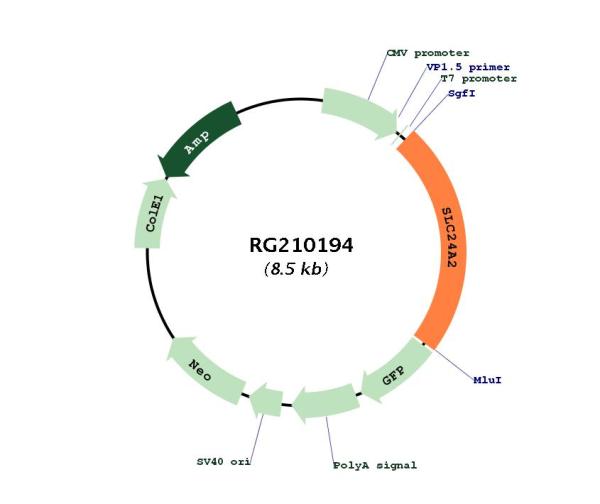

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_020344
• ORF Size: 1983 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_020344.4
• RefSeq Size: 10857 bp
• RefSeq ORF: 1986 bp
• Locus ID: 25769
• UniProt ID: Q9UI40
• Cytogenetics: 9p22.1-p21.3
• Domains: Na_Ca_Ex
• Protein Families: Druggable Genome, Transmembrane
• Summary: This gene encodes a member of the calcium/cation antiporter superfamily of transport proteins. The encoded protein belongs to the SLC24 branch of exchangers, which can mediate the extrusion of one Ca2+ ion and one K+ ion in exchange for four Na+ ions. This family member is a retinal cone/brain exchanger that can mediate a light-induced decrease in free Ca2+ concentration. This protein may also play a neuroprotective role during ischemic brain injury. Alternative splicing results in multiple transcript variants. [provided by RefSeq, Aug 2011]
