TUG (ASPSCR1) (NM_024083) Human Tagged ORF Clone

SKU RG205817

ASPSCR1 (tGFP-tagged) - Human alveolar soft part sarcoma chromosome region, candidate 1 (ASPSCR1)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: TUG
• Synonyms: ASPCR1; ASPL; ASPS; RCC17; TUG; UBXD9; UBXN9
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

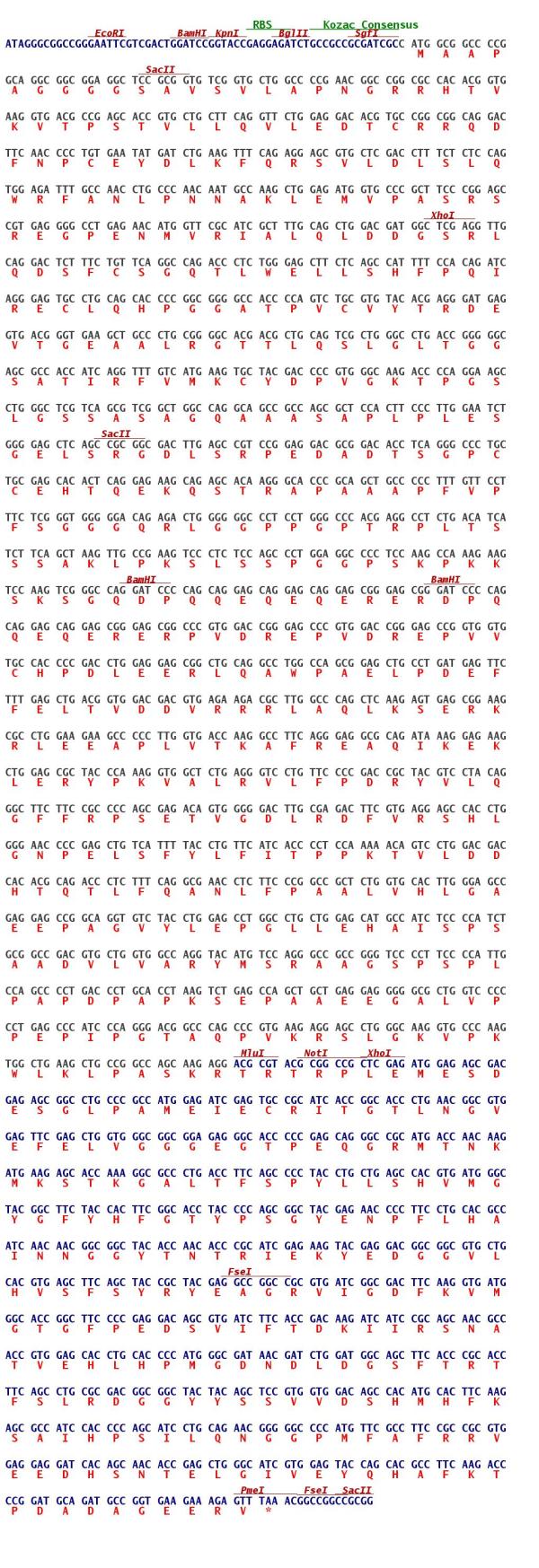

  ORF Nucleotide Sequence

  >RG205817 representing NM_024083; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCGGCCCCGGCAGGCGGCGGAGGCTCCGCGGTGTCGGTGCTGGCCCCGAACGGCCGGCGCCACACGG; TGAAGGTGACGCCGAGCACCGTGCTGCTTCAGGTTCTGGAGGACACGTGCCGGCGGCAGGACTTCAACCC; CTGTGAATATGATCTGAAGTTTCAGAGGAGCGTGCTCGACCTTTCTCTCCAGTGGAGATTTGCCAACCTG; CCCAACAATGCCAAGCTGGAGATGGTGCCCGCTTCCCGGAGCCGTGAGGGGCCTGAGAACATGGTTCGCA; TCGCTTTGCAGCTGGACGATGGCTCGAGGTTGCAGGACTCTTTCTGTTCAGGCCAGACCCTCTGGGAGCT; TCTCAGCCATTTTCCACAGATCAGGGAGTGCCTGCAGCACCCCGGCGGGGCCACCCCAGTCTGCGTGTAC; ACGAGGGATGAGGTGACGGGTGAAGCTGCCCTGCGGGGCACGACGCTGCAGTCGCTGGGCCTGACCGGGG; GCAGCGCCACCATCAGGTTTGTCATGAAGTGCTACGACCCCGTGGGCAAGACCCCAGGAAGCCTGGGCTC; GTCAGCGTCGGCTGGCCAGGCAGCCGCCAGCGCTCCACTTCCCTTGGAATCTGGGGAGCTCAGCCGCGGC; GACTTGAGCCGTCCGGAGGACGCGGACACCTCAGGGCCCTGCTGCGAGCACACTCAGGAGAAGCAGAGCA; CAAGGGCACCCGCAGCTGCCCCCTTTGTTCCTTTCTCGGGTGGGGGACAGAGACTGGGGGGCCCTCCTGG; GCCCACGAGGCCTCTGACATCATCTTCAGCTAAGTTGCCGAAGTCCCTCTCCAGCCCTGGAGGCCCCTCC; AAGCCAAAGAAGTCCAAGTCGGGCCAGGATCCCCAGCAGGAGCAGGAGCAGGAGCGGGAGCGGGATCCCC; AGCAGGAGCAGGAGCGGGAGCGGCCCGTGGACCGGGAGCCCGTGGACCGGGAGCCGGTGGTGTGCCACCC; CGACCTGGAGGAGCGGCTGCAGGCCTGGCCAGCGGAGCTGCCTGATGAGTTCTTTGAGCTGACGGTGGAC; GACGTGAGAAGACGCTTGGCCCAGCTCAAGAGTGAGCGGAAGCGCCTGGAAGAAGCCCCCTTGGTGACCA; AGGCCTTCAGGGAGGCGCAGATAAAGGAGAAGCTGGAGCGCTACCCAAAGGTGGCTCTGAGGGTCCTGTT; CCCCGACCGCTACGTCCTACAGGGCTTCTTCCGCCCCAGCGAGACAGTGGGGGACTTGCGAGACTTCGTG; AGGAGCCACCTGGGGAACCCCGAGCTGTCATTTTACCTGTTCATCACCCCTCCAAAAACAGTCCTGGACG; ACCACACGCAGACCCTCTTTCAGGCGAACCTCTTCCCGGCCGCTCTGGTGCACTTGGGAGCCGAGGAGCC; GGCAGGTGTCTACCTGGAGCCTGGCCTGCTGGAGCATGCCATCTCCCCATCTGCGGCCGACGTGCTGGTG; GCCAGGTACATGTCCAGGGCCGCCGGGTCCCCTTCCCCATTGCCAGCCCCTGACCCTGCACCTAAGTCTG; AGCCAGCTGCTGAGGAGGGGGCGCTGGTCCCCCCTGAGCCCATCCCAGGGACGGCCCAGCCCGTGAAGAG; GAGCCTGGGCAAGGTGCCCAAGTGGCTGAAGCTGCCGGCCAGCAAGAGG; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG205817 representing NM_024083; Red=Cloning site Green=Tags(s); ; MAAPAGGGGSAVSVLAPNGRRHTVKVTPSTVLLQVLEDTCRRQDFNPCEYDLKFQRSVLDLSLQWRFANL; PNNAKLEMVPASRSREGPENMVRIALQLDDGSRLQDSFCSGQTLWELLSHFPQIRECLQHPGGATPVCVY; TRDEVTGEAALRGTTLQSLGLTGGSATIRFVMKCYDPVGKTPGSLGSSASAGQAAASAPLPLESGELSRG; DLSRPEDADTSGPCCEHTQEKQSTRAPAAAPFVPFSGGGQRLGGPPGPTRPLTSSSAKLPKSLSSPGGPS; KPKKSKSGQDPQQEQEQERERDPQQEQERERPVDREPVDREPVVCHPDLEERLQAWPAELPDEFFELTVD; DVRRRLAQLKSERKRLEEAPLVTKAFREAQIKEKLERYPKVALRVLFPDRYVLQGFFRPSETVGDLRDFV; RSHLGNPELSFYLFITPPKTVLDDHTQTLFQANLFPAALVHLGAEEPAGVYLEPGLLEHAISPSAADVLV; ARYMSRAAGSPSPLPAPDPAPKSEPAAEEGALVPPEPIPGTAQPVKRSLGKVPKWLKLPASKR; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_024083
• ORF Size: 1659 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_024083.2, NP_076988.1
• RefSeq Size: 1858 bp
• RefSeq ORF: 1662 bp
• Locus ID: 79058
• UniProt ID: Q9BZE9
• Cytogenetics: 17q25.3
• Summary: The protein encoded by this gene contains a UBX domain and interacts with glucose transporter type 4 (GLUT4). This protein is a tether, which sequesters the GLUT4 in intracellular vesicles in muscle and fat cells in the absence of insulin, and redistributes the GLUT4 to the plasma membrane within minutes of insulin stimulation. Translocation t(X;17)(p11;q25) of this gene with transcription factor TFE3 gene results in a ASPSCR1-TFE3 fusion protein in alveolar soft part sarcoma and in renal cell carcinomas. Multiple alternatively spliced transcript variants have been found. [provided by RefSeq, Oct 2011]
