QIL1 (C19orf70) (NM_205767) Human Tagged ORF Clone

SKU RG202349

C19orf70 (tGFP-tagged) - Human chromosome 19 open reading frame 70 (C19orf70)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: QIL1
• Synonyms: C19orf70; MIC13; P117; QIL1
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

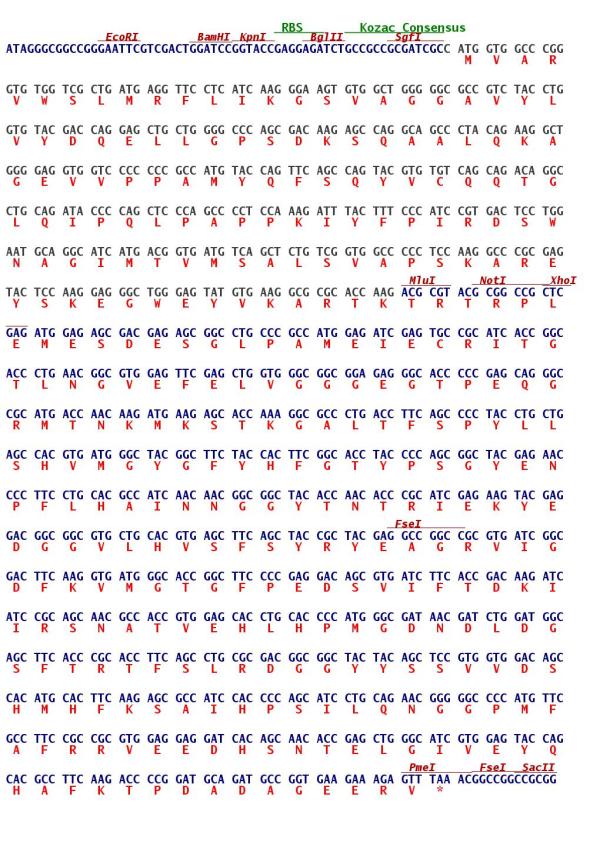

  ORF Nucleotide Sequence

  >RG202349 representing NM_205767; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGTGGCCCGGGTGTGGTCGCTGATGAGGTTCCTCATCAAGGGAAGTGTGGCTGGGGGCGCCGTCTACC; TGGTGTACGACCAGGAGCTGCTGGGGCCCAGCGACAAGAGCCAGGCAGCCCTACAGAAGGCTGGGGAGGT; GGTCCCCCCCGCCATGTACCAGTTCAGCCAGTACGTGTGTCAGCAGACAGGCCTGCAGATACCCCAGCTC; CCAGCCCCTCCAAAGATTTACTTTCCCATCCGTGACTCCTGGAATGCAGGCATCATGACGGTGATGTCAG; CTCTGTCGGTGGCCCCCTCCAAGGCCCGCGAGTACTCCAAGGAGGGCTGGGAGTATGTGAAGGCGCGCAC; CAAG; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG202349 representing NM_205767; Red=Cloning site Green=Tags(s); ; MVARVWSLMRFLIKGSVAGGAVYLVYDQELLGPSDKSQAALQKAGEVVPPAMYQFSQYVCQQTGLQIPQL; PAPPKIYFPIRDSWNAGIMTVMSALSVAPSKAREYSKEGWEYVKARTK; ; TRTRPLE - GFP Tag - V

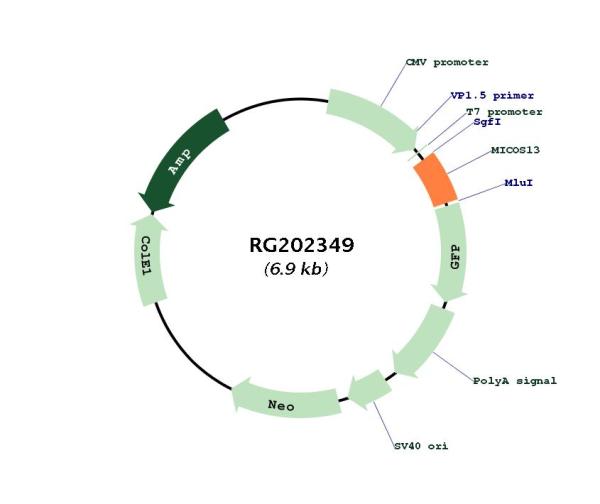

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_205767
• ORF Size: 354 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_205767.3
• RefSeq Size: 943 bp
• RefSeq ORF: 357 bp
• Locus ID: 125988
• UniProt ID: Q5XKP0
• Cytogenetics: 19p13.3
• Summary: Component of the MICOS complex, a large protein complex of the mitochondrial inner membrane that plays crucial roles in the maintenance of crista junctions, inner membrane architecture, and formation of contact sites to the outer membrane. Constituent of mature MICOS complex, it is required for the formation of cristae junction (CJ) and maintenance of cristae morphology. Required for the incorporation of MICOS10/MIC10 into the MICOS complex.[UniProtKB/Swiss-Prot Function]
