Collagen IV (COL4A1) (NM_001303110) Human Tagged ORF Clone

SKU RC238697

COL4A1 (myc-DDK-tagged) - Human collagen, type IV, alpha 1 (COL4A1), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Collagen IV
• Synonyms: BSVD; BSVD1; COL4A1s; PADMAL; RATOR
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RC238697 representing NM_001303110.; Blue=ORF Red=Cloning site Green=Tag(s); ; GCTCGTTTAGTGAACCGTCAGAATTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTG; GATCCGGTACCGAGGAGATCTGCCGCCGCGATCGCC; ATGGGGCCCCGGCTCAGCGTCTGGCTGCTGCTGCTGCCCGCCGCCCTTCTGCTCCACGAGGAGCACAGC; CGGGCCGCTGCGAAGGGTGGCTGTGCTGGCTCTGGCTGTGGCAAATGTGACTGCCATGGAGTGAAGGGA; CAAAAGGGTGAAAGAGGCCTCCCGGGGTTACAAGGTGTCATTGGGTTTCCTGGAATGCAAGGACCTGAG; GGGCCACAGGGACCACCAGGACAAAAGGGTGATACTGGAGAACCAGGACTACCTGGAACAAAAGGGACA; AGAGGACCTCCGGGAGCATCTGGCTACCCTGGAAACCCAGGACTTCCCGGAATTCCTGGCCAAGACGGC; CCGCCAGGCCCCCCAGGTATTCCAGGATGCAATGGCACAAAGGGGGAGAGAGGGCCGCTCGGGCCTCCT; GGCTTGCCTGGTTTCGCTGGAAATCCCGGACCACCAGGCTTACCAGGGATGAAGGGTGATCCAGGTGAG; ATACTTGGCCATGTGCCCGGGATGCTGTTGAAAGGTGAAAGAGGATTTCCCGGAATCCCAGGGACTCCA; GGCCCACCAGGACTGCCAGGGCTTCAAGGTCCTGTTGGGCCTCCAGGATTTACCGGACCACCAGGTCCC; CCAGGCCCTCCCGGCCCTCCAGGTGAAAAGGGACAAATGGGCTTAAGTTTTCAAGGACCAAAAGGTGAC; AAGGGTGACCAAGGGGTCAGTGGGCCTCCAGGAGTACCAGGACAAGCTCAAGTTCAAGAAAAAGGAGAC; TTCGCCACCAAGGGAGAAAAGGGCCAAAAAGGTGAACCTGGATTTCAGGGGATGCCAGGGGTCGGAGAG; AAAGGTGAACCCGGAAAACCAGGACCCAGAGGCAAACCCGGAAAAGATGGTGACAAAGGGGAAAAAGGG; AGTCCCGGTTTTCCTGGTGAACCCGGGTACCCAGGACTCATAGGCCGCCAGGGCCCGCAGGGAGAAAAG; GGTGAAGCAGGTCCTCCTGGCCCACCTGGAATTGTTATAGGCACAGGACCTTTGGGAGAAAAAGGAGAG; AGGGGCTACCCTGGAACTCCGGGGCCAAGAGGAGAGCCAGGCCCAAAAGGTTTCCCAGGACTACCAGGC; CAACCCGGACCTCCAGGCCTCCCTGTACCTGGGCAGGCTGGTGCCCCTGGCTTCCCTGGTGAAAGAGGA; GAAAAAGGTGACCGAGGATTTCCTGGTACATCTCTGCCAGGACCAAGTGGAAGAGATGGGCTCCCGGGT; CCTCCTGGTTCCCCTGGGCCCCCTGGGCAGCCTGGCTACACAAATGGAATTGTGGAATGTCAGCCCGGA; CCTCCAGGTGACCAGGGTCCTCCTGGAATTCCAGGGCAGCCAGGATTTATAGGCGAAATTGGAGAGAAA; GGTCAAAAAGGAGAGAGTTGCCTCATCTGTGATATAGACGGATATCGGGGGCCTCCCGGGCCACAGGGA; CCCCCGGGAGAAATAGGTTTCCCAGGGCAGCCAGGGGCCAAGGGCGACAGAGGTTTGCCTGGCAGAGAT; GGTGTTGCAGGAGTGCCATTGCTTTTTCAAATCCATAAA; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGAT; TACAAGGATGACGACGATAAGGTTTAAACGGCCGGC;
  Protein Sequence

  >Peptide sequence encoded by RC238697; Blue=ORF Red=Cloning site Green=Tag(s); ; MGPRLSVWLLLLPAALLLHEEHSRAAAKGGCAGSGCGKCDCHGVKGQKGERGLPGLQGVIGFPGMQGPE; GPQGPPGQKGDTGEPGLPGTKGTRGPPGASGYPGNPGLPGIPGQDGPPGPPGIPGCNGTKGERGPLGPP; GLPGFAGNPGPPGLPGMKGDPGEILGHVPGMLLKGERGFPGIPGTPGPPGLPGLQGPVGPPGFTGPPGP; PGPPGPPGEKGQMGLSFQGPKGDKGDQGVSGPPGVPGQAQVQEKGDFATKGEKGQKGEPGFQGMPGVGE; KGEPGKPGPRGKPGKDGDKGEKGSPGFPGEPGYPGLIGRQGPQGEKGEAGPPGPPGIVIGTGPLGEKGE; RGYPGTPGPRGEPGPKGFPGLPGQPGPPGLPVPGQAGAPGFPGERGEKGDRGFPGTSLPGPSGRDGLPG; PPGSPGPPGQPGYTNGIVECQPGPPGDQGPPGIPGQPGFIGEIGEKGQKGESCLICDIDGYRGPPGPQG; PPGEIGFPGQPGAKGDRGLPGRDGVAGVPLLFQIHK; TRTRPLEQKLISEEDLAANDILDYKDDDDKV;

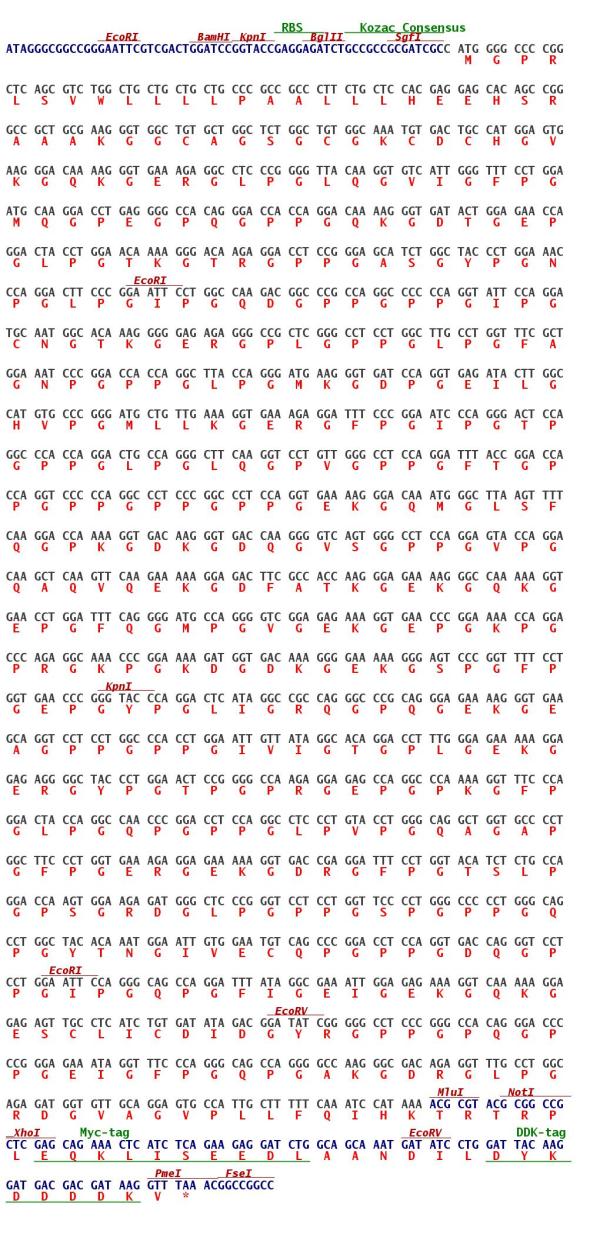

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001303110
• ORF Size: 1557 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001303110.2
• RefSeq Size: 2601 bp
• RefSeq ORF: 1560 bp
• Locus ID: 1282
• UniProt ID: P02462
• Cytogenetics: 13q34
• Protein Pathways: ECM-receptor interaction, Focal adhesion, Pathways in cancer, Small cell lung cancer
• MW: 50.2 kDa
• Summary: This gene encodes a type IV collagen alpha protein. Type IV collagen proteins are integral components of basement membranes. This gene shares a bidirectional promoter with a paralogous gene on the opposite strand. The protein consists of an amino-terminal 7S domain, a triple-helix forming collagenous domain, and a carboxy-terminal non-collagenous domain. It functions as part of a heterotrimer and interacts with other extracellular matrix components such as perlecans, proteoglycans, and laminins. In addition, proteolytic cleavage of the non-collagenous carboxy-terminal domain results in a biologically active fragment known as arresten, which has anti-angiogenic and tumor suppressor properties. Mutations in this gene cause porencephaly, cerebrovascular disease, and renal and muscular defects. Alternative splicing results in multiple transcript variants. [provided by RefSeq, Dec 2014]
