FKBP51 (FKBP5) (NM_001145777) Human Tagged ORF Clone

  • Product Brand Image
SKU
RC227059
FKBP5 (Myc-DDK-tagged)-Human FK506 binding protein 5 (FKBP5), transcript variant 4
  $300.00
In Stock*
Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol FKBP51
Synonyms AIG6; FKBP51; FKBP54; P54; PPIase; Ptg-10
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC227059 representing NM_001145777
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGACTACTGATGAAGGTGCCAAGAACAATGAAGAAAGCCCCACAGCCACTGTTGCTGAGCAGGGAGAGG
ATATTACCTCCAAAAAAGACAGGGGAGTATTAAAGATTGTCAAAAGAGTGGGGAATGGTGAGGAAACGCC
GATGATTGGAGACAAAGTTTATGTCCATTACAAAGGAAAATTGTCAAATGGAAAGAAGTTTGATTCCAGT
CATGATAGAAATGAACCATTTGTCTTTAGTCTTGGCAAAGGCCAAGTCATCAAGGCATGGGACATTGGGG
TGGCTACCATGAAGAAAGGAGAGATATGCCATTTACTGTGCAAACCAGAATATGCATATGGCTCGGCTGG
CAGTCTCCCTAAAATTCCCTCGAATGCAACTCTCTTTTTTGAGATTGAGCTCCTTGATTTCAAAGGAGAG
GATTTATTTGAAGATGGAGGCATTATCCGGAGAACCAAACGGAAAGGAGAGGGATATTCAAATCCAAACG
AAGGAGCAACAGTAGAAATCCACCTGGAAGGCCGCTGTGGTGGAAGGATGTTTGACTGCAGAGATGTGGC
ATTCACTGTGGGCGAAGGAGAAGACCACGACATTCCAATTGGAATTGACAAAGCTCTGGAGAAAATGCAG
CGGGAAGAACAATGTATTTTATATCTTGGACCAAGGCCAAAGAATCCTGGGAGATGGATACCAAAGAAAA
ATTGGAGCAGGCTGCCATTGTCAAAGAGAAGGGAACCGTATACTTCAAGGTGTGTGAGTCCCTATGCAAT
CCTTTCCATCTCAAAGAATTTATTCAAGTGTTGG


ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAG
GTTTAA
Protein Sequence
>RC227059 representing NM_001145777
Red=Cloning site Green=Tags(s)

MTTDEGAKNNEESPTATVAEQGEDITSKKDRGVLKIVKRVGNGEETPMIGDKVYVHYKGKLSNGKKFDSS
HDRNEPFVFSLGKGQVIKAWDIGVATMKKGEICHLLCKPEYAYGSAGSLPKIPSNATLFFEIELLDFKGE
DLFEDGGIIRRTKRKGEGYSNPNEGATVEIHLEGRCGGRMFDCRDVAFTVGEGEDHDIPIGIDKALEKMQ
REEQCILYLGPRPKNPGRWIPKKNWSRLPLSKRREPYTSRCVSPYAILSISKNLFKCW

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_001145777
ORF Size 804 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_001145777.1, NP_001139249.1
RefSeq ORF 807 bp
Locus ID 2289
UniProt ID Q13451
Cytogenetics 6p21.31
Protein Families Druggable Genome
MW 29.9 kDa
Summary The protein encoded by this gene is a member of the immunophilin protein family, which play a role in immunoregulation and basic cellular processes involving protein folding and trafficking. This encoded protein is a cis-trans prolyl isomerase that binds to the immunosuppressants FK506 and rapamycin. It is thought to mediate calcineurin inhibition. It also interacts functionally with mature hetero-oligomeric progesterone receptor complexes along with the 90 kDa heat shock protein and P23 protein. This gene has been found to have multiple polyadenylation sites. Alternative splicing results in multiple transcript variants.provided by RefSeq, Mar 2009
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_001145777" in other vectors (6)
SKU Description Size Price
RC227059L1 Lenti ORF clone of Human FK506 binding protein 5 (FKBP5), transcript variant 4, Myc-DDK-tagged 10 ug
$600.00
RC227059L2 Lenti ORF clone of Human FK506 binding protein 5 (FKBP5), transcript variant 4, mGFP tagged 10 ug
$600.00
RC227059L3 Lenti ORF clone of Human FK506 binding protein 5 (FKBP5), transcript variant 4, Myc-DDK-tagged 10 ug
$600.00
RC227059L4 Lenti ORF clone of Human FK506 binding protein 5 (FKBP5), transcript variant 4, mGFP tagged 10 ug
$600.00
RG227059 FKBP5 (tGFP-tagged) - Human FK506 binding protein 5 (FKBP5), transcript variant 4 10 ug
$489.00 $500.00
SC326544 FKBP5 (untagged)-Human FK506 binding protein 5 (FKBP5), transcript variant 4, mRNA 10 ug
$300.00

Plasmid Map for RC227059

Download sequence for

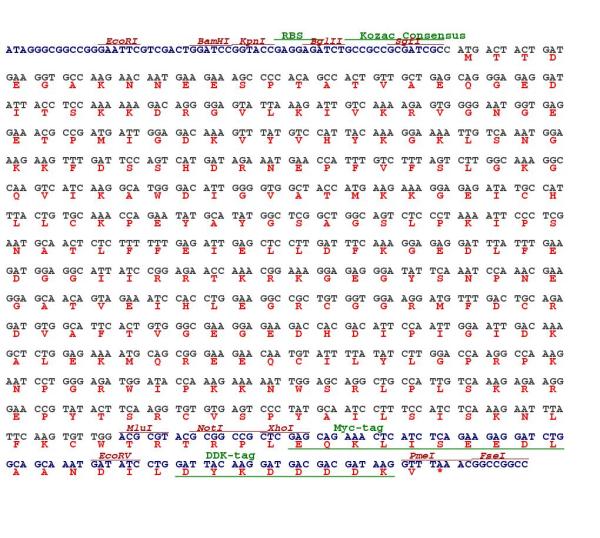

Cloning scheme for RC227059

Circular map for RC227059

file-alt Citations

The splicing FK506-binding protein-51 isoform plays a role in glioblastoma resistance through programmed cell death ligand-1 expression regulation
D'Arrigo, Digregorio, Romano et al
Cell Death Discov (2019) 5, 137 DOI: 10.1038/s41420-019-0216-0
Cited by 31
AI Summary: In this study, OriGene products—including FKBP5 siRNA (SR300363) and PD-L1 cDNA (RC217445)—were used to modulate gene expression, enabling the authors to investigate the roles of FKBP51s and PD-L1 in glioblastoma cell survival, stemness, and resistance.
FigureFigureFigure
FKBP51 employs both scaffold and isomerase functions to promote NF-κB activation in melanoma
Romano, Xiao, Nakaya et al
Nucleic Acids Res. (2015)
Cited by 82
AI Summary: OriGene products, specifically the pCMV Myc-DDK-tagged human FKBP51 transcript variant 1 (Myc-Flag-FKBP51) and transcript variant 4 (Myc-Flag-FKBP51s) plasmids, were used to study the roles of FKBP51 and its domains in NF-κB activation in melanoma cells.
Snippet: been described previously (17–20);the pCMV Myc-DDK-tagged human FKBP51-transcript variant 1 (canonical FKBP51 [Myc-Flag-FKBP51]) and FKBP51-transcript variant 4 (short FKBP51 lacking of TPR domains [Myc-Flag-FKBP51s]) were from OriGene Technologies ... Cite SaveSaving
Immunomodulatory pathways regulate expression of a spliced FKBP51 isoform in lymphocytes of melanoma patients
Romano, D'Angelillo, Staibano et al
Pigment Cell Melanoma Res (2015)
Cited by 32
AI Summary: OriGene’s TrueORF® Myc-DDK-tagged expression vectors, containing cDNA for FKBP51 and FKBP51s, were used to overexpress these proteins in melanoma cells, enabling the study of their roles in immunomodulation in melanoma patients.
Snippet: cultured in 10% FBS DMEM. To create FKBP51 and FKBP51s overexpressing SAN melanoma cells, two different TrueORF Myc-DDK-tagged expression vectors were used (OriGene Technologies, Rockville, MD, USA). These vectors carried the cDNA of the human ... Cite SaveSaving
Showing 1-3 of 3 papers.
