HIP55 (DBNL) (NM_001122956) Human Tagged ORF Clone

SKU RC225720

DBNL (Myc-DDK-tagged)-Human drebrin-like (DBNL), transcript variant 3

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: HIP55
• Synonyms: ABP1; HIP-55; HIP55; SH3P7
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

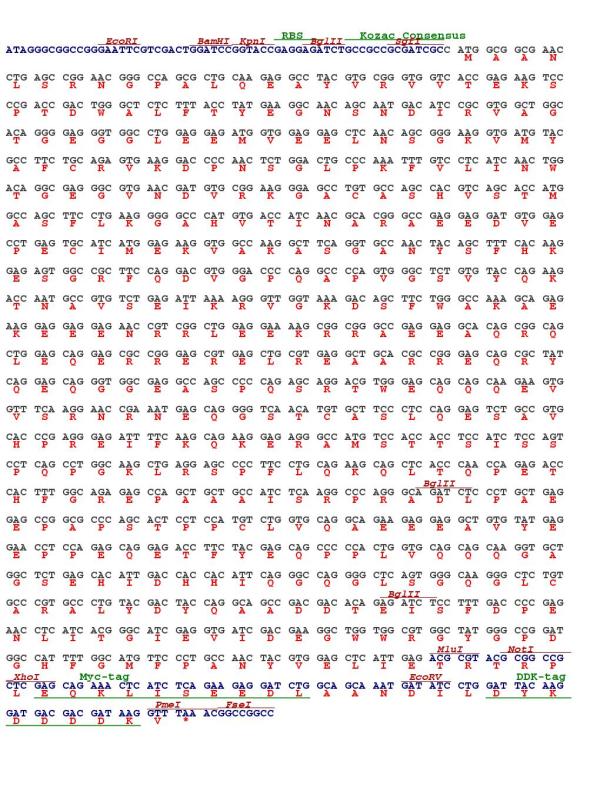

  ORF Nucleotide Sequence

  >RC225720 representing NM_001122956; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCGGCGAACCTGAGCCGGAACGGGCCAGCGCTGCAAGAGGCCTACGTGCGGGTGGTCACCGAGAAGT; CCCCGACCGACTGGGCTCTCTTTACCTATGAAGGCAACAGCAATGACATCCGCGTGGCTGGCACAGGGGA; GGGTGGCCTGGAGGAGATGGTGGAGGAGCTCAACAGCGGGAAGGTGATGTACGCCTTCTGCAGAGTGAAG; GACCCCAACTCTGGACTGCCCAAATTTGTCCTCATCAACTGGACAGGCGAGGGCGTGAACGATGTGCGGA; AGGGAGCCTGTGCCAGCCACGTCAGCACCATGGCCAGCTTCCTGAAGGGGGCCCATGTGACCATCAACGC; ACGGGCCGAGGAGGATGTGGAGCCTGAGTGCATCATGGAGAAGGTGGCCAAGGCTTCAGGTGCCAACTAC; AGCTTTCACAAGGAGAGTGGCCGCTTCCAGGACGTGGGACCCCAGGCCCCAGTGGGCTCTGTGTACCAGA; AGACCAATGCCGTGTCTGAGATTAAAAGGGTTGGTAAAGACAGCTTCTGGGCCAAAGCAGAGAAGGAGGA; GGAGAACCGTCGGCTGGAGGAAAAGCGGCGGGCCGAGGAGGCACAGCGGCAGCTGGAGCAGGAGCGCCGG; GAGCGTGAGCTGCGTGAGGCTGCACGCCGGGAGCAGCGCTATCAGGAGCAGGGTGGCGAGGCCAGCCCCC; AGAGCAGGACGTGGGAGCAGCAGCAAGAAGTGGTTTCAAGGAACCGAAATGAGCAGGGGTCAACATGTGC; TTCCCTCCAGGAGTCTGCCGTGCACCCGAGGGAGATTTTCAAGCAGAAGGAGAGGGCCATGTCCACCACC; TCCATCTCCAGTCCTCAGCCTGGCAAGCTGAGGAGCCCCTTCCTGCAGAAGCAGCTCACCCAACCAGAGA; CCCACTTTGGCAGAGAGCCAGCTGCTGCCATCTCAAGGCCCAGGGCAGATCTCCCTGCTGAGGAGCCGGC; GCCCAGCACTCCTCCATGTCTGGTGCAGGCAGAAGAGGAGGCTGTGTATGAGGAACCTCCAGAGCAGGAG; ACCTTCTACGAGCAGCCCCCACTGGTGCAGCAGCAAGGTGCTGGCTCTGAGCACATTGACCACCACATTC; AGGGCCAGGGGCTCAGTGGGCAAGGGCTCTGTGCCCGTGCCCTGTACGACTACCAGGCAGCCGACGACAC; AGAGATCTCCTTTGACCCCGAGAACCTCATCACGGGCATCGAGGTGATCGACGAAGGCTGGTGGCGTGGC; TATGGGCCGGATGGCCATTTTGGCATGTTCCCTGCCAACTACGTGGAGCTCATTGAG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC225720 representing NM_001122956; Red=Cloning site Green=Tags(s); ; MAANLSRNGPALQEAYVRVVTEKSPTDWALFTYEGNSNDIRVAGTGEGGLEEMVEELNSGKVMYAFCRVK; DPNSGLPKFVLINWTGEGVNDVRKGACASHVSTMASFLKGAHVTINARAEEDVEPECIMEKVAKASGANY; SFHKESGRFQDVGPQAPVGSVYQKTNAVSEIKRVGKDSFWAKAEKEEENRRLEEKRRAEEAQRQLEQERR; ERELREAARREQRYQEQGGEASPQSRTWEQQQEVVSRNRNEQGSTCASLQESAVHPREIFKQKERAMSTT; SISSPQPGKLRSPFLQKQLTQPETHFGREPAAAISRPRADLPAEEPAPSTPPCLVQAEEEAVYEEPPEQE; TFYEQPPLVQQQGAGSEHIDHHIQGQGLSGQGLCARALYDYQAADDTEISFDPENLITGIEVIDEGWWRG; YGPDGHFGMFPANYVELIE; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001122956
• ORF Size: 1317 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001122956.2
• RefSeq ORF: 1320 bp
• Locus ID: 28988
• UniProt ID: Q9UJU6
• Cytogenetics: 7p13
• MW: 48.9 kDa
• Summary: Adapter protein that binds F-actin and DNM1, and thereby plays a role in receptor-mediated endocytosis. Plays a role in the reorganization of the actin cytoskeleton, formation of cell projections, such as neurites, in neuron morphogenesis and synapse formation via its interaction with WASL and COBL. Does not bind G-actin and promote actin polymerization by itself. Required for the formation of organized podosome rosettes (By similarity). May act as a common effector of antigen receptor-signaling pathways in leukocytes. Acts as a key component of the immunological synapse that regulates T-cell activation by bridging TCRs and the actin cytoskeleton to gene activation and endocytic processes.[UniProtKB/Swiss-Prot Function]
