SIGIRR (NM_001135053) Human Tagged ORF Clone

SKU RC225642

SIGIRR (Myc-DDK-tagged)-Human single immunoglobulin and toll-interleukin 1 receptor (TIR) domain (SIGIRR), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: SIGIRR
• Synonyms: IL-1R8; TIR8
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

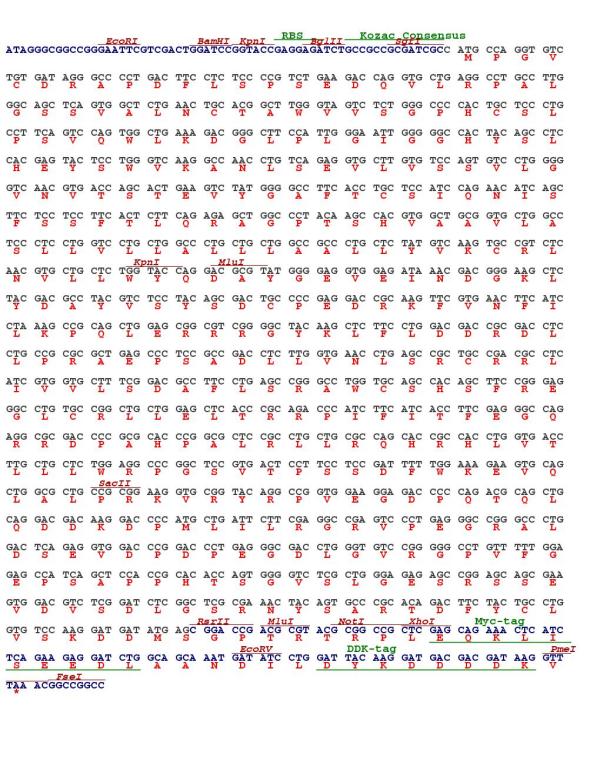

  >RC225642 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCCAGGTGTCTGTGATAGGGCCCCTGACTTCCTCTCCCCGTCTGAAGACCAGGTGCTGAGGCCTGCCT; TGGGCAGCTCAGTGGCTCTGAACTGCACGGCTTGGGTAGTCTCTGGGCCCCACTGCTCCCTGCCTTCAGT; CCAGTGGCTGAAAGACGGGCTTCCATTGGGAATTGGGGGCCACTACAGCCTCCACGAGTACTCCTGGGTC; AAGGCCAACCTGTCAGAGGTGCTTGTGTCCAGTGTCCTGGGGGTCAACGTGACCAGCACTGAAGTCTATG; GGGCCTTCACCTGCTCCATCCAGAACATCAGCTTCTCCTCCTTCACTCTTCAGAGAGCTGGCCCTACAAG; CCACGTGGCTGCGGTGCTGGCCTCCCTCCTGGTCCTGCTGGCCCTGCTGCTGGCCGCCCTGCTCTATGTC; AAGTGCCGTCTCAACGTGCTGCTCTGGTACCAGGACGCGTATGGGGAGGTGGAGATAAACGACGGGAAGC; TCTACGACGCCTACGTCTCCTACAGCGACTGCCCCGAGGACCGCAAGTTCGTGAACTTCATCCTAAAGCC; GCAGCTGGAGCGGCGTCGGGGCTACAAGCTCTTCCTGGACGACCGCGACCTCCTGCCGCGCGCTGAGCCC; TCCGCCGACCTCTTGGTGAACCTGAGCCGCTGCCGACGCCTCATCGTGGTGCTTTCGGACGCCTTCCTGA; GCCGGGCCTGGTGCAGCCACAGCTTCCGGGAGGGCCTGTGCCGGCTGCTGGAGCTCACCCGCAGACCCAT; CTTCATCACCTTCGAGGGCCAGAGGCGCGACCCCGCGCACCCGGCGCTCCGCCTGCTGCGCCAGCACCGC; CACCTGGTGACCTTGCTGCTCTGGAGGCCCGGCTCCGTGACTCCTTCCTCCGATTTTTGGAAAGAAGTGC; AGCTGGCGCTGCCGCGGAAGGTGCGGTACAGGCCGGTGGAAGGAGACCCCCAGACGCAGCTGCAGGACGA; CAAGGACCCCATGCTGATTCTTCGAGGCCGAGTCCCTGAGGGCCGGGCCCTGGACTCAGAGGTGGACCCG; GACCCTGAGGGCGACCTGGGTGTCCGGGGGCCTGTTTTTGGAGAGCCATCAGCTCCACCGCACACCAGTG; GGGTCTCGCTGGGAGAGAGCCGGAGCAGCGAAGTGGACGTCTCGGATCTCGGCTCGCGAAACTACAGTGC; CCGCACAGACTTCTACTGCCTGGTGTCCAAGGATGATATG; ; AGCGGACCGACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCC; TGGATTACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC225642 protein sequence; Red=Cloning site Green=Tags(s); ; MPGVCDRAPDFLSPSEDQVLRPALGSSVALNCTAWVVSGPHCSLPSVQWLKDGLPLGIGGHYSLHEYSWV; KANLSEVLVSSVLGVNVTSTEVYGAFTCSIQNISFSSFTLQRAGPTSHVAAVLASLLVLLALLLAALLYV; KCRLNVLLWYQDAYGEVEINDGKLYDAYVSYSDCPEDRKFVNFILKPQLERRRGYKLFLDDRDLLPRAEP; SADLLVNLSRCRRLIVVLSDAFLSRAWCSHSFREGLCRLLELTRRPIFITFEGQRRDPAHPALRLLRQHR; HLVTLLLWRPGSVTPSSDFWKEVQLALPRKVRYRPVEGDPQTQLQDDKDPMLILRGRVPEGRALDSEVDP; DPEGDLGVRGPVFGEPSAPPHTSGVSLGESRSSEVDVSDLGSRNYSARTDFYCLVSKDDM; ; SGPTRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-RsrII Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001135053
• ORF Size: 1230 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001135053.1, NP_001128525.1
• RefSeq Size: 1688 bp
• RefSeq ORF: 1233 bp
• Locus ID: 59307
• UniProt ID: Q6IA17
• Cytogenetics: 11p15.5
• Protein Families: Transcription Factors, Transmembrane
• MW: 45.7 kDa
• Summary: Acts as a negative regulator of the Toll-like and IL-1R receptor signaling pathways. Attenuates the recruitment of receptor-proximal signaling components to the TLR4 receptor, probably through an TIR-TIR domain interaction with TLR4. Through its extracellular domain interferes with the heterodimerization of Il1R1 and IL1RAP.[UniProtKB/Swiss-Prot Function]
