IGF1 (NM_001111283) Human Tagged ORF Clone

SKU RC225144

IGF1 (Myc-DDK-tagged)-Human insulin-like growth factor 1 (somatomedin C) (IGF1), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: IGF1
• Synonyms: IGF; IGF-I; IGFI; MGF
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

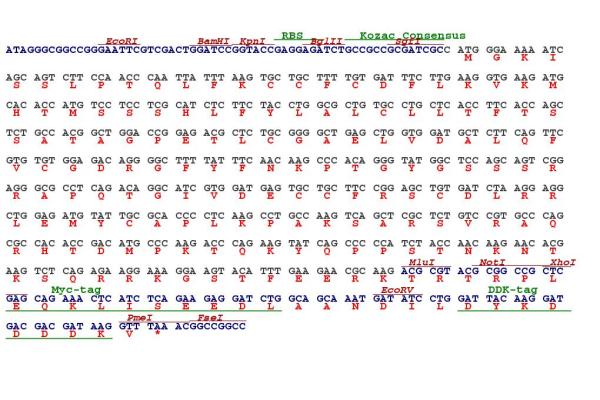

  ORF Nucleotide Sequence

  >RC225144 representing NM_001111283; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGGAAAAATCAGCAGTCTTCCAACCCAATTATTTAAGTGCTGCTTTTGTGATTTCTTGAAGGTGAAGA; TGCACACCATGTCCTCCTCGCATCTCTTCTACCTGGCGCTGTGCCTGCTCACCTTCACCAGCTCTGCCAC; GGCTGGACCGGAGACGCTCTGCGGGGCTGAGCTGGTGGATGCTCTTCAGTTCGTGTGTGGAGACAGGGGC; TTTTATTTCAACAAGCCCACAGGGTATGGCTCCAGCAGTCGGAGGGCGCCTCAGACAGGCATCGTGGATG; AGTGCTGCTTCCGGAGCTGTGATCTAAGGAGGCTGGAGATGTATTGCGCACCCCTCAAGCCTGCCAAGTC; AGCTCGCTCTGTCCGTGCCCAGCGCCACACCGACATGCCCAAGACCCAGAAGTATCAGCCCCCATCTACC; AACAAGAACACGAAGTCTCAGAGAAGGAAAGGAAGTACATTTGAAGAACGCAAG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC225144 representing NM_001111283; Red=Cloning site Green=Tags(s); ; MGKISSLPTQLFKCCFCDFLKVKMHTMSSSHLFYLALCLLTFTSSATAGPETLCGAELVDALQFVCGDRG; FYFNKPTGYGSSSRRAPQTGIVDECCFRSCDLRRLEMYCAPLKPAKSARSVRAQRHTDMPKTQKYQPPST; NKNTKSQRRKGSTFEERK; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001111283
• ORF Size: 474 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001111283.3
• RefSeq ORF: 477 bp
• Locus ID: 3479
• Cytogenetics: 12q23.2
• Protein Families: Druggable Genome, ES Cell Differentiation/IPS, Secreted Protein
• Protein Pathways: Dilated cardiomyopathy, Focal adhesion, Glioma, Hypertrophic cardiomyopathy (HCM), Long-term depression, Melanoma, mTOR signaling pathway, Oocyte meiosis, p53 signaling pathway, Pathways in cancer, Progesterone-mediated oocyte maturation, Prostate cancer
• MW: 17.76 kDa
• Summary: The protein encoded by this gene is similar to insulin in function and structure and is a member of a family of proteins involved in mediating growth and development. The encoded protein is processed from a precursor, bound by a specific receptor, and secreted. Defects in this gene are a cause of insulin-like growth factor I deficiency. Alternative splicing results in multiple transcript variants encoding different isoforms that may undergo similar processing to generate mature protein. [provided by RefSeq, Sep 2015]
