Nicotinic Acetylcholine Receptor alpha 7 (CHRNA7) (NM_000746) Human Tagged ORF Clone

SKU RC221382

CHRNA7 (Myc-DDK-tagged)-Human cholinergic receptor, nicotinic, alpha 7 (CHRNA7), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Nicotinic Acetylcholine Receptor alpha 7
• Synonyms: CHRNA7-2; NACHRA7
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

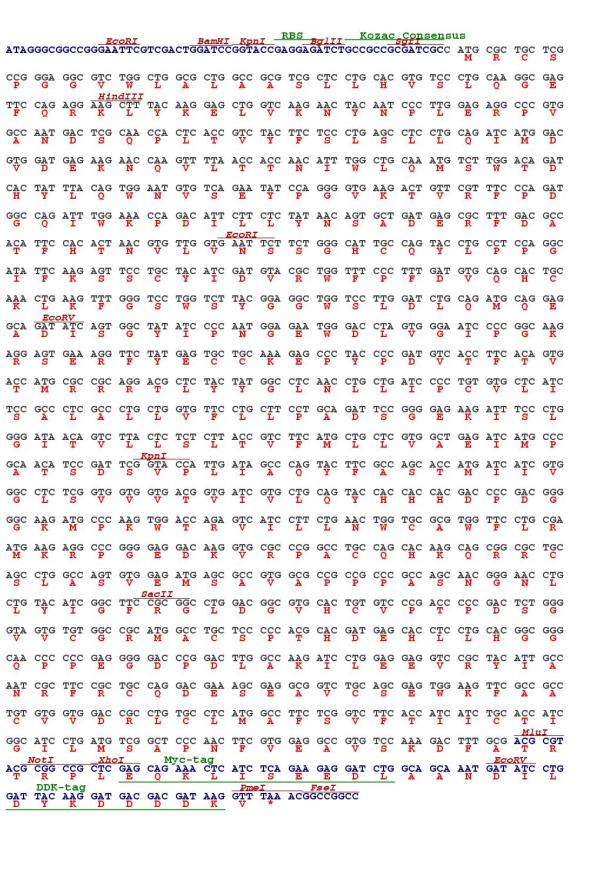

  ORF Nucleotide Sequence

  >RC221382 representing NM_000746; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCGCTGCTCGCCGGGAGGCGTCTGGCTGGCGCTGGCCGCGTCGCTCCTGCACGTGTCCCTGCAAGGCG; AGTTCCAGAGGAAGCTTTACAAGGAGCTGGTCAAGAACTACAATCCCTTGGAGAGGCCCGTGGCCAATGA; CTCGCAACCACTCACCGTCTACTTCTCCCTGAGCCTCCTGCAGATCATGGACGTGGATGAGAAGAACCAA; GTTTTAACCACCAACATTTGGCTGCAAATGTCTTGGACAGATCACTATTTACAGTGGAATGTGTCAGAAT; ATCCAGGGGTGAAGACTGTTCGTTTCCCAGATGGCCAGATTTGGAAACCAGACATTCTTCTCTATAACAG; TGCTGATGAGCGCTTTGACGCCACATTCCACACTAACGTGTTGGTGAATTCTTCTGGGCATTGCCAGTAC; CTGCCTCCAGGCATATTCAAGAGTTCCTGCTACATCGATGTACGCTGGTTTCCCTTTGATGTGCAGCACT; GCAAACTGAAGTTTGGGTCCTGGTCTTACGGAGGCTGGTCCTTGGATCTGCAGATGCAGGAGGCAGATAT; CAGTGGCTATATCCCCAATGGAGAATGGGACCTAGTGGGAATCCCCGGCAAGAGGAGTGAAAGGTTCTAT; GAGTGCTGCAAAGAGCCCTACCCCGATGTCACCTTCACAGTGACCATGCGCCGCAGGACGCTCTACTATG; GCCTCAACCTGCTGATCCCCTGTGTGCTCATCTCCGCCCTCGCCCTGCTGGTGTTCCTGCTTCCTGCAGA; TTCCGGGGAGAAGATTTCCCTGGGGATAACAGTCTTACTCTCTCTTACCGTCTTCATGCTGCTCGTGGCT; GAGATCATGCCCGCAACATCCGATTCGGTACCATTGATAGCCCAGTACTTCGCCAGCACCATGATCATCG; TGGGCCTCTCGGTGGTGGTGACGGTGATCGTGCTGCAGTACCACCACCACGACCCCGACGGGGGCAAGAT; GCCCAAGTGGACCAGAGTCATCCTTCTGAACTGGTGCGCGTGGTTCCTGCGAATGAAGAGGCCCGGGGAG; GACAAGGTGCGCCCGGCCTGCCAGCACAAGCAGCGGCGCTGCAGCCTGGCCAGTGTGGAGATGAGCGCCG; TGGCGCCGCCGCCCGCCAGCAACGGGAACCTGCTGTACATCGGCTTCCGCGGCCTGGACGGCGTGCACTG; TGTCCCGACCCCCGACTCTGGGGTAGTGTGTGGCCGCATGGCCTGCTCCCCCACGCACGATGAGCACCTC; CTGCACGGCGGGCAACCCCCCGAGGGGGACCCGGACTTGGCCAAGATCCTGGAGGAGGTCCGCTACATTG; CCAATCGCTTCCGCTGCCAGGACGAAAGCGAGGCGGTCTGCAGCGAGTGGAAGTTCGCCGCCTGTGTGGT; GGACCGCCTGTGCCTCATGGCCTTCTCGGTCTTCACCATCATCTGCACCATCGGCATCCTGATGTCGGCT; CCCAACTTCGTGGAGGCCGTGTCCAAAGACTTTGCG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC221382 representing NM_000746; Red=Cloning site Green=Tags(s); ; MRCSPGGVWLALAASLLHVSLQGEFQRKLYKELVKNYNPLERPVANDSQPLTVYFSLSLLQIMDVDEKNQ; VLTTNIWLQMSWTDHYLQWNVSEYPGVKTVRFPDGQIWKPDILLYNSADERFDATFHTNVLVNSSGHCQY; LPPGIFKSSCYIDVRWFPFDVQHCKLKFGSWSYGGWSLDLQMQEADISGYIPNGEWDLVGIPGKRSERFY; ECCKEPYPDVTFTVTMRRRTLYYGLNLLIPCVLISALALLVFLLPADSGEKISLGITVLLSLTVFMLLVA; EIMPATSDSVPLIAQYFASTMIIVGLSVVVTVIVLQYHHHDPDGGKMPKWTRVILLNWCAWFLRMKRPGE; DKVRPACQHKQRRCSLASVEMSAVAPPPASNGNLLYIGFRGLDGVHCVPTPDSGVVCGRMACSPTHDEHL; LHGGQPPEGDPDLAKILEEVRYIANRFRCQDESEAVCSEWKFAACVVDRLCLMAFSVFTIICTIGILMSA; PNFVEAVSKDFA; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000746
• ORF Size: 1506 bp
• OTI Disclaimer: Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.; ; The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000746.6
• RefSeq Size: 2155 bp
• RefSeq ORF: 1509 bp
• Locus ID: 1139
• UniProt ID: P36544
• Cytogenetics: 15q13.3
• Protein Families: Druggable Genome, Ion Channels: Cys-loop Receptors, Transmembrane
• Protein Pathways: Calcium signaling pathway
• MW: 56.3 kDa
• Summary: The nicotinic acetylcholine receptors (nAChRs) are members of a superfamily of ligand-gated ion channels that mediate fast signal transmission at synapses. The nAChRs are thought to be hetero-pentamers composed of homologous subunits. The proposed structure for each subunit is a conserved N-terminal extracellular domain followed by three conserved transmembrane domains, a variable cytoplasmic loop, a fourth conserved transmembrane domain, and a short C-terminal extracellular region. The protein encoded by this gene forms a homo-oligomeric channel, displays marked permeability to calcium ions and is a major component of brain nicotinic receptors that are blocked by, and highly sensitive to, alpha-bungarotoxin. Once this receptor binds acetylcholine, it undergoes an extensive change in conformation that affects all subunits and leads to opening of an ion-conducting channel across the plasma membrane. This gene is located in a region identified as a major susceptibility locus for juvenile myoclonic epilepsy and a chromosomal location involved in the genetic transmission of schizophrenia. An evolutionarily recent partial duplication event in this region results in a hybrid containing sequence from this gene and a novel FAM7A gene. Alternative splicing results in multiple transcript variants. [provided by RefSeq, Feb 2012]
