RFXANK (NM_003721) Human Tagged ORF Clone

SKU RC220744

RFXANK (Myc-DDK-tagged)-Human regulatory factor X-associated ankyrin-containing protein (RFXANK), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: RFXANK
• Synonyms: ANKRA1; BLS; F14150_1; RFX-B
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

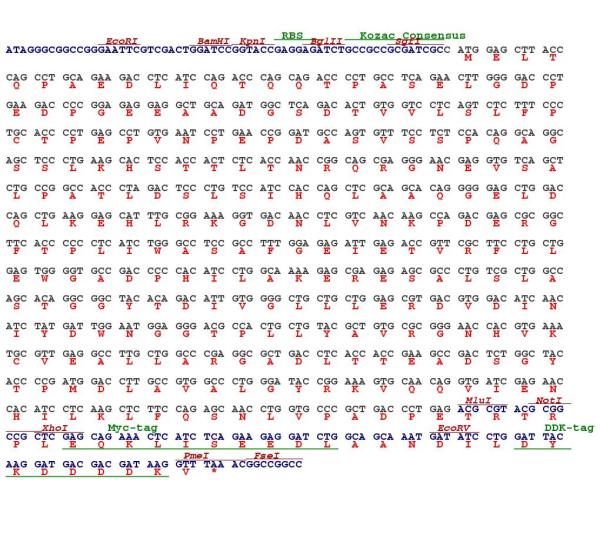

  ORF Nucleotide Sequence

  >RC220744 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGAGCTTACCCAGCCTGCAGAAGACCTCATCCAGACCCAGCAGACCCCTGCCTCAGAACTTGGGGACC; CTGAAGACCCCGGAGAGGAGGCTGCAGATGGCTCAGACACTGTGGTCCTCAGTCTCTTTCCCTGCACCCC; TGAGCCTGTGAATCCTGAACCGGATGCCAGTGTTTCCTCTCCACAGGCAGGCAGCTCCCTGAAGCACTCC; ACCACTCTCACCAACCGGCAGCGAGGGAACGAGGTGTCAGCTCTGCCGGCCACCCTAGACTCCCTGTCCA; TCCACCAGCTCGCAGCACAGGGGGAGCTGGACCAGCTGAAGGAGCATTTGCGGAAAGGTGACAACCTCGT; CAACAAGCCAGACGAGCGCGGCTTCACCCCCCTCATCTGGGCCTCCGCCTTTGGAGAGATTGAGACCGTT; CGCTTCCTGCTGGAGTGGGGTGCCGACCCCCACATCCTGGCAAAAGAGCGAGAGAGCGCCCTGTCGCTGG; CCAGCACAGGCGGCTACACAGACATTGTGGGGCTGCTGCTGGAGCGTGACGTGGACATCAACATCTATGA; TTGGAATGGAGGGACGCCACTGCTGTACGCTGTGCGCGGGAACCACGTGAAATGCGTTGAGGCCTTGCTG; GCCCGAGGCGCTGACCTCACCACCGAAGCCGACTCTGGCTACACCCCGATGGACCTTGCCGTGGCCCTGG; GATACCGGAAAGTGCAACAGGTGATCGAGAACCACATCCTCAAGCTCTTCCAGAGCAACCTGGTGCCCGC; TGACCCTGAG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC220744 protein sequence; Red=Cloning site Green=Tags(s); ; MELTQPAEDLIQTQQTPASELGDPEDPGEEAADGSDTVVLSLFPCTPEPVNPEPDASVSSPQAGSSLKHS; TTLTNRQRGNEVSALPATLDSLSIHQLAAQGELDQLKEHLRKGDNLVNKPDERGFTPLIWASAFGEIETV; RFLLEWGADPHILAKERESALSLASTGGYTDIVGLLLERDVDINIYDWNGGTPLLYAVRGNHVKCVEALL; ARGADLTTEADSGYTPMDLAVALGYRKVQQVIENHILKLFQSNLVPADPE; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_003721
• ORF Size: 780 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_003721.4
• RefSeq Size: 1455 bp
• RefSeq ORF: 783 bp
• Locus ID: 8625
• UniProt ID: O14593
• Cytogenetics: 19p13.11
• Domains: ANK
• Protein Families: Druggable Genome, Transcription Factors
• Protein Pathways: Antigen processing and presentation, Primary immunodeficiency
• MW: 28.1 kDa
• Summary: Major histocompatibility (MHC) class II molecules are transmembrane proteins that have a central role in development and control of the immune system. The protein encoded by this gene, along with regulatory factor X-associated protein and regulatory factor-5, forms a complex that binds to the X box motif of certain MHC class II gene promoters and activates their transcription. Once bound to the promoter, this complex associates with the non-DNA-binding factor MHC class II transactivator, which controls the cell type specificity and inducibility of MHC class II gene expression. This protein contains ankyrin repeats involved in protein-protein interactions. Mutations in this gene have been linked to bare lymphocyte syndrome type II, complementation group B. Multiple alternatively spliced transcript variants encoding different isoforms have been described for this gene. [provided by RefSeq, Jul 2013]
