AK3L1 (AK4) (NM_013410) Human Tagged ORF Clone

SKU RC220572

AK4 (Myc-DDK-tagged)-Human adenylate kinase 4 (AK4), nuclear gene encoding mitochondrial protein, transcript variant 6

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: AK3L1
• Synonyms: AK3; AK3L1; AK3L2; AK 4
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

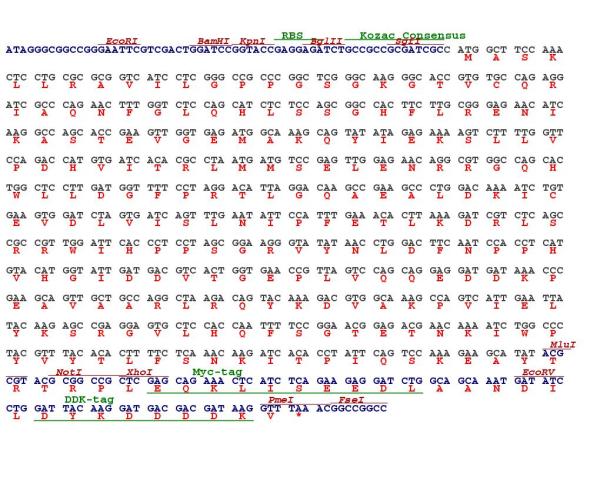

  ORF Nucleotide Sequence

  >RC220572 representing NM_013410; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCTTCCAAACTCCTGCGCGCGGTCATCCTCGGGCCGCCCGGCTCGGGCAAGGGCACCGTGTGCCAGA; GGATCGCCCAGAACTTTGGTCTCCAGCATCTCTCCAGCGGCCACTTCTTGCGGGAGAACATCAAGGCCAG; CACCGAAGTTGGTGAGATGGCAAAGCAGTATATAGAGAAAAGTCTTTTGGTTCCAGACCATGTGATCACA; CGCCTAATGATGTCCGAGTTGGAGAACAGGCGTGGCCAGCACTGGCTCCTTGATGGTTTTCCTAGGACAT; TAGGACAAGCCGAAGCCCTGGACAAAATCTGTGAAGTGGATCTAGTGATCAGTTTGAATATTCCATTTGA; AACACTTAAAGATCGTCTCAGCCGCCGTTGGATTCACCCTCCTAGCGGAAGGGTATATAACCTGGACTTC; AATCCACCTCATGTACATGGTATTGATGACGTCACTGGTGAACCGTTAGTCCAGCAGGAGGATGATAAAC; CCGAAGCAGTTGCTGCCAGGCTAAGACAGTACAAAGACGTGGCAAAGCCAGTCATTGAATTATACAAGAG; CCGAGGAGTGCTCCACCAATTTTCCGGAACGGAGACGAACAAAATCTGGCCCTACGTTTACACACTTTTC; TCAAACAAGATCACACCTATTCAGTCCAAAGAAGCATAT; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC220572 representing NM_013410; Red=Cloning site Green=Tags(s); ; MASKLLRAVILGPPGSGKGTVCQRIAQNFGLQHLSSGHFLRENIKASTEVGEMAKQYIEKSLLVPDHVIT; RLMMSELENRRGQHWLLDGFPRTLGQAEALDKICEVDLVISLNIPFETLKDRLSRRWIHPPSGRVYNLDF; NPPHVHGIDDVTGEPLVQQEDDKPEAVAARLRQYKDVAKPVIELYKSRGVLHQFSGTETNKIWPYVYTLF; SNKITPIQSKEAY; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_013410
• ORF Size: 669 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_013410.4
• RefSeq Size: 2199 bp
• RefSeq ORF: 672 bp
• Locus ID: 205
• UniProt ID: P27144
• Cytogenetics: 1p31.3
• Domains: ADK, ADK_lid
• Protein Families: Druggable Genome
• Protein Pathways: Metabolic pathways, Purine metabolism
• MW: 25.1 kDa
• Summary: This gene encodes a member of the adenylate kinase family of enzymes. The encoded protein is localized to the mitochondrial matrix. Adenylate kinases regulate the adenine and guanine nucleotide compositions within a cell by catalyzing the reversible transfer of phosphate group among these nucleotides. Five isozymes of adenylate kinase have been identified in vertebrates. Expression of these isozymes is tissue-specific and developmentally regulated. A pseudogene for this gene has been located on chromosome 17. Three transcript variants encoding the same protein have been identified for this gene. Sequence alignment suggests that the gene defined by NM_013410, NM_203464, and NM_001005353 is located on chromosome 1. [provided by RefSeq, Jul 2008]
