Repulsive Guidance Molecule C (HFE2) (NM_145277) Human Tagged ORF Clone

SKU RC220228

HFE2 (Myc-DDK-tagged)-Human hemochromatosis type 2 (juvenile) (HFE2), transcript variant b

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Repulsive Guidance Molecule C
• Synonyms: HFE2; HFE2A; JH; RGMC
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

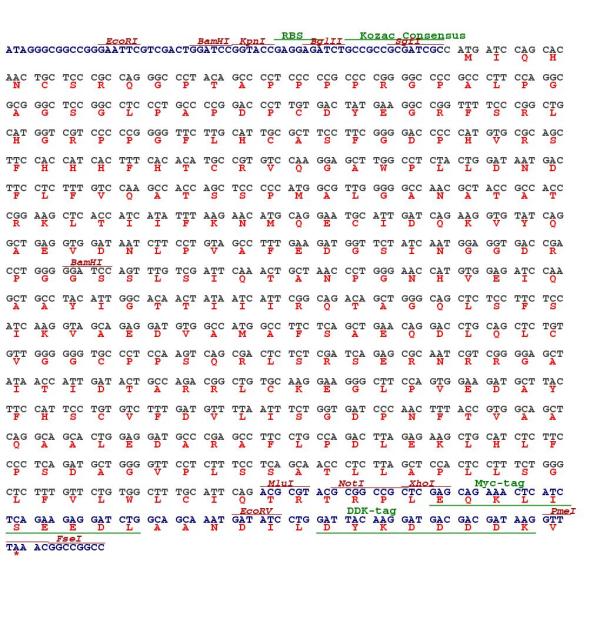

  ORF Nucleotide Sequence

  >RC220228 representing NM_145277; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGATCCAGCACAACTGCTCCCGCCAGGGCCCTACAGCCCCTCCCCCGCCCCGGGGCCCCGCCCTTCCAG; GCGCGGGCTCCGGCCTCCCTGCCCCGGACCCTTGTGACTATGAAGGCCGGTTTTCCCGGCTGCATGGTCG; TCCCCCGGGGTTCTTGCATTGCGCTTCCTTCGGGGACCCCCATGTGCGCAGCTTCCACCATCACTTTCAC; ACATGCCGTGTCCAAGGAGCTTGGCCTCTACTGGATAATGACTTCCTCTTTGTCCAAGCCACCAGCTCCC; CCATGGCGTTGGGGGCCAACGCTACCGCCACCCGGAAGCTCACCATCATATTTAAGAACATGCAGGAATG; CATTGATCAGAAGGTGTATCAGGCTGAGGTGGATAATCTTCCTGTAGCCTTTGAAGATGGTTCTATCAAT; GGAGGTGACCGACCTGGGGGATCCAGTTTGTCGATTCAAACTGCTAACCCTGGGAACCATGTGGAGATCC; AAGCTGCCTACATTGGCACAACTATAATCATTCGGCAGACAGCTGGGCAGCTCTCCTTCTCCATCAAGGT; AGCAGAGGATGTGGCCATGGCCTTCTCAGCTGAACAGGACCTGCAGCTCTGTGTTGGGGGGTGCCCTCCA; AGTCAGCGACTCTCTCGATCAGAGCGCAATCGTCGGGGAGCTATAACCATTGATACTGCCAGACGGCTGT; GCAAGGAAGGGCTTCCAGTGGAAGATGCTTACTTCCATTCCTGTGTCTTTGATGTTTTAATTTCTGGTGA; TCCCAACTTTACCGTGGCAGCTCAGGCAGCACTGGAGGATGCCCGAGCCTTCCTGCCAGACTTAGAGAAG; CTGCATCTCTTCCCCTCAGATGCTGGGGTTCCTCTTTCCTCAGCAACCCTCTTAGCTCCACTCCTTTCTG; GGCTCTTTGTTCTGTGGCTTTGCATTCAG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC220228 representing NM_145277; Red=Cloning site Green=Tags(s); ; MIQHNCSRQGPTAPPPPRGPALPGAGSGLPAPDPCDYEGRFSRLHGRPPGFLHCASFGDPHVRSFHHHFH; TCRVQGAWPLLDNDFLFVQATSSPMALGANATATRKLTIIFKNMQECIDQKVYQAEVDNLPVAFEDGSIN; GGDRPGGSSLSIQTANPGNHVEIQAAYIGTTIIIRQTAGQLSFSIKVAEDVAMAFSAEQDLQLCVGGCPP; SQRLSRSERNRRGAITIDTARRLCKEGLPVEDAYFHSCVFDVLISGDPNFTVAAQAALEDARAFLPDLEK; LHLFPSDAGVPLSSATLLAPLLSGLFVLWLCIQ; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_145277
• ORF Size: 939 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_145277.5
• RefSeq Size: 1961 bp
• RefSeq ORF: 942 bp
• Locus ID: 148738
• UniProt ID: Q6ZVN8
• Cytogenetics: 1q21.1
• Protein Families: Transmembrane
• MW: 33.5 kDa
• Summary: The product of this gene is involved in iron metabolism. It may be a component of the signaling pathway which activates hepcidin or it may act as a modulator of hepcidin expression. It could also represent the cellular receptor for hepcidin. Two uORFs in the 5' UTR negatively regulate the expression and activity of the encoded protein. Alternatively spliced transcript variants encoding different isoforms have been identified for this gene. Defects in this gene are the cause of hemochromatosis type 2A, also called juvenile hemochromatosis (JH). JH is an early-onset autosomal recessive disorder due to severe iron overload resulting in hypogonadotrophic hypogonadism, hepatic fibrosis or cirrhosis and cardiomyopathy, occurring typically before age of 30. [provided by RefSeq, Oct 2015]
