OFD1 (NM_003611) Human Tagged ORF Clone
SKU
RC220154
OFD1 (Myc-DDK-tagged)-Human oral-facial-digital syndrome 1 (OFD1)
-
TrueORF Gold
Protein expression verified by Western blot, fully sequenced and in stock
Click here to learn more.
Product Data | |
Type | Human Tagged ORF Clone |
---|---|
Target Symbol | OFD1 |
Synonyms | 71-7A; CXorf5; JBTS10; RP23; SGBS2 |
Vector | pCMV6-Entry |
E. coli Selection | Kanamycin (25 ug/mL) |
Mammalian Cell Selection | Neomycin |
Sequence Data |
ORF Nucleotide Sequence
>RC220154 representing NM_003611
Red=Cloning site Blue=ORF Green=Tags(s) TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC GCCGCGATCGCC ATGATGGCGCAGTCCAACATGTTTACCGTGGCTGATGTGTTGAGTCAAGATGAACTGCGCAAAAAGCTAT ACCAGACGTTTAAGGATCGGGGTATACTGGATACACTCAAGACACAACTTCGAAACCAGCTAATTCATGA GTTGATGCACCCTGTATTGAGTGGAGAACTGCAGCCTCGGTCCATTTCAGTAGAAGGGAGCTCCCTCTTA ATAGGCGCCTCTAACTCTTTAGTGGCAGATCACTTACAAAGATGTGGCTATGAATATTCACTTTCTGTTT TCTTTCCAGAAAGTGGTTTGGCAAAAGAAAAGGTATTTACTATGCAGGATCTATTACAACTCATTAAAAT CAACCCTACTTCCAGTCTCTACAAATCACTGGTTTCAGGATCTGATAAAGAAAATCAAAAAGGTTTTCTT ATGCATTTTTTAAAAGAATTGGCAGAATATCATCAAGCTAAAGAGAGTTGTAATATGGAAACTCAGACAA GTTCGACATTTAACAGAGATTCTCTGGCTGAGAAGCTTCAGCTTATTGATGATCAGTTTGCAGATGCTTA CCCTCAGCGTATCAAGTTCGAATCTTTAGAAATAAAGCTAAATGAGTATAAGAGAGAAATAGAAGAGCAA CTTCGGGCAGAAATGTGTCAAAAGTTGAAGTTTTTTAAAGATACCGAGATAGCAAAAATTAAAATGGAAG CAAAAAAAAAGTATGAAAAGGAGTTAACCATGTTCCAGAATGATTTTGAAAAAGCTTGTCAAGCAAAATC TGAAGCTCTCGTTCTTCGGGAAAAGAGTACCCTTGAAAGAATTCACAAGCACCAAGAGATTGAAACAAAA GAAATTTATGCTCAAAGGCAACTTTTACTAAAAGATATGGATTTGCTAAGAGGAAGAGAAGCAGAGCTGA AGCAAAGAGTTGAAGCTTTTGAATTGAACCAGAAGCTCCAGGAAGAAAAACATAAAAGCATAACTGAGGC ACTTAGGAGACAGGAGCAGAATATAAAGAGTTTTGAGGAGACCTATGACCGAAAGCTCAAGAATGAACTT CTAAAGTATCAACTTGAACTGAAGGATGACTACATCATTAGAACTAATCGACTGATTGAAGATGAAAGGA AGAATAAAGAAAAAGCTGTTCATTTGCAAGAGGAGCTCATAGCTATTAATTCAAAAAAGGAGGAACTCAA TCAATCTGTAAATCGTGTGAAAGAACTTGAGCTTGAATTAGAGTCTGTCAAAGCCCAGTCTTTGGCAATA ACAAAACAAAACCATATGCTGAATGAAAAGGTTAAAGAGATGAGTGATTATTCACTACTAAAAGAAGAGA AACTGGAGCTTCTGGCACAAAATAAATTACTTAAACAACAACTGGAAGAGAGTAGAAATGAAAACCTGCG TCTCCTAAACCGCCTAGCTCAGCCGGCTCCTGAACTTGCAGTCTTTCAGAAAGAACTACGGAAAGCCGAA AAGGCTATAGTGGTTGAGCATGAGGAGTTCGAAAGCTGCAGGCAAGCTCTGCACAAACAACTGCAAGACG AAATTGAGCATTCTGCACAGCTGAAGGCCCAGATTCTAGGTTACAAAGCTTCTGTAAAGAGTTTAACTAC TCAGGTTGCCGATTTAAAATTGCAACTGAAGCAAACTCAGACAGCCCTAGAGAATGAAGTGTACTGCAAT CCAAAGCAGTCTGTGATCGATCGTTCTGTCAATGGATTAATAAATGGCAATGTGGTGCCTTGCAATGGTG AGATAAGTGGGGATTTCTTGAACAATCCTTTTAAACAGGAAAACGTTCTAGCACGTATGGTTGCATCAAG GATCACAAATTATCCAACTGCATGGGTGGAGGGTAGTTCCCCTGATTCTGACCTTGAGTTTGTAGCCAAT ACTAAGGCAAGGGTCAAAGAGCTTCAGCAAGAGGCCGAACGCTTGGAAAAGGCTTTCAGAAGTTACCATC GGAGAGTCATTAAAAACTCTGCCAAAAGCCCACTAGCAGCAAAGAGCCCACCATCTCTGCACTTGCTGGA AGCCTTCAAAAACATTACTTCCAGTTCCCCGGAAAGACATATTTTTGGAGAGGACAGAGTTGTCTCTGAG CAGCCTCAAGTGGGCACACTTGAAGAAAGGAATGACGTCGTGGAAGCACTGACAGGCAGTGCAGCCTCGA GGCTCCGCGGGGGCACTTCCTCCAGACGCCTCTCTTCCACACCCCTTCCAAAAGCAAAAAGAAGCCTCGA AAGTGAAATGTATCTGGAAGGTCTGGGCAGATCACACATTGCTTCCCCCAGTCCTTGTCCTGACAGAATG CCCCTACCATCACCCACTGAGTCTAGGCACAGCCTCTCCATCCCTCCTGTCTCCAGCCCTCCGGAGCAGA AAGTGGGTCTTTATCGAAGACAAACTGAACTTCAAGACAAAAGTGAATTTTCAGATGTGGACAAGCTAGC TTTTAAGGATAATGAGGAGTTTGAATCATCTTTTGAATCTGCAGGGAACATGCCAAGGCAGTTGGAAATG GGCGGGCTTTCTCCTGCCGGGGATATGTCTCATGTGGACGCTGCTGCAGCTGCTGTGCCCCTCTCATATC AGCACCCAAGTGTAGATCAGAAACAAATTGAAGAACAAAAGGAAGAAGAAAAAATACGGGAACAGCAAGT GAAAGAACGAAGGCAGAGAGAAGAAAGAAGGCAGAGTAACCTACAAGAAGTTTTAGAAAGGGAACGAAGA GAACTAGAAAAACTGTATCAGGAAAGGAAGATGATTGAAGAATCACTGAAGATTAAAATAAAAAAGGAAT TAGAAATGGAAAATGAATTAGAAATGAGTAATCAAGAAATAAAAGACAAATCTGCTCACAGTGAAAATCC TTTAGAGAAATACATGAAAATCATCCAGCAGGAGCAAGACCAGGAGTCGGCAGATAAGAGCTCAAAAAAG ATGGTCCAAGAAGGCTCCCTAGTGGACACGCTGCAATCTAGTGACAAAGTCGAAAGTTTAACAGGCTTTT CTCATGAAGAACTAGACGACTCTTGG ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT ACAAGGATGACGACGATAAGGTTTAA
Protein Sequence
>RC220154 representing NM_003611
Red=Cloning site Green=Tags(s) MMAQSNMFTVADVLSQDELRKKLYQTFKDRGILDTLKTQLRNQLIHELMHPVLSGELQPRSISVEGSSLL IGASNSLVADHLQRCGYEYSLSVFFPESGLAKEKVFTMQDLLQLIKINPTSSLYKSLVSGSDKENQKGFL MHFLKELAEYHQAKESCNMETQTSSTFNRDSLAEKLQLIDDQFADAYPQRIKFESLEIKLNEYKREIEEQ LRAEMCQKLKFFKDTEIAKIKMEAKKKYEKELTMFQNDFEKACQAKSEALVLREKSTLERIHKHQEIETK EIYAQRQLLLKDMDLLRGREAELKQRVEAFELNQKLQEEKHKSITEALRRQEQNIKSFEETYDRKLKNEL LKYQLELKDDYIIRTNRLIEDERKNKEKAVHLQEELIAINSKKEELNQSVNRVKELELELESVKAQSLAI TKQNHMLNEKVKEMSDYSLLKEEKLELLAQNKLLKQQLEESRNENLRLLNRLAQPAPELAVFQKELRKAE KAIVVEHEEFESCRQALHKQLQDEIEHSAQLKAQILGYKASVKSLTTQVADLKLQLKQTQTALENEVYCN PKQSVIDRSVNGLINGNVVPCNGEISGDFLNNPFKQENVLARMVASRITNYPTAWVEGSSPDSDLEFVAN TKARVKELQQEAERLEKAFRSYHRRVIKNSAKSPLAAKSPPSLHLLEAFKNITSSSPERHIFGEDRVVSE QPQVGTLEERNDVVEALTGSAASRLRGGTSSRRLSSTPLPKAKRSLESEMYLEGLGRSHIASPSPCPDRM PLPSPTESRHSLSIPPVSSPPEQKVGLYRRQTELQDKSEFSDVDKLAFKDNEEFESSFESAGNMPRQLEM GGLSPAGDMSHVDAAAAAVPLSYQHPSVDQKQIEEQKEEEKIREQQVKERRQREERRQSNLQEVLERERR ELEKLYQERKMIEESLKIKIKKELEMENELEMSNQEIKDKSAHSENPLEKYMKIIQQEQDQESADKSSKK MVQEGSLVDTLQSSDKVESLTGFSHEELDDSW TRTRPLEQKLISEEDLAANDILDYKDDDDKV |
Chromatograms |
Chromatograms
![]() Sequencher program is needed, download here |
Restriction Sites |

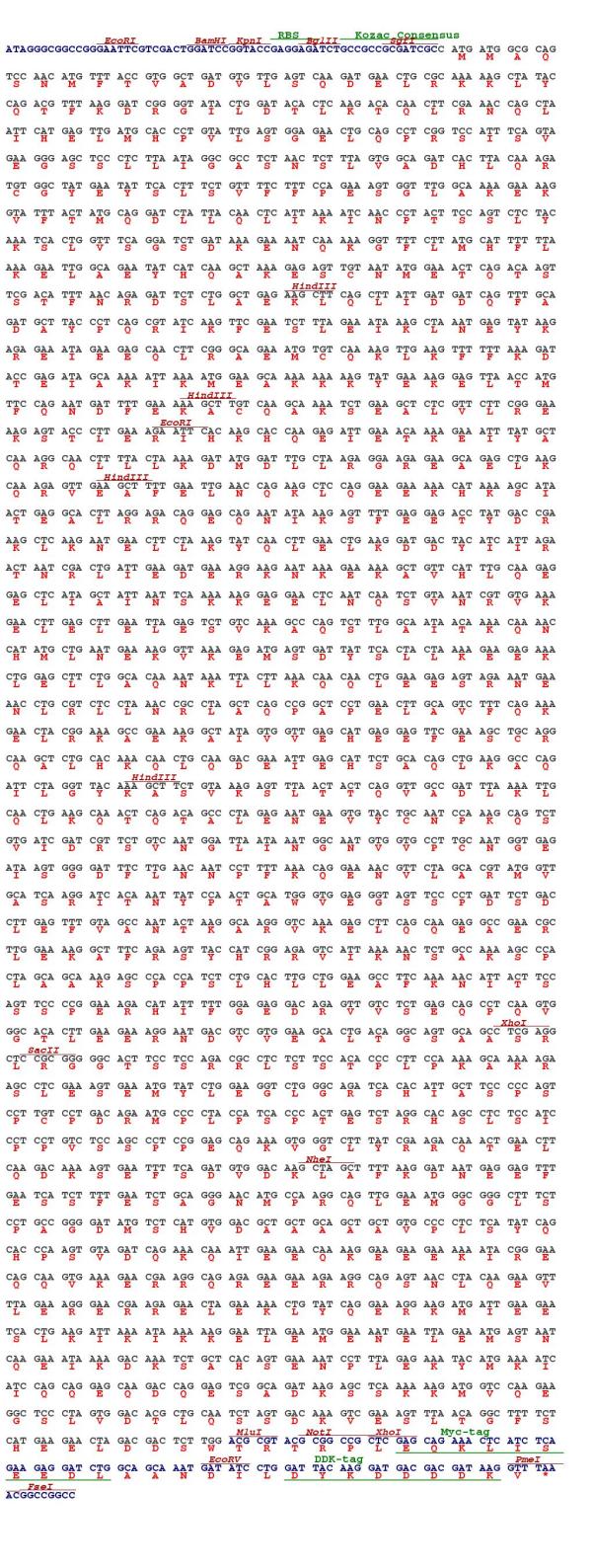

SgfI-MluI Cloning Scheme for this gene
Plasmid Map
![]() |
ACCN | NM_003611 |
ORF Size | 3036 bp |
OTI Disclaimer | The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info |
OTI Annotation | This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene. |
Components | The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water). |
Reconstitution Method | 1. Centrifuge at 5,000xg for 5min. 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA. 3. Close the tube and incubate for 10 minutes at room temperature. 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom. 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C. |
Note | Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required. |
Shipping | Ambient |
Reference Data | |
RefSeq | NM_003611.3 |
RefSeq Size | 3615 bp |
RefSeq ORF | 3039 bp |
Locus ID | 8481 |
UniProt ID | O75665 |
Cytogenetics | Xp22.2 |
Domains | LisH |
Protein Families | Druggable Genome |
MW | 116.5 kDa |
Summary | This gene is located on the X chromosome and encodes a centrosomal protein. A knockout mouse model has been used to study the effect of mutations in this gene. The mouse gene is also located on the X chromosome, however, unlike the human gene it is not subject to X inactivation. Mutations in this gene are associated with oral-facial-digital syndrome type I and Simpson-Golabi-Behmel syndrome type 2. Many pseudogenes have been identified; a single pseudogene is found on chromosome 5 while as many as fifteen have been found on the Y chromosome. [provided by RefSeq, Aug 2016] |
