Factor IX (F9) (NM_000133) Human Tagged ORF Clone

SKU RC219065

F9 (Myc-DDK-tagged)-Human coagulation factor IX (F9)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Factor IX
• Synonyms: F9 p22; FIX; HEMB; P19; PTC; THPH8
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

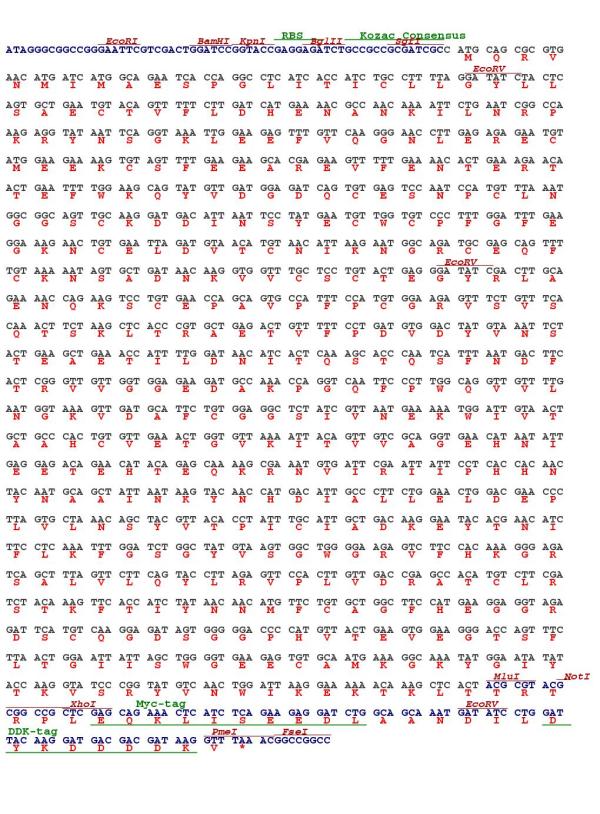

  ORF Nucleotide Sequence

  >RC219065 representing NM_000133; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCAGCGCGTGAACATGATCATGGCAGAATCACCAGGCCTCATCACCATCTGCCTTTTAGGATATCTAC; TCAGTGCTGAATGTACAGTTTTTCTTGATCATGAAAACGCCAACAAAATTCTGAATCGGCCAAAGAGGTA; TAATTCAGGTAAATTGGAAGAGTTTGTTCAAGGGAACCTTGAGAGAGAATGTATGGAAGAAAAGTGTAGT; TTTGAAGAAGCACGAGAAGTTTTTGAAAACACTGAAAGAACAACTGAATTTTGGAAGCAGTATGTTGATG; GAGATCAGTGTGAGTCCAATCCATGTTTAAATGGCGGCAGTTGCAAGGATGACATTAATTCCTATGAATG; TTGGTGTCCCTTTGGATTTGAAGGAAAGAACTGTGAATTAGATGTAACATGTAACATTAAGAATGGCAGA; TGCGAGCAGTTTTGTAAAAATAGTGCTGATAACAAGGTGGTTTGCTCCTGTACTGAGGGATATCGACTTG; CAGAAAACCAGAAGTCCTGTGAACCAGCAGTGCCATTTCCATGTGGAAGAGTTTCTGTTTCACAAACTTC; TAAGCTCACCCGTGCTGAGACTGTTTTTCCTGATGTGGACTATGTAAATTCTACTGAAGCTGAAACCATT; TTGGATAACATCACTCAAAGCACCCAATCATTTAATGACTTCACTCGGGTTGTTGGTGGAGAAGATGCCA; AACCAGGTCAATTCCCTTGGCAGGTTGTTTTGAATGGTAAAGTTGATGCATTCTGTGGAGGCTCTATCGT; TAATGAAAAATGGATTGTAACTGCTGCCCACTGTGTTGAAACTGGTGTTAAAATTACAGTTGTCGCAGGT; GAACATAATATTGAGGAGACAGAACATACAGAGCAAAAGCGAAATGTGATTCGAATTATTCCTCACCACA; ACTACAATGCAGCTATTAATAAGTACAACCATGACATTGCCCTTCTGGAACTGGACGAACCCTTAGTGCT; AAACAGCTACGTTACACCTATTTGCATTGCTGACAAGGAATACACGAACATCTTCCTCAAATTTGGATCT; GGCTATGTAAGTGGCTGGGGAAGAGTCTTCCACAAAGGGAGATCAGCTTTAGTTCTTCAGTACCTTAGAG; TTCCACTTGTTGACCGAGCCACATGTCTTCGATCTACAAAGTTCACCATCTATAACAACATGTTCTGTGC; TGGCTTCCATGAAGGAGGTAGAGATTCATGTCAAGGAGATAGTGGGGGACCCCATGTTACTGAAGTGGAA; GGGACCAGTTTCTTAACTGGAATTATTAGCTGGGGTGAAGAGTGTGCAATGAAAGGCAAATATGGAATAT; ATACCAAGGTATCCCGGTATGTCAACTGGATTAAGGAAAAAACAAAGCTCACT; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC219065 representing NM_000133; Red=Cloning site Green=Tags(s); ; MQRVNMIMAESPGLITICLLGYLLSAECTVFLDHENANKILNRPKRYNSGKLEEFVQGNLERECMEEKCS; FEEAREVFENTERTTEFWKQYVDGDQCESNPCLNGGSCKDDINSYECWCPFGFEGKNCELDVTCNIKNGR; CEQFCKNSADNKVVCSCTEGYRLAENQKSCEPAVPFPCGRVSVSQTSKLTRAETVFPDVDYVNSTEAETI; LDNITQSTQSFNDFTRVVGGEDAKPGQFPWQVVLNGKVDAFCGGSIVNEKWIVTAAHCVETGVKITVVAG; EHNIEETEHTEQKRNVIRIIPHHNYNAAINKYNHDIALLELDEPLVLNSYVTPICIADKEYTNIFLKFGS; GYVSGWGRVFHKGRSALVLQYLRVPLVDRATCLRSTKFTIYNNMFCAGFHEGGRDSCQGDSGGPHVTEVE; GTSFLTGIISWGEECAMKGKYGIYTKVSRYVNWIKEKTKLT; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000133
• ORF Size: 1383 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000133.4
• RefSeq Size: 2804 bp
• RefSeq ORF: 1386 bp
• Locus ID: 2158
• UniProt ID: P00740
• Cytogenetics: Xq27.1
• Domains: EGF, EGF_CA, GLA, Tryp_SPc
• Protein Families: Druggable Genome, Protease, Secreted Protein
• Protein Pathways: Complement and coagulation cascades
• MW: 51.78 kDa
• Summary: This gene encodes vitamin K-dependent coagulation factor IX that circulates in the blood as an inactive zymogen. This factor is converted to an active form by factor XIa, which excises the activation peptide and thus generates a heavy chain and a light chain held together by one or more disulfide bonds. The role of this activated factor IX in the blood coagulation cascade is to activate factor X to its active form through interactions with Ca+2 ions, membrane phospholipids, and factor VIII. Alterations of this gene, including point mutations, insertions and deletions, cause factor IX deficiency, which is a recessive X-linked disorder, also called hemophilia B or Christmas disease. Alternative splicing results in multiple transcript variants encoding different isoforms that may undergo similar proteolytic processing. [provided by RefSeq, Sep 2015]
