Neuropilin 1 (NRP1) (NM_003873) Human Tagged ORF Clone

SKU RC217035

NRP1 (Myc-DDK-tagged)-Human neuropilin 1 (NRP1), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Neuropilin 1
• Synonyms: BDCA4; CD304; NP1; NRP; VEGF165R
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

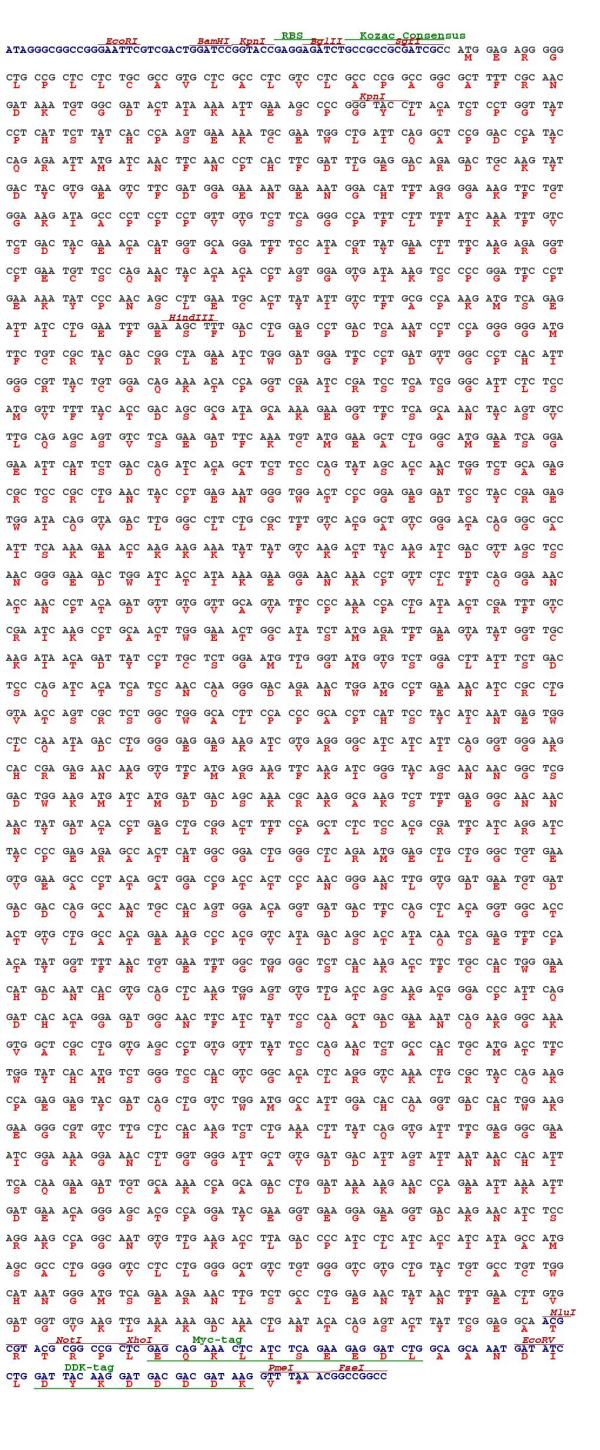

  ORF Nucleotide Sequence

  >RC217035 representing NM_003873; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGAGAGGGGGCTGCCGCTCCTCTGCGCCGTGCTCGCCCTCGTCCTCGCCCCGGCCGGCGCTTTTCGCA; ACGATAAATGTGGCGATACTATAAAAATTGAAAGCCCCGGGTACCTTACATCTCCTGGTTATCCTCATTC; TTATCACCCAAGTGAAAAATGCGAATGGCTGATTCAGGCTCCGGACCCATACCAGAGAATTATGATCAAC; TTCAACCCTCACTTCGATTTGGAGGACAGAGACTGCAAGTATGACTACGTGGAAGTCTTCGATGGAGAAA; ATGAAAATGGACATTTTAGGGGAAAGTTCTGTGGAAAGATAGCCCCTCCTCCTGTTGTGTCTTCAGGGCC; ATTTCTTTTTATCAAATTTGTCTCTGACTACGAAACACATGGTGCAGGATTTTCCATACGTTATGAACTT; TTCAAGAGAGGTCCTGAATGTTCCCAGAACTACACAACACCTAGTGGAGTGATAAAGTCCCCCGGATTCC; CTGAAAAATATCCCAACAGCCTTGAATGCACTTATATTGTCTTTGCGCCAAAGATGTCAGAGATTATCCT; GGAATTTGAAAGCTTTGACCTGGAGCCTGACTCAAATCCTCCAGGGGGGATGTTCTGTCGCTACGACCGG; CTAGAAATCTGGGATGGATTCCCTGATGTTGGCCCTCACATTGGGCGTTACTGTGGACAGAAAACACCAG; GTCGAATCCGATCCTCATCGGGCATTCTCTCCATGGTTTTTTACACCGACAGCGCGATAGCAAAAGAAGG; TTTCTCAGCAAACTACAGTGTCTTGCAGAGCAGTGTCTCAGAAGATTTCAAATGTATGGAAGCTCTGGGC; ATGGAATCAGGAGAAATTCATTCTGACCAGATCACAGCTTCTTCCCAGTATAGCACCAACTGGTCTGCAG; AGCGCTCCCGCCTGAACTACCCTGAGAATGGGTGGACTCCCGGAGAGGATTCCTACCGAGAGTGGATACA; GGTAGACTTGGGCCTTCTGCGCTTTGTCACGGCTGTCGGGACACAGGGCGCCATTTCAAAAGAAACCAAG; AAGAAATATTATGTCAAGACTTACAAGATCGACGTTAGCTCCAACGGGGAAGACTGGATCACCATAAAAG; AAGGAAACAAACCTGTTCTCTTTCAGGGAAACACCAACCCTACAGATGTTGTGGTTGCAGTATTCCCCAA; ACCACTGATAACTCGATTTGTCCGAATCAAGCCTGCAACTTGGGAAACTGGCATATCTATGAGATTTGAA; GTATATGGTTGCAAGATAACAGATTATCCTTGCTCTGGAATGTTGGGTATGGTGTCTGGACTTATTTCTG; ACTCCCAGATCACATCATCCAACCAAGGGGACAGAAACTGGATGCCTGAAAACATCCGCCTGGTAACCAG; TCGCTCTGGCTGGGCACTTCCACCCGCACCTCATTCCTACATCAATGAGTGGCTCCAAATAGACCTGGGG; GAGGAGAAGATCGTGAGGGGCATCATCATTCAGGGTGGGAAGCACCGAGAGAACAAGGTGTTCATGAGGA; AGTTCAAGATCGGGTACAGCAACAACGGCTCGGACTGGAAGATGATCATGGATGACAGCAAACGCAAGGC; GAAGTCTTTTGAGGGCAACAACAACTATGATACACCTGAGCTGCGGACTTTTCCAGCTCTCTCCACGCGA; TTCATCAGGATCTACCCCGAGAGAGCCACTCATGGCGGACTGGGGCTCAGAATGGAGCTGCTGGGCTGTG; AAGTGGAAGCCCCTACAGCTGGACCGACCACTCCCAACGGGAACTTGGTGGATGAATGTGATGACGACCA; GGCCAACTGCCACAGTGGAACAGGTGATGACTTCCAGCTCACAGGTGGCACCACTGTGCTGGCCACAGAA; AAGCCCACGGTCATAGACAGCACCATACAATCAGAGTTTCCAACATATGGTTTTAACTGTGAATTTGGCT; GGGGCTCTCACAAGACCTTCTGCCACTGGGAACATGACAATCACGTGCAGCTCAAGTGGAGTGTGTTGAC; CAGCAAGACGGGACCCATTCAGGATCACACAGGAGATGGCAACTTCATCTATTCCCAAGCTGACGAAAAT; CAGAAGGGCAAAGTGGCTCGCCTGGTGAGCCCTGTGGTTTATTCCCAGAACTCTGCCCACTGCATGACCT; TCTGGTATCACATGTCTGGGTCCCACGTCGGCACACTCAGGGTCAAACTGCGCTACCAGAAGCCAGAGGA; GTACGATCAGCTGGTCTGGATGGCCATTGGACACCAAGGTGACCACTGGAAGGAAGGGCGTGTCTTGCTC; CACAAGTCTCTGAAACTTTATCAGGTGATTTTCGAGGGCGAAATCGGAAAAGGAAACCTTGGTGGGATTG; CTGTGGATGACATTAGTATTAATAACCACATTTCACAAGAAGATTGTGCAAAACCAGCAGACCTGGATAA; AAAGAACCCAGAAATTAAAATTGATGAAACAGGGAGCACGCCAGGATACGAAGGTGAAGGAGAAGGTGAC; AAGAACATCTCCAGGAAGCCAGGCAATGTGTTGAAGACCTTAGACCCCATCCTCATCACCATCATAGCCA; TGAGCGCCCTGGGGGTCCTCCTGGGGGCTGTCTGTGGGGTCGTGCTGTACTGTGCCTGTTGGCATAATGG; GATGTCAGAAAGAAACTTGTCTGCCCTGGAGAACTATAACTTTGAACTTGTGGATGGTGTGAAGTTGAAA; AAAGACAAACTGAATACACAGAGTACTTATTCGGAGGCA; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC217035 representing NM_003873; Red=Cloning site Green=Tags(s); ; MERGLPLLCAVLALVLAPAGAFRNDKCGDTIKIESPGYLTSPGYPHSYHPSEKCEWLIQAPDPYQRIMIN; FNPHFDLEDRDCKYDYVEVFDGENENGHFRGKFCGKIAPPPVVSSGPFLFIKFVSDYETHGAGFSIRYEL; FKRGPECSQNYTTPSGVIKSPGFPEKYPNSLECTYIVFAPKMSEIILEFESFDLEPDSNPPGGMFCRYDR; LEIWDGFPDVGPHIGRYCGQKTPGRIRSSSGILSMVFYTDSAIAKEGFSANYSVLQSSVSEDFKCMEALG; MESGEIHSDQITASSQYSTNWSAERSRLNYPENGWTPGEDSYREWIQVDLGLLRFVTAVGTQGAISKETK; KKYYVKTYKIDVSSNGEDWITIKEGNKPVLFQGNTNPTDVVVAVFPKPLITRFVRIKPATWETGISMRFE; VYGCKITDYPCSGMLGMVSGLISDSQITSSNQGDRNWMPENIRLVTSRSGWALPPAPHSYINEWLQIDLG; EEKIVRGIIIQGGKHRENKVFMRKFKIGYSNNGSDWKMIMDDSKRKAKSFEGNNNYDTPELRTFPALSTR; FIRIYPERATHGGLGLRMELLGCEVEAPTAGPTTPNGNLVDECDDDQANCHSGTGDDFQLTGGTTVLATE; KPTVIDSTIQSEFPTYGFNCEFGWGSHKTFCHWEHDNHVQLKWSVLTSKTGPIQDHTGDGNFIYSQADEN; QKGKVARLVSPVVYSQNSAHCMTFWYHMSGSHVGTLRVKLRYQKPEEYDQLVWMAIGHQGDHWKEGRVLL; HKSLKLYQVIFEGEIGKGNLGGIAVDDISINNHISQEDCAKPADLDKKNPEIKIDETGSTPGYEGEGEGD; KNISRKPGNVLKTLDPILITIIAMSALGVLLGAVCGVVLYCACWHNGMSERNLSALENYNFELVDGVKLK; KDKLNTQSTYSEA; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_003873
• ORF Size: 2769 bp
• OTI Disclaimer: Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.; ; The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_003873.7
• RefSeq Size: 5890 bp
• RefSeq ORF: 2772 bp
• Locus ID: 8829
• UniProt ID: O14786
• Cytogenetics: 10p11.22
• Domains: CUB, F5_F8_type_C, MAM
• Protein Families: Druggable Genome, Secreted Protein, Transmembrane
• Protein Pathways: Axon guidance
• MW: 102.9 kDa
• Summary: This gene encodes one of two neuropilins, which contain specific protein domains which allow them to participate in several different types of signaling pathways that control cell migration. Neuropilins contain a large N-terminal extracellular domain, made up of complement-binding, coagulation factor V/VIII, and meprin domains. These proteins also contains a short membrane-spanning domain and a small cytoplasmic domain. Neuropilins bind many ligands and various types of co-receptors; they affect cell survival, migration, and attraction. Some of the ligands and co-receptors bound by neuropilins are vascular endothelial growth factor (VEGF) and semaphorin family members. This protein has also been determined to act as a co-receptor for SARS-CoV-2 (which causes COVID-19) to infect host cells. [provided by RefSeq, Nov 2020]
