TSH beta (TSHB) (NM_000549) Human Tagged ORF Clone

SKU RC216914

TSHB (Myc-DDK-tagged)-Human thyroid stimulating hormone, beta (TSHB)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: TSH beta
• Synonyms: TSH-B; TSH-BETA
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RC216914 representing NM_000549; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGACTGCTCTCTTTCTGATGTCCATGCTTTTTGGCCTTGCATGTGGGCAAGCGATGTCTTTTTGTATTC; CAACTGAGTATACAATGCACATCGAAAGGAGAGAGTGTGCTTATTGCCTAACCATCAACACCACCATCTG; TGCTGGATATTGTATGACACGGGATATCAATGGCAAACTGTTTCTTCCCAAATATGCTCTGTCCCAGGAT; GTTTGCACATATAGAGACTTCATCTACAGGACTGTAGAAATACCAGGATGCCCACTCCATGTTGCTCCCT; ATTTTTCCTATCCTGTTGCTTTAAGCTGTAAGTGTGGCAAGTGCAATACTGACTATAGTGACTGCATACA; TGAAGCCATCAAGACAAACTACTGTACCAAACCTCAGAAGTCTTATCTGGTAGGATTTTCTGTC; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC216914 representing NM_000549; Red=Cloning site Green=Tags(s); ; MTALFLMSMLFGLACGQAMSFCIPTEYTMHIERRECAYCLTINTTICAGYCMTRDINGKLFLPKYALSQD; VCTYRDFIYRTVEIPGCPLHVAPYFSYPVALSCKCGKCNTDYSDCIHEAIKTNYCTKPQKSYLVGFSV; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here

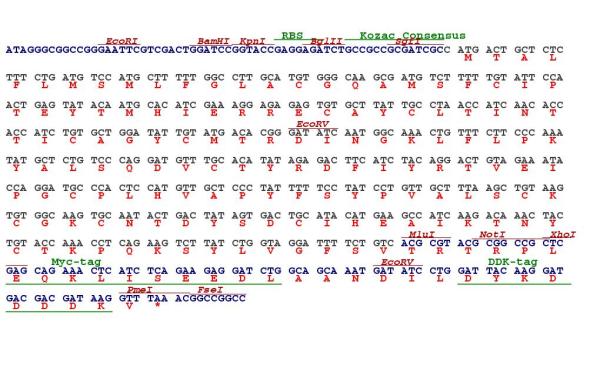

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000549
• ORF Size: 414 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000549.2, NP_000540.1
• RefSeq Size: 578 bp
• RefSeq ORF: 417 bp
• Locus ID: 7252
• UniProt ID: P01222
• Cytogenetics: 1p13.2
• Protein Families: Druggable Genome, Secreted Protein
• Protein Pathways: Autoimmune thyroid disease, Neuroactive ligand-receptor interaction
• MW: 15.61 kDa
• Summary: The four human glycoprotein hormones chorionic gonadotropin (CG), luteinizing hormone (LH), follicle stimulating hormone (FSH), and thyroid stimulating hormone (TSH) are dimers consisting of alpha and beta subunits that are associated noncovalently. The alpha subunits of these hormones are identical, however, their beta chains are unique and confer biological specificity. Thyroid stimulating hormone functions in the control of thyroid structure and metabolism. The protein encoded by this gene is the beta subunit of thyroid stimulating hormone. Mutations in this gene are associated with congenital central and secondary hypothyroidism and Hashimoto's thyroiditis. Alternative splicing of this gene results in multiple transcript variants. [provided by RefSeq, May 2013]
