SLC25A23 (NM_024103) Human Tagged ORF Clone

SKU RC216470

SLC25A23 (Myc-DDK-tagged)-Human solute carrier family 25 (mitochondrial carrier, phosphate carrier), member 23 (SLC25A23), nuclear gene encoding mitochondrial protein

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: SLC25A23
• Synonyms: APC2; MCSC2; SCaMC-3
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RC216470 representing NM_024103; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCGGGGGAGCCCGGGCGACGCGGAGCGGCGGCAGCGCTGGGGTCGCCTGTTCGAGGAGCTGGACAGTA; ACAAGGATGGCCGCGTGGACGTGCACGAGTTGCGCCAGGGGCTGGCCAGGCTGGGCGGGGGCAACCCAGA; CCCCGGCGCCCAACAGGGTATCTCCTCTGAGGGTGATGCTGACCCAGATGGCGGGCTCGACCTGGAGGAA; TTTTCCCGCTATCTGCAGGAGCGGGAACAGCGTCTGCTGCTCATGTTTCACAGTCTTGACCGGAACCAGG; ATGGTCACATTGATGTCTCTGAGATCCAACAGAGTTTCCGAGCTCTGGGCATTTCCATCTCGCTGGAGCA; GGCTGAGAAAATTTTGCACAGCATGGACCGAGACGGCACAATGACCATTGACTGGCAAGAATGGCGCGAC; CACTTCCTGTTGCATTCGCTGGAAAATGTGGAGGACGTGCTGTATTTCTGGAAGCATTCCACGGTCCTGG; ACATTGGCGAGTGCCTGACAGTGCCGGACGAGTTCTCAAAGCAAGAGAAGCTGACGGGCATGTGGTGGAA; ACAGCTGGTGGCCGGCGCAGTGGCAGGTGCCGTGTCACGGACAGGCACGGCCCCTCTGGACCGCCTCAAG; GTCTTCATGCAGGTCCATGCCTCAAAGACCAACCGGCTGAACATCCTTGGGGGGCTTCGAAGCATGGTCC; TTGAGGGAGGCATCCGCTCCCTGTGGCGCGGCAATGGTATTAATGTACTCAAGATTGCCCCCGAGTCAGC; TATCAAGTTCATGGCCTATGAACAGATCAAGAGGGCCATCCTGGGGCAGCAGGAGACACTGCATGTGCAG; GAGCGCTTCGTGGCTGGCTCCCTGGCTGGTGCCACAGCCCAAACCATCATTTACCCTATGGAGGTGCTGA; AGACGCGGCTGACCTTGCGCCGGACGGGCCAGTATAAGGGGCTGCTGGACTGCGCCAGGCGTATCCTGGA; GAGGGAGGGGCCCCGTGCCTTCTACCGCGGCTACCTCCCCAACGTGCTGGGCATCATCCCCTATGCGGGC; ATCGACCTGGCCGTCTACGAGACTCTGAAGAACTGGTGGCTTCAGCAGTACAGCCACGACTCGGCAGACC; CAGGCATCCTCGTGCTCCTGGCCTGCGGTACCATATCCAGCACCTGCGGCCAGATAGCCAGTTACCCGCT; GGCCCTGGTCCGGACCCGCATGCAGGCACAAGCCTCCATCGAGGGTGGCCCCCAGCTGTCCATGCTGGGT; CTGCTACGTCACATCCTGTCCCAGGAGGGCATGCGGGGCCTCTACCGGGGGATCGCCCCCAACTTCATGA; AGGTTATTCCAGCTGTGAGCATCTCCTATGTGGTCTACGAGAACATGAAGCAGGCCTTGGGGGTCACGTC; CAGG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC216470 representing NM_024103; Red=Cloning site Green=Tags(s); ; MRGSPGDAERRQRWGRLFEELDSNKDGRVDVHELRQGLARLGGGNPDPGAQQGISSEGDADPDGGLDLEE; FSRYLQEREQRLLLMFHSLDRNQDGHIDVSEIQQSFRALGISISLEQAEKILHSMDRDGTMTIDWQEWRD; HFLLHSLENVEDVLYFWKHSTVLDIGECLTVPDEFSKQEKLTGMWWKQLVAGAVAGAVSRTGTAPLDRLK; VFMQVHASKTNRLNILGGLRSMVLEGGIRSLWRGNGINVLKIAPESAIKFMAYEQIKRAILGQQETLHVQ; ERFVAGSLAGATAQTIIYPMEVLKTRLTLRRTGQYKGLLDCARRILEREGPRAFYRGYLPNVLGIIPYAG; IDLAVYETLKNWWLQQYSHDSADPGILVLLACGTISSTCGQIASYPLALVRTRMQAQASIEGGPQLSMLG; LLRHILSQEGMRGLYRGIAPNFMKVIPAVSISYVVYENMKQALGVTSR; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here

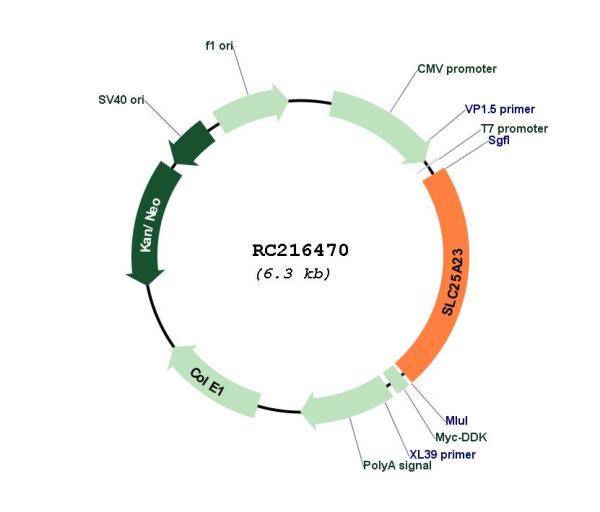

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_024103
• ORF Size: 1404 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_024103.3
• RefSeq Size: 3475 bp
• RefSeq ORF: 1407 bp
• Locus ID: 79085
• UniProt ID: Q9BV35
• Cytogenetics: 19p13.3
• Domains: EFh, mito_carr
• Protein Families: Druggable Genome
• MW: 52.2 kDa
• Summary: Calcium-dependent mitochondrial solute carrier. Mitochondrial solute carriers shuttle metabolites, nucleotides, and cofactors through the mitochondrial inner membrane (PubMed:15123600). May act as a ATP-Mg/Pi exchanger that mediates the transport of Mg-ATP in exchange for phosphate, catalyzing the net uptake or efflux of adenine nucleotides into or from the mitochondria (PubMed:15123600). Acts as a regulator of mitochondrial calcium uptake via interaction with MCU and MICU1 (PubMed:24430870).[UniProtKB/Swiss-Prot Function]
