Junctional Adhesion Molecule C (JAM3) (NM_032801) Human Tagged ORF Clone

SKU RC216073

JAM3 (Myc-DDK-tagged)-Human junctional adhesion molecule 3 (JAM3), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Junctional Adhesion Molecule C
• Synonyms: JAM-2; JAM-3; JAM-C; JAMC
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

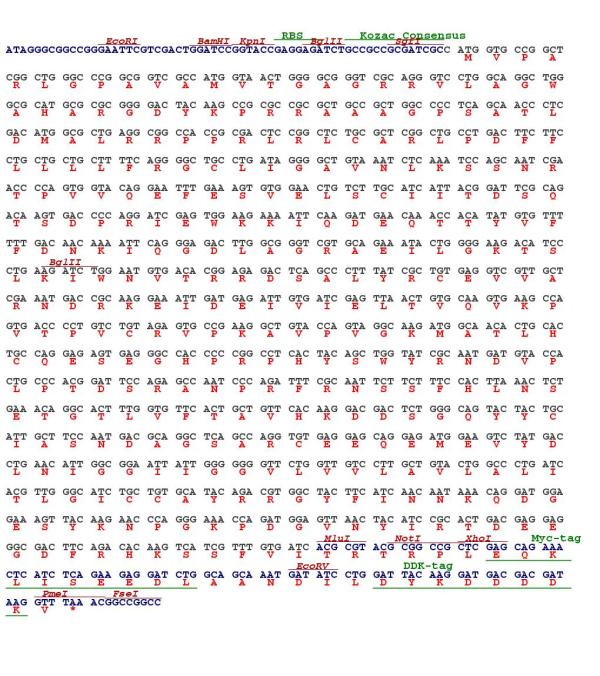

  ORF Nucleotide Sequence

  >RC216073 representing NM_032801; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGTGCCGGCTCGGCTGGGCCCGGCGGTCGCCATGGTAACTGGGGCGGGTCGCAGGGTCCTGGCAGGCT; GGGCGCATGCGCGCGGGGACTACAAGCCGCGCCGCGCTGCCGCTGGCCCCTCAGCAACCCTCGACATGGC; GCTGAGGCGGCCACCGCGACTCCGGCTCTGCGCTCGGCTGCCTGACTTCTTCCTGCTGCTGCTTTTCAGG; GGCTGCCTGATAGGGGCTGTAAATCTCAAATCCAGCAATCGAACCCCAGTGGTACAGGAATTTGAAAGTG; TGGAACTGTCTTGCATCATTACGGATTCGCAGACAAGTGACCCCAGGATCGAGTGGAAGAAAATTCAAGA; TGAACAAACCACATATGTGTTTTTTGACAACAAAATTCAGGGAGACTTGGCGGGTCGTGCAGAAATACTG; GGGAAGACATCCCTGAAGATCTGGAATGTGACACGGAGAGACTCAGCCCTTTATCGCTGTGAGGTCGTTG; CTCGAAATGACCGCAAGGAAATTGATGAGATTGTGATCGAGTTAACTGTGCAAGTGAAGCCAGTGACCCC; TGTCTGTAGAGTGCCGAAGGCTGTACCAGTAGGCAAGATGGCAACACTGCACTGCCAGGAGAGTGAGGGC; CACCCCCGGCCTCACTACAGCTGGTATCGCAATGATGTACCACTGCCCACGGATTCCAGAGCCAATCCCA; GATTTCGCAATTCTTCTTTCCACTTAAACTCTGAAACAGGCACTTTGGTGTTCACTGCTGTTCACAAGGA; CGACTCTGGGCAGTACTACTGCATTGCTTCCAATGACGCAGGCTCAGCCAGGTGTGAGGAGCAGGAGATG; GAAGTCTATGACCTGAACATTGGCGGAATTATTGGGGGGGTTCTGGTTGTCCTTGCTGTACTGGCCCTGA; TCACGTTGGGCATCTGCTGTGCATACAGACGTGGCTACTTCATCAACAATAAACAGGATGGAGAAAGTTA; CAAGAACCCAGGGAAACCAGATGGAGTTAACTACATCCGCACTGACGAGGAGGGCGACTTCAGACACAAG; TCATCGTTTGTGATC; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC216073 representing NM_032801; Red=Cloning site Green=Tags(s); ; MVPARLGPAVAMVTGAGRRVLAGWAHARGDYKPRRAAAGPSATLDMALRRPPRLRLCARLPDFFLLLLFR; GCLIGAVNLKSSNRTPVVQEFESVELSCIITDSQTSDPRIEWKKIQDEQTTYVFFDNKIQGDLAGRAEIL; GKTSLKIWNVTRRDSALYRCEVVARNDRKEIDEIVIELTVQVKPVTPVCRVPKAVPVGKMATLHCQESEG; HPRPHYSWYRNDVPLPTDSRANPRFRNSSFHLNSETGTLVFTAVHKDDSGQYYCIASNDAGSARCEEQEM; EVYDLNIGGIIGGVLVVLAVLALITLGICCAYRRGYFINNKQDGESYKNPGKPDGVNYIRTDEEGDFRHK; SSFVI; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_032801
• ORF Size: 1065 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_032801.3, NP_116190.2
• RefSeq Size: 3675 bp
• RefSeq ORF: 933 bp
• Locus ID: 83700
• UniProt ID: Q9BX67
• Cytogenetics: 11q25
• Domains: ig, IG, IGc2, IGv
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: Cell adhesion molecules (CAMs), Epithelial cell signaling in Helicobacter pylori infection, Leukocyte transendothelial migration, Tight junction
• MW: 36.5 kDa
• Summary: Tight junctions represent one mode of cell-to-cell adhesion in epithelial or endothelial cell sheets, forming continuous seals around cells and serving as a physical barrier to prevent solutes and water from passing freely through the paracellular space. The protein encoded by this immunoglobulin superfamily gene member is localized in the tight junctions between high endothelial cells. Unlike other proteins in this family, the this protein is unable to adhere to leukocyte cell lines and only forms weak homotypic interactions. The encoded protein is a member of the junctional adhesion molecule protein family and acts as a receptor for another member of this family. A mutation in an intron of this gene is associated with hemorrhagic destruction of the brain, subependymal calcification, and congenital cataracts. Alternative splicing results in multiple transcript variants.[provided by RefSeq, Apr 2011]
