MDA5 (IFIH1) (NM_022168) Human Tagged ORF Clone

SKU RC215661

IFIH1 (Myc-DDK-tagged)-Human interferon induced with helicase C domain 1 (IFIH1)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: MDA5
• Synonyms: AGS7; Hlcd; IDDM19; MDA-5; MDA5; RLR-2; SGMRT1
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

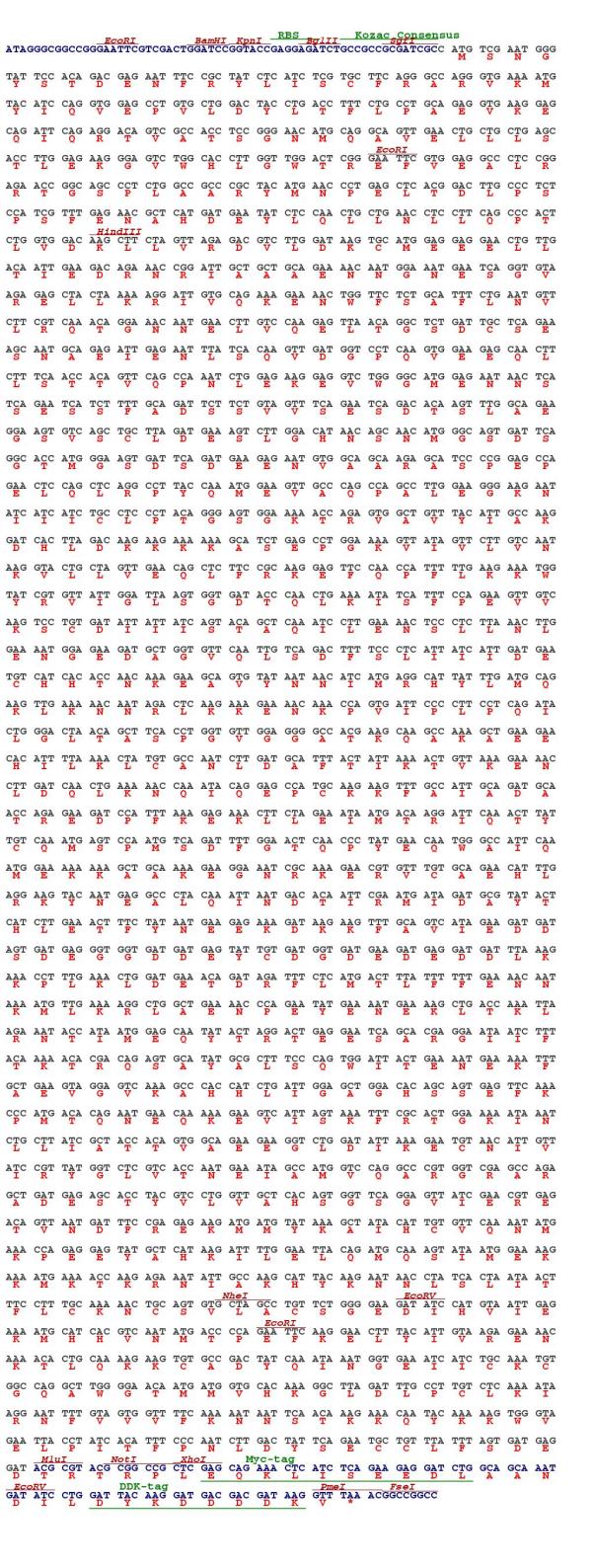

  ORF Nucleotide Sequence

  >RC215661 representing NM_022168; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTCGAATGGGTATTCCACAGACGAGAATTTCCGCTATCTCATCTCGTGCTTCAGGGCCAGGGTGAAAA; TGTACATCCAGGTGGAGCCTGTGCTGGACTACCTGACCTTTCTGCCTGCAGAGGTGAAGGAGCAGATTCA; GAGGACAGTCGCCACCTCCGGGAACATGCAGGCAGTTGAACTGCTGCTGAGCACCTTGGAGAAGGGAGTC; TGGCACCTTGGTTGGACTCGGGAATTCGTGGAGGCCCTCCGGAGAACCGGCAGCCCTCTGGCCGCCCGCT; ACATGAACCCTGAGCTCACGGACTTGCCCTCTCCATCGTTTGAGAACGCTCATGATGAATATCTCCAACT; GCTGAACCTCCTTCAGCCCACTCTGGTGGACAAGCTTCTAGTTAGAGACGTCTTGGATAAGTGCATGGAG; GAGGAACTGTTGACAATTGAAGACAGAAACCGGATTGCTGCTGCAGAAAACAATGGAAATGAATCAGGTG; TAAGAGAGCTACTAAAAAGGATTGTGCAGAAAGAAAACTGGTTCTCTGCATTTCTGAATGTTCTTCGTCA; AACAGGAAACAATGAACTTGTCCAAGAGTTAACAGGCTCTGATTGCTCAGAAAGCAATGCAGAGATTGAG; AATTTATCACAAGTTGATGGTCCTCAAGTGGAAGAGCAACTTCTTTCAACCACAGTTCAGCCAAATCTGG; AGAAGGAGGTCTGGGGCATGGAGAATAACTCATCAGAATCATCTTTTGCAGATTCTTCTGTAGTTTCAGA; ATCAGACACAAGTTTGGCAGAAGGAAGTGTCAGCTGCTTAGATGAAAGTCTTGGACATAACAGCAACATG; GGCAGTGATTCAGGCACCATGGGAAGTGATTCAGATGAAGAGAATGTGGCAGCAAGAGCATCCCCGGAGC; CAGAACTCCAGCTCAGGCCTTACCAAATGGAAGTTGCCCAGCCAGCCTTGGAAGGGAAGAATATCATCAT; CTGCCTCCCTACAGGGAGTGGAAAAACCAGAGTGGCTGTTTACATTGCCAAGGATCACTTAGACAAGAAG; AAAAAAGCATCTGAGCCTGGAAAAGTTATAGTTCTTGTCAATAAGGTACTGCTAGTTGAACAGCTCTTCC; GCAAGGAGTTCCAACCATTTTTGAAGAAATGGTATCGTGTTATTGGATTAAGTGGTGATACCCAACTGAA; AATATCATTTCCAGAAGTTGTCAAGTCCTGTGATATTATTATCAGTACAGCTCAAATCCTTGAAAACTCC; CTCTTAAACTTGGAAAATGGAGAAGATGCTGGTGTTCAATTGTCAGACTTTTCCCTCATTATCATTGATG; AATGTCATCACACCAACAAAGAAGCAGTGTATAATAACATCATGAGGCATTATTTGATGCAGAAGTTGAA; AAACAATAGACTCAAGAAAGAAAACAAACCAGTGATTCCCCTTCCTCAGATACTGGGACTAACAGCTTCA; CCTGGTGTTGGAGGGGCCACGAAGCAAGCCAAAGCTGAAGAACACATTTTAAAACTATGTGCCAATCTTG; ATGCATTTACTATTAAAACTGTTAAAGAAAACCTTGATCAACTGAAAAACCAAATACAGGAGCCATGCAA; GAAGTTTGCCATTGCAGATGCAACCAGAGAAGATCCATTTAAAGAGAAACTTCTAGAAATAATGACAAGG; ATTCAAACTTATTGTCAAATGAGTCCAATGTCAGATTTTGGAACTCAACCCTATGAACAATGGGCCATTC; AAATGGAAAAAAAAGCTGCAAAAGAAGGAAATCGCAAAGAACGTGTTTGTGCAGAACATTTGAGGAAGTA; CAATGAGGCCCTACAAATTAATGACACAATTCGAATGATAGATGCGTATACTCATCTTGAAACTTTCTAT; AATGAAGAGAAAGATAAGAAGTTTGCAGTCATAGAAGATGATAGTGATGAGGGTGGTGATGATGAGTATT; GTGATGGTGATGAAGATGAGGATGATTTAAAGAAACCTTTGAAACTGGATGAAACAGATAGATTTCTCAT; GACTTTATTTTTTGAAAACAATAAAATGTTGAAAAGGCTGGCTGAAAACCCAGAATATGAAAATGAAAAG; CTGACCAAATTAAGAAATACCATAATGGAGCAATATACTAGGACTGAGGAATCAGCACGAGGAATAATCT; TTACAAAAACACGACAGAGTGCATATGCGCTTTCCCAGTGGATTACTGAAAATGAAAAATTTGCTGAAGT; AGGAGTCAAAGCCCACCATCTGATTGGAGCTGGACACAGCAGTGAGTTCAAACCCATGACACAGAATGAA; CAAAAAGAAGTCATTAGTAAATTTCGCACTGGAAAAATAAATCTGCTTATCGCTACCACAGTGGCAGAAG; AAGGTCTGGATATTAAAGAATGTAACATTGTTATCCGTTATGGTCTCGTCACCAATGAAATAGCCATGGT; CCAGGCCCGTGGTCGAGCCAGAGCTGATGAGAGCACCTACGTCCTGGTTGCTCACAGTGGTTCAGGAGTT; ATCGAACGTGAGACAGTTAATGATTTCCGAGAGAAGATGATGTATAAAGCTATACATTGTGTTCAAAATA; TGAAACCAGAGGAGTATGCTCATAAGATTTTGGAATTACAGATGCAAAGTATAATGGAAAAGAAAATGAA; AACCAAGAGAAATATTGCCAAGCATTACAAGAATAACCTATCACTAATAACTTTCCTTTGCAAAAACTGC; AGTGTGCTAGCCTGTTCTGGGGAAGATATCCATGTAATTGAGAAAATGCATCACGTCAATATGACCCCAG; AATTCAAGGAACTTTACATTGTAAGAGAAAACAAAACACTGCAAAAGAAGTGTGCCGACTATCAAATAAA; TGGTGAAATCATCTGCAAATGTGGCCAGGCTTGGGGAACAATGATGGTGCACAAAGGCTTAGATTTGCCT; TGTCTCAAAATAAGGAATTTTGTAGTGGTTTTCAAAAATAATTCAACAAAGAAACAATACAAAAAGTGGG; TAGAATTACCTATCACATTTCCCAATCTTGACTATTCAGAATGCTGTTTATTTAGTGATGAGGAT; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC215661 representing NM_022168; Red=Cloning site Green=Tags(s); ; MSNGYSTDENFRYLISCFRARVKMYIQVEPVLDYLTFLPAEVKEQIQRTVATSGNMQAVELLLSTLEKGV; WHLGWTREFVEALRRTGSPLAARYMNPELTDLPSPSFENAHDEYLQLLNLLQPTLVDKLLVRDVLDKCME; EELLTIEDRNRIAAAENNGNESGVRELLKRIVQKENWFSAFLNVLRQTGNNELVQELTGSDCSESNAEIE; NLSQVDGPQVEEQLLSTTVQPNLEKEVWGMENNSSESSFADSSVVSESDTSLAEGSVSCLDESLGHNSNM; GSDSGTMGSDSDEENVAARASPEPELQLRPYQMEVAQPALEGKNIIICLPTGSGKTRVAVYIAKDHLDKK; KKASEPGKVIVLVNKVLLVEQLFRKEFQPFLKKWYRVIGLSGDTQLKISFPEVVKSCDIIISTAQILENS; LLNLENGEDAGVQLSDFSLIIIDECHHTNKEAVYNNIMRHYLMQKLKNNRLKKENKPVIPLPQILGLTAS; PGVGGATKQAKAEEHILKLCANLDAFTIKTVKENLDQLKNQIQEPCKKFAIADATREDPFKEKLLEIMTR; IQTYCQMSPMSDFGTQPYEQWAIQMEKKAAKEGNRKERVCAEHLRKYNEALQINDTIRMIDAYTHLETFY; NEEKDKKFAVIEDDSDEGGDDEYCDGDEDEDDLKKPLKLDETDRFLMTLFFENNKMLKRLAENPEYENEK; LTKLRNTIMEQYTRTEESARGIIFTKTRQSAYALSQWITENEKFAEVGVKAHHLIGAGHSSEFKPMTQNE; QKEVISKFRTGKINLLIATTVAEEGLDIKECNIVIRYGLVTNEIAMVQARGRARADESTYVLVAHSGSGV; IERETVNDFREKMMYKAIHCVQNMKPEEYAHKILELQMQSIMEKKMKTKRNIAKHYKNNLSLITFLCKNC; SVLACSGEDIHVIEKMHHVNMTPEFKELYIVRENKTLQKKCADYQINGEIICKCGQAWGTMMVHKGLDLP; CLKIRNFVVVFKNNSTKKQYKKWVELPITFPNLDYSECCLFSDED; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_022168
• ORF Size: 3075 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_022168.4
• RefSeq Size: 3434 bp
• RefSeq ORF: 3078 bp
• Locus ID: 64135
• UniProt ID: Q9BYX4
• Cytogenetics: 2q24.2
• Domains: DEAD, helicase_C
• Protein Pathways: RIG-I-like receptor signaling pathway
• MW: 116.5 kDa
• Summary: IFIH1 encodes MDA5 which is an intracellular sensor of viral RNA that triggers the innate immune response. Sensing RNA length and secondary structure, MDA5 binds dsRNA oligonucleotides with a modified DExD/H-box helicase core and a C-terminal domain, thus leading to a proinflammatory response that includes interferons. It has been shown that Coronaviruses (CoVs) as well as various other virus families, are capable of evading the MDA5-dependent interferon response, thus impeding the activation of the innate immune response to infection. MDA5 has also been shown to play an important role in enhancing natural killer cell function in malaria infection. In addition to its protective role in antiviral responses, MDA5 has been implicated in autoimmune and autoinflammatory diseases such as type 1 diabetes, systemic lupus erythematosus, and Aicardi-Goutieres syndrome[provided by RefSeq, Jul 2020]
