LDB3 (NM_001080114) Human Tagged ORF Clone

SKU RC213766

LDB3 (Myc-DDK-tagged)-Human LIM domain binding 3 (LDB3), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: LDB3
• Synonyms: CMD1C; CMH24; CMPD3; CYPHER; LDB3Z1; LDB3Z4; LVNC3; MFM4; ORACLE; PDLIM6; ZASP
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

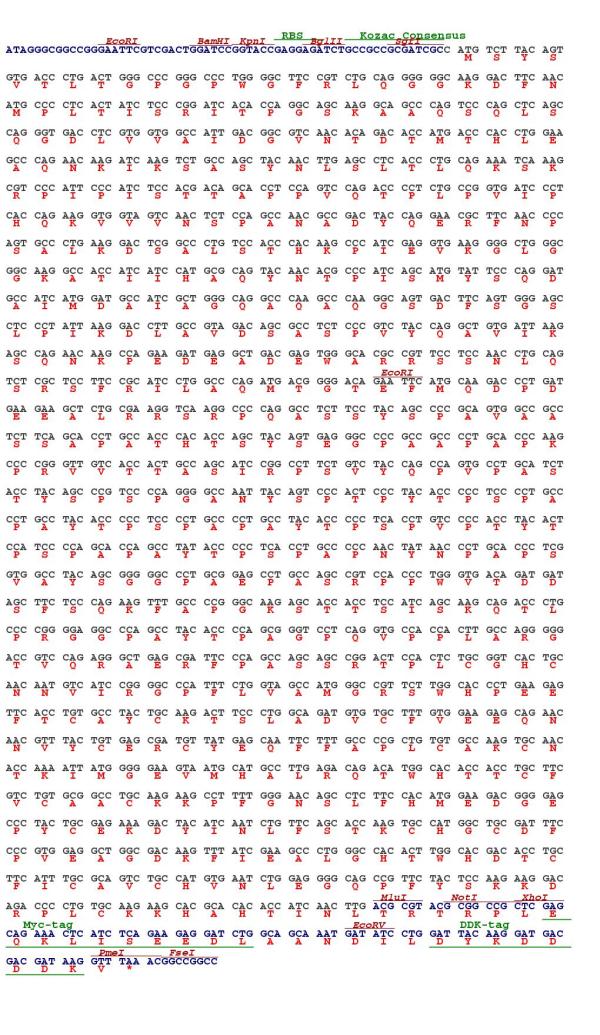

  >RC213766 representing NM_001080114; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTCTTACAGTGTGACCCTGACTGGGCCCGGGCCCTGGGGCTTCCGTCTGCAGGGGGGCAAGGACTTCA; ACATGCCCCTCACTATCTCCCGGATCACACCAGGCAGCAAGGCAGCCCAGTCCCAGCTCAGCCAGGGTGA; CCTCGTGGTGGCCATTGACGGCGTCAACACAGACACCATGACCCACCTGGAAGCCCAGAACAAGATCAAG; TCTGCCAGCTACAACTTGAGCCTCACCCTGCAGAAATCAAAGCGTCCCATTCCCATCTCCACGACAGCAC; CTCCAGTCCAGACCCCTCTGCCGGTGATCCCTCACCAGAAGGTGGTAGTCAACTCTCCAGCCAACGCCGA; CTACCAGGAACGCTTCAACCCCAGTGCCCTGAAGGACTCGGCCCTGTCCACCCACAAGCCCATCGAGGTG; AAGGGGCTGGGCGGCAAGGCCACCATCATCCATGCGCAGTACAACACGCCCATCAGCATGTATTCCCAGG; ATGCCATCATGGATGCCATCGCTGGGCAGGCCCAAGCCCAAGGCAGTGACTTCAGTGGGAGCCTCCCTAT; TAAGGACCTTGCCGTAGACAGCGCCTCTCCCGTCTACCAGGCTGTGATTAAGAGCCAGAACAAGCCAGAA; GATGAGGCTGACGAGTGGGCACGCCGTTCCTCCAACCTGCAGTCTCGCTCCTTCCGCATCCTGGCCCAGA; TGACGGGGACAGAATTCATGCAAGACCCTGATGAAGAAGCTCTGCGAAGGTCAAGGCCCCAGGCCTCTTC; CTACAGCCCCGCAGTGGCCGCCTCTTCAGCACCTGCCACCCACACCAGCTACAGTGAGGGCCCCGCCGCC; CCTGCACCCAAGCCCCGGGTTGTCACCACTGCCAGCATCCGGCCTTCTGTCTACCAGCCAGTGCCTGCAT; CTACCTACAGCCCGTCCCCAGGGGCCAATTACAGTCCCACTCCCTACACCCCCTCCCCTGCCCCTGCCTA; CACCCCCTCCCCTGCCCCTGCCTACACCCCCTCACCTGTCCCCACCTACACTCCATCCCCAGCACCAGCC; TATACCCCCTCACCTGCCCCCAACTATAACCCTGCACCCTCGGTGGCCTACAGCGGGGGCCCTGCGGAGC; CTGCCAGCCGTCCACCCTGGGTGACAGATGATAGCTTCTCCCAGAAGTTTGCCCCGGGCAAGAGCACCAC; CTCCATCAGCAAGCAGACCCTGCCCCGGGGAGGCCCAGCCTACACCCCAGCGGGTCCTCAGGTGCCACCA; CTTGCCAGGGGGACCGTCCAGAGGGCTGAGCGATTCCCAGCCAGCAGCCGGACTCCACTCTGCGGTCACT; GCAACAATGTCATCCGGGGCCCATTTCTGGTAGCCATGGGCCGTTCTTGGCACCCTGAAGAGTTCACCTG; TGCCTACTGCAAGACTTCCCTGGCAGATGTGTGCTTTGTGGAAGAGCAGAACAACGTTTACTGTGAGCGA; TGTTATGAGCAATTCTTTGCCCCGCTGTGTGCCAAGTGCAACACCAAAATTATGGGGGAAGTAATGCATG; CCTTGAGACAGACATGGCACACCACCTGCTTCGTCTGTGCGGCCTGCAAGAAGCCTTTTGGGAACAGCCT; CTTCCACATGGAAGACGGGGAGCCCTACTGCGAGAAAGACTACATCAATCTGTTCAGCACCAAGTGCCAT; GGCTGCGATTTCCCCGTGGAGGCTGGCGACAAGTTTATCGAAGCCCTGGGCCACACTTGGCACGACACCT; GCTTCATTTGCGCAGTCTGCCATGTGAATCTGGAGGGGCAGCCGTTCTACTCCAAGAAGGACAGACCCCT; GTGCAAGAAGCACGCACACACCATCAACTTG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC213766 representing NM_001080114; Red=Cloning site Green=Tags(s); ; MSYSVTLTGPGPWGFRLQGGKDFNMPLTISRITPGSKAAQSQLSQGDLVVAIDGVNTDTMTHLEAQNKIK; SASYNLSLTLQKSKRPIPISTTAPPVQTPLPVIPHQKVVVNSPANADYQERFNPSALKDSALSTHKPIEV; KGLGGKATIIHAQYNTPISMYSQDAIMDAIAGQAQAQGSDFSGSLPIKDLAVDSASPVYQAVIKSQNKPE; DEADEWARRSSNLQSRSFRILAQMTGTEFMQDPDEEALRRSRPQASSYSPAVAASSAPATHTSYSEGPAA; PAPKPRVVTTASIRPSVYQPVPASTYSPSPGANYSPTPYTPSPAPAYTPSPAPAYTPSPVPTYTPSPAPA; YTPSPAPNYNPAPSVAYSGGPAEPASRPPWVTDDSFSQKFAPGKSTTSISKQTLPRGGPAYTPAGPQVPP; LARGTVQRAERFPASSRTPLCGHCNNVIRGPFLVAMGRSWHPEEFTCAYCKTSLADVCFVEEQNNVYCER; CYEQFFAPLCAKCNTKIMGEVMHALRQTWHTTCFVCAACKKPFGNSLFHMEDGEPYCEKDYINLFSTKCH; GCDFPVEAGDKFIEALGHTWHDTCFICAVCHVNLEGQPFYSKKDRPLCKKHAHTINL; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001080114
• ORF Size: 1851 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001080114.2
• RefSeq Size: 4978 bp
• RefSeq ORF: 1854 bp
• Locus ID: 11155
• UniProt ID: O75112
• Cytogenetics: 10q23.2
• MW: 66.5 kDa
• Summary: This gene encodes a PDZ domain-containing protein. PDZ motifs are modular protein-protein interaction domains consisting of 80-120 amino acid residues. PDZ domain-containing proteins interact with each other in cytoskeletal assembly or with other proteins involved in targeting and clustering of membrane proteins. The protein encoded by this gene interacts with alpha-actinin-2 through its N-terminal PDZ domain and with protein kinase C via its C-terminal LIM domains. The LIM domain is a cysteine-rich motif defined by 50-60 amino acids containing two zinc-binding modules. This protein also interacts with all three members of the myozenin family. Mutations in this gene have been associated with myofibrillar myopathy and dilated cardiomyopathy. Alternatively spliced transcript variants encoding different isoforms have been identified; all isoforms have N-terminal PDZ domains while only longer isoforms (1, 2 and 5) have C-terminal LIM domains. [provided by RefSeq, Jan 2010]
