MID1 (NM_001098624) Human Tagged ORF Clone

SKU RC213454

MID1 (Myc-DDK-tagged)-Human midline 1 (Opitz/BBB syndrome) (MID1), transcript variant 4

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: MID1
• Synonyms: BBBG1; FXY; GBBB1; MIDIN; OGS1; OS; OSX; RNF59; TRIM18; XPRF; ZNFXY
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

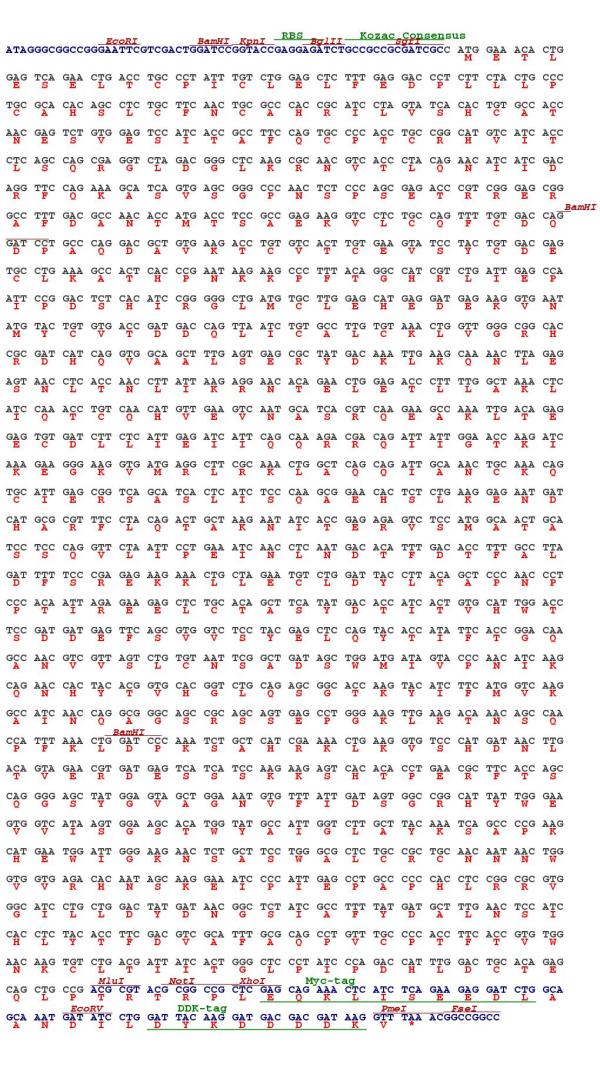

  ORF Nucleotide Sequence

  >RC213454 representing NM_001098624; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGAAACACTGGAGTCAGAACTGACCTGCCCTATTTGTCTGGAGCTCTTTGAGGACCCTCTTCTACTGC; CCTGCGCACACAGCCTCTGCTTCAACTGCGCCCACCGCATCCTAGTATCACACTGTGCCACCAACGAGTC; TGTGGAGTCCATCACCGCCTTCCAGTGCCCCACCTGCCGGCATGTCATCACCCTCAGCCAGCGAGGTCTA; GACGGGCTCAAGCGCAACGTCACCCTACAGAACATCATCGACAGGTTCCAGAAAGCATCAGTGAGCGGGC; CCAACTCTCCCAGCGAGACCCGTCGGGAGCGGGCCTTTGACGCCAACACCATGACCTCCGCCGAGAAGGT; CCTCTGCCAGTTTTGTGACCAGGATCCTGCCCAGGACGCTGTGAAGACCTGTGTCACTTGTGAAGTATCC; TACTGTGACGAGTGCCTGAAAGCCACTCACCCGAATAAGAAGCCCTTTACAGGCCATCGTCTGATTGAGC; CAATTCCGGACTCTCACATCCGGGGGCTGATGTGCTTGGAGCATGAGGATGAGAAGGTGAATATGTACTG; TGTGACCGATGACCAGTTAATCTGTGCCTTGTGTAAACTGGTTGGGCGGCACCGCGATCATCAGGTGGCA; GCTTTGAGTGAGCGCTATGACAAATTGAAGCAAAACTTAGAGAGTAACCTCACCAACCTTATTAAGAGGA; ACACAGAACTGGAGACCCTTTTGGCTAAACTCATCCAAACCTGTCAACATGTTGAAGTCAATGCATCACG; TCAAGAAGCCAAATTGACAGAGGAGTGTGATCTTCTCATTGAGATCATTCAGCAAAGACGACAGATTATT; GGAACCAAGATCAAAGAAGGGAAGGTGATGAGGCTTCGCAAACTGGCTCAGCAGATTGCAAACTGCAAAC; AGTGCATTGAGCGGTCAGCATCACTCATCTCCCAAGCGGAACACTCTCTGAAGGAGAATGATCATGCGCG; TTTCCTACAGACTGCTAAGAATATCACCGAGAGAGTCTCCATGGCAACTGCATCCTCCCAGGTTCTAATT; CCTGAAATCAACCTCAATGACACATTTGACACCTTTGCCTTAGATTTTTCCCGAGAGAAGAAACTGCTAG; AATGTCTGGATTACCTTACAGCTCCCAACCCTCCCACAATTAGAGAAGAGCTCTGCACAGCTTCATATGA; CACCATCACTGTGCATTGGACCTCCGATGATGAGTTCAGCGTGGTCTCCTACGAGCTCCAGTACACCATA; TTCACCGGACAAGCCAACGTCGTTAGTCTGTGTAATTCGGCTGATAGCTGGATGATAGTACCCAACATCA; AGCAGAACCACTACACGGTGCACGGTCTGCAGAGCGGCACCAAGTACATCTTCATGGTCAAGGCCATCAA; CCAGGCGGGCAGCCGCAGCAGTGAGCCTGGGAAGTTGAAGACAAACAGCCAACCATTTAAACTGGATCCC; AAATCTGCTCATCGAAAACTGAAGGTGTCCCATGATAACTTGACAGTAGAACGTGATGAGTCATCATCCA; AGAAGAGTCACACACCTGAACGCTTCACCAGCCAGGGGAGCTATGGAGTAGCTGGAAATGTGTTTATTGA; TAGTGGCCGGCATTATTGGGAAGTGGTCATAAGTGGAAGCACATGGTATGCCATTGGTCTTGCTTACAAA; TCAGCCCCGAAGCATGAATGGATTGGGAAGAACTCTGCTTCCTGGGCGCTCTGCCGCTGCAACAATAACT; GGGTGGTGAGACACAATAGCAAGGAAATCCCCATTGAGCCTGCCCCCCACCTCCGGCGCGTGGGCATCCT; GCTGGACTATGATAACGGCTCTATCGCCTTTTATGATGCTTTGAACTCCATCCACCTCTACACCTTCGAC; GTCGCATTTGCGCAGCCTGTTTGCCCCACCTTCACCGTGTGGAACAAGTGTCTGACGATTATCACTGGGC; TCCCTATCCCAGACCATTTGGACTGCACAGAGCAGCTGCCG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC213454 representing NM_001098624; Red=Cloning site Green=Tags(s); ; METLESELTCPICLELFEDPLLLPCAHSLCFNCAHRILVSHCATNESVESITAFQCPTCRHVITLSQRGL; DGLKRNVTLQNIIDRFQKASVSGPNSPSETRRERAFDANTMTSAEKVLCQFCDQDPAQDAVKTCVTCEVS; YCDECLKATHPNKKPFTGHRLIEPIPDSHIRGLMCLEHEDEKVNMYCVTDDQLICALCKLVGRHRDHQVA; ALSERYDKLKQNLESNLTNLIKRNTELETLLAKLIQTCQHVEVNASRQEAKLTEECDLLIEIIQQRRQII; GTKIKEGKVMRLRKLAQQIANCKQCIERSASLISQAEHSLKENDHARFLQTAKNITERVSMATASSQVLI; PEINLNDTFDTFALDFSREKKLLECLDYLTAPNPPTIREELCTASYDTITVHWTSDDEFSVVSYELQYTI; FTGQANVVSLCNSADSWMIVPNIKQNHYTVHGLQSGTKYIFMVKAINQAGSRSSEPGKLKTNSQPFKLDP; KSAHRKLKVSHDNLTVERDESSSKKSHTPERFTSQGSYGVAGNVFIDSGRHYWEVVISGSTWYAIGLAYK; SAPKHEWIGKNSASWALCRCNNNWVVRHNSKEIPIEPAPHLRRVGILLDYDNGSIAFYDALNSIHLYTFD; VAFAQPVCPTFTVWNKCLTIITGLPIPDHLDCTEQLP; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001098624
• ORF Size: 2001 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001098624.2, NP_001092094.1
• RefSeq Size: 6147 bp
• RefSeq ORF: 2004 bp
• Locus ID: 4281
• UniProt ID: O15344
• Cytogenetics: Xp22.2
• Protein Families: Druggable Genome
• Protein Pathways: Ubiquitin mediated proteolysis
• MW: 75.1 kDa
• Summary: The protein encoded by this gene is a member of the tripartite motif (TRIM) family, also known as the 'RING-B box-coiled coil' (RBCC) subgroup of RING finger proteins. The TRIM motif includes three zinc-binding domains, a RING, a B-box type 1 and a B-box type 2, and a coiled-coil region. This protein forms homodimers which associate with microtubules in the cytoplasm. The protein is likely involved in the formation of multiprotein structures acting as anchor points to microtubules. Mutations in this gene have been associated with the X-linked form of Opitz syndrome, which is characterized by midline abnormalities such as cleft lip, laryngeal cleft, heart defects, hypospadias, and agenesis of the corpus callosum. This gene was also the first example of a gene subject to X inactivation in human while escaping it in mouse. Alternative promoter use, alternative splicing and alternative polyadenylation result in multiple transcript variants that have different tissue specificities. [provided by RefSeq, Dec 2016]
