Securin (PTTG1) (NM_004219) Human Tagged ORF Clone

SKU RC211038

PTTG1 (Myc-DDK-tagged)-Human pituitary tumor-transforming 1 (PTTG1)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Securin
• Synonyms: EAP1; HPTTG; PTTG; TUTR1
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

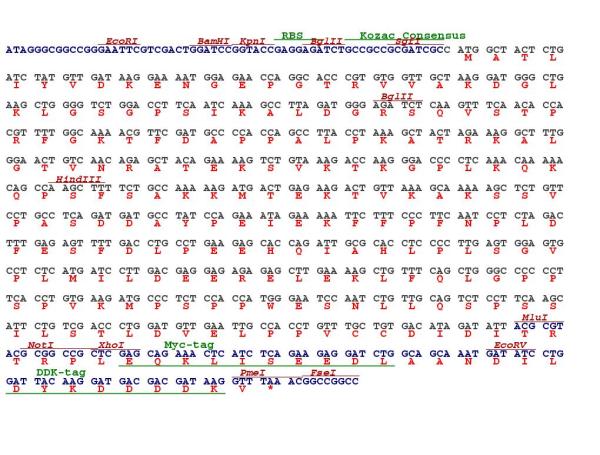

  ORF Nucleotide Sequence

  >RC211038 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCTACTCTGATCTATGTTGATAAGGAAAATGGAGAACCAGGCACCCGTGTGGTTGCTAAGGATGGGC; TGAAGCTGGGGTCTGGACCTTCAATCAAAGCCTTAGATGGGAGATCTCAAGTTTCAACACCACGTTTTGG; CAAAACGTTCGATGCCCCACCAGCCTTACCTAAAGCTACTAGAAAGGCTTTGGGAACTGTCAACAGAGCT; ACAGAAAAGTCTGTAAAGACCAAGGGACCCCTCAAACAAAAACAGCCAAGCTTTTCTGCCAAAAAGATGA; CTGAGAAGACTGTTAAAGCAAAAAGCTCTGTTCCTGCCTCAGATGATGCCTATCCAGAAATAGAAAAATT; CTTTCCCTTCAATCCTCTAGACTTTGAGAGTTTTGACCTGCCTGAAGAGCACCAGATTGCGCACCTCCCC; TTGAGTGGAGTGCCTCTCATGATCCTTGACGAGGAGAGAGAGCTTGAAAAGCTGTTTCAGCTGGGCCCCC; CTTCACCTGTGAAGATGCCCTCTCCACCATGGGAATCCAATCTGTTGCAGTCTCCTTCAAGCATTCTGTC; GACCCTGGATGTTGAATTGCCACCTGTTTGCTGTGACATAGATATT; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC211038 protein sequence; Red=Cloning site Green=Tags(s); ; MATLIYVDKENGEPGTRVVAKDGLKLGSGPSIKALDGRSQVSTPRFGKTFDAPPALPKATRKALGTVNRA; TEKSVKTKGPLKQKQPSFSAKKMTEKTVKAKSSVPASDDAYPEIEKFFPFNPLDFESFDLPEEHQIAHLP; LSGVPLMILDEERELEKLFQLGPPSPVKMPSPPWESNLLQSPSSILSTLDVELPPVCCDIDI; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_004219
• ORF Size: 606 bp
• OTI Disclaimer: Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.; ; The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_004219.4
• RefSeq Size: 786 bp
• RefSeq ORF: 609 bp
• Locus ID: 9232
• UniProt ID: O95997
• Cytogenetics: 5q33.3
• Domains: Securin
• Protein Families: Druggable Genome, Transcription Factors
• Protein Pathways: Cell cycle, Oocyte meiosis
• MW: 22 kDa
• Summary: The encoded protein is a homolog of yeast securin proteins, which prevent separins from promoting sister chromatid separation. It is an anaphase-promoting complex (APC) substrate that associates with a separin until activation of the APC. The gene product has transforming activity in vitro and tumorigenic activity in vivo, and the gene is highly expressed in various tumors. The gene product contains 2 PXXP motifs, which are required for its transforming and tumorigenic activities, as well as for its stimulation of basic fibroblast growth factor expression. It also contains a destruction box (D box) that is required for its degradation by the APC. The acidic C-terminal region of the encoded protein can act as a transactivation domain. The gene product is mainly a cytosolic protein, although it partially localizes in the nucleus. Three transcript variants encoding the same protein have been found for this gene. [provided by RefSeq, Sep 2013]
