ARG2 (NM_001172) Human Tagged ORF Clone

  • Product Brand Image
SKU
RC206756
ARG2 (Myc-DDK-tagged)-Human arginase, type II (ARG2), nuclear gene encoding mitochondrial protein
  $686.00
In Stock*
Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol ARG2
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC206756 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGTCCCTAAGGGGCAGCCTCTCGCGTCTCCTCCAGACGCGAGTGCATTCCATCCTGAAGAAATCCGTCC
ACTCCGTGGCTGTGATAGGAGCCCCGTTCTCACAAGGGCAGAAAAGAAAAGGAGTGGAGCATGGTCCCGC
TGCCATAAGAGAAGCTGGCTTGATGAAAAGGCTCTCCAGTTTGGGCTGCCACCTAAAAGACTTTGGAGAT
TTGAGTTTTACTCCAGTCCCCAAAGATGATCTCTACAACAACCTGATAGTGAATCCACGCTCAGTGGGTC
TTGCCAACCAGGAACTGGCTGAGGTGGTTAGCAGAGCTGTGTCAGATGGCTACAGCTGTGTCACACTGGG
AGGAGACCACAGCCTGGCAATCGGTACCATTAGTGGCCATGCCCGACACTGCCCAGACCTTTGTGTTGTC
TGGGTTGATGCCCATGCTGACATCAACACACCCCTTACCACTTCATCAGGAAATCTCCATGGACAGCCAG
TTTCATTTCTCCTCAGAGAACTACAGGATAAGGTACCACAACTCCCAGGATTTTCCTGGATCAAACCTTG
TATCTCTTCTGCAAGTATTGTGTATATTGGTCTGAGAGACGTGGACCCTCCTGAACATTTTATTTTAAAG
AACTATGATATCCAGTATTTTTCCATGAGAGATATTGATCGACTTGGTATCCAGAAGGTCATGGAACGAA
CATTTGATCTGCTGATTGGCAAGAGACAAAGACCAATCCATTTGAGTTTTGATATTGATGCATTTGACCC
TACACTGGCTCCAGCCACAGGAACTCCTGTTGTCGGGGGACTAACCTATCGAGAAGGCATGTATATTGCT
GAGGAAATACACAATACAGGGTTGCTATCAGCACTGGATCTTGTTGAAGTCAATCCTCAGTTGGCCACCT
CAGAGGAAGAGGCGAAGACTACAGCTAACCTGGCAGTAGATGTGATTGCTTCAAGCTTTGGTCAGACAAG
AGAAGGAGGGCATATTGTCTATGACCAACTTCCTACTCCCAGTTCACCAGATGAATCAGAAAATCAAGCA
CGTGTGAGAATT


ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAG
GTTTAA
Protein Sequence
>RC206756 protein sequence
Red=Cloning site Green=Tags(s)

MSLRGSLSRLLQTRVHSILKKSVHSVAVIGAPFSQGQKRKGVEHGPAAIREAGLMKRLSSLGCHLKDFGD
LSFTPVPKDDLYNNLIVNPRSVGLANQELAEVVSRAVSDGYSCVTLGGDHSLAIGTISGHARHCPDLCVV
WVDAHADINTPLTTSSGNLHGQPVSFLLRELQDKVPQLPGFSWIKPCISSASIVYIGLRDVDPPEHFILK
NYDIQYFSMRDIDRLGIQKVMERTFDLLIGKRQRPIHLSFDIDAFDPTLAPATGTPVVGGLTYREGMYIA
EEIHNTGLLSALDLVEVNPQLATSEEEAKTTANLAVDVIASSFGQTREGGHIVYDQLPTPSSPDESENQA
RVRI

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_001172
ORF Size 1062 bp
OTI Disclaimer Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.

The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_001172.4
RefSeq Size 1981 bp
RefSeq ORF 1065 bp
Locus ID 384
UniProt ID P78540
Cytogenetics 14q24.1
Domains arginase
Protein Pathways Arginine and proline metabolism, Metabolic pathways
MW 38.6 kDa
Summary Arginase catalyzes the hydrolysis of arginine to ornithine and urea. At least two isoforms of mammalian arginase exists (types I and II) which differ in their tissue distribution, subcellular localization, immunologic crossreactivity and physiologic function. The type II isoform encoded by this gene, is located in the mitochondria and expressed in extra-hepatic tissues, especially kidney. The physiologic role of this isoform is poorly understood; it is thought to play a role in nitric oxide and polyamine metabolism. Transcript variants of the type II gene resulting from the use of alternative polyadenylation sites have been described. provided by RefSeq, Jul 2008
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_001172" in other vectors (7)
SKU Description Size Price
RC206756L1 Lenti ORF clone of Human arginase, type II (ARG2), nuclear gene encoding mitochondrial protein, Myc-DDK-tagged 10 ug
$986.00
RC206756L2 Lenti ORF clone of Human arginase, type II (ARG2), nuclear gene encoding mitochondrial protein, mGFP tagged 10 ug
$986.00
RC206756L3 Lenti ORF clone of Human arginase, type II (ARG2), nuclear gene encoding mitochondrial protein, Myc-DDK-tagged 10 ug
$986.00
RC206756L4 Lenti ORF clone of Human arginase, type II (ARG2), nuclear gene encoding mitochondrial protein, mGFP tagged 10 ug
$986.00
RG206756 ARG2 (tGFP-tagged) - Human arginase, type II (ARG2), nuclear gene encoding mitochondrial protein 10 ug
$886.00
SC125302 ARG2 (untagged)-Human arginase, type II (ARG2), nuclear gene encoding mitochondrial protein 10 ug
$686.00
SC323830 ARG2 (untagged)-Human arginase, type II (ARG2), nuclear gene encoding mitochondrial protein 10 ug
$686.00

Plasmid Map for RC206756

Download sequence for

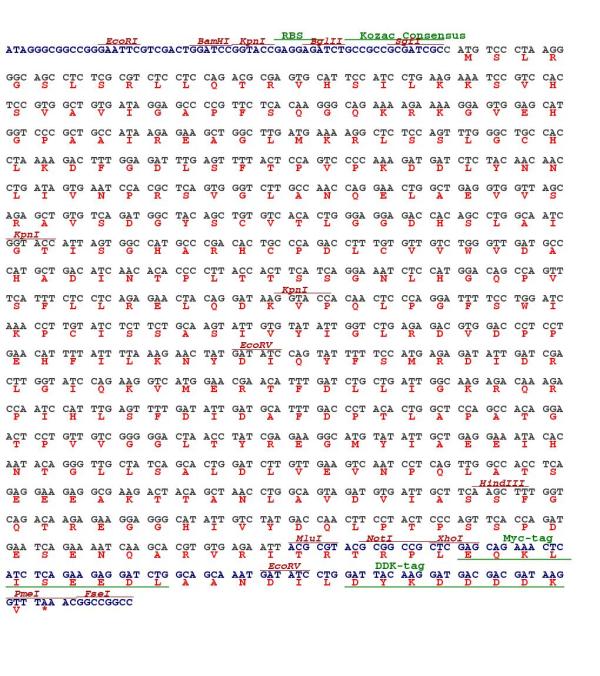

Cloning scheme for RC206756
