alpha Sarcoglycan (SGCA) (NM_000023) Human Tagged ORF Clone

SKU RC206577

SGCA (Myc-DDK-tagged)-Human sarcoglycan, alpha (50kDa dystrophin-associated glycoprotein) (SGCA), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: alpha Sarcoglycan
• Synonyms: 50DAG; adhalin; ADL; DAG2; DMDA2; LGMD2D; LGMDR3; SCARMD1
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

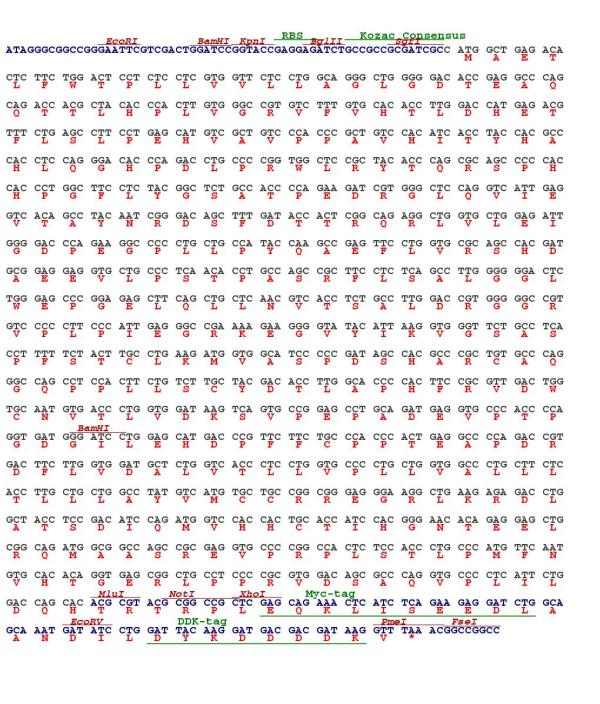

  ORF Nucleotide Sequence

  >RC206577 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCTGAGACACTCTTCTGGACTCCTCTCCTCGTGGTTCTCCTGGCAGGGCTGGGGGACACCGAGGCCC; AGCAGACCACGCTACACCCACTTGTGGGCCGTGTCTTTGTGCACACCTTGGACCATGAGACGTTTCTGAG; CCTTCCTGAGCATGTCGCTGTCCCACCCGCTGTCCACATCACCTACCACGCCCACCTCCAGGGACACCCA; GACCTGCCCCGGTGGCTCCGCTACACCCAGCGCAGCCCCCACCACCCTGGCTTCCTCTACGGCTCTGCCA; CCCCAGAAGATCGTGGGCTCCAGGTCATTGAGGTCACAGCCTACAATCGGGACAGCTTTGATACCACTCG; GCAGAGGCTGGTGCTGGAGATTGGGGACCCAGAAGGCCCCCTGCTGCCATACCAAGCCGAGTTCCTGGTG; CGCAGCCACGATGCGGAGGAGGTGCTGCCCTCAACACCTGCCAGCCGCTTCCTCTCAGCCTTGGGGGGAC; TCTGGGAGCCCGGAGAGCTTCAGCTGCTCAACGTCACCTCTGCCTTGGACCGTGGGGGCCGTGTCCCCCT; TCCCATTGAGGGCCGAAAAGAAGGGGTATACATTAAGGTGGGTTCTGCCTCACCTTTTTCTACTTGCCTG; AAGATGGTGGCATCCCCCGATAGCCACGCCCGCTGTGCCCAGGGCCAGCCTCCACTTCTGTCTTGCTACG; ACACCTTGGCACCCCACTTCCGCGTTGACTGGTGCAATGTGACCCTGGTGGATAAGTCAGTGCCGGAGCC; TGCAGATGAGGTGCCCACCCCAGGTGATGGGATCCTGGAGCATGACCCGTTCTTCTGCCCACCCACTGAG; GCCCCAGACCGTGACTTCTTGGTGGATGCTCTGGTCACCCTCCTGGTGCCCCTGCTGGTGGCCCTGCTTC; TCACCTTGCTGCTGGCCTATGTCATGTGCTGCCGGCGGGAGGGAAGGCTGAAGAGAGACCTGGCTACCTC; CGACATCCAGATGGTCCACCACTGCACCATCCACGGGAACACAGAGGAGCTGCGGCAGATGGCGGCCAGC; CGCGAGGTGCCCCGGCCACTCTCCACCCTGCCCATGTTCAATGTGCACACAGGTGAGCGGCTGCCTCCCC; GCGTGGACAGCGCCCAGGTGCCCCTCATTCTGGACCAGCAC; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC206577 protein sequence; Red=Cloning site Green=Tags(s); ; MAETLFWTPLLVVLLAGLGDTEAQQTTLHPLVGRVFVHTLDHETFLSLPEHVAVPPAVHITYHAHLQGHP; DLPRWLRYTQRSPHHPGFLYGSATPEDRGLQVIEVTAYNRDSFDTTRQRLVLEIGDPEGPLLPYQAEFLV; RSHDAEEVLPSTPASRFLSALGGLWEPGELQLLNVTSALDRGGRVPLPIEGRKEGVYIKVGSASPFSTCL; KMVASPDSHARCAQGQPPLLSCYDTLAPHFRVDWCNVTLVDKSVPEPADEVPTPGDGILEHDPFFCPPTE; APDRDFLVDALVTLLVPLLVALLLTLLLAYVMCCRREGRLKRDLATSDIQMVHHCTIHGNTEELRQMAAS; REVPRPLSTLPMFNVHTGERLPPRVDSAQVPLILDQH; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000023
• ORF Size: 1161 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000023.4
• RefSeq Size: 1441 bp
• RefSeq ORF: 1164 bp
• Locus ID: 6442
• UniProt ID: Q16586
• Cytogenetics: 17q21.33
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: Arrhythmogenic right ventricular cardiomyopathy (ARVC), Dilated cardiomyopathy, Hypertrophic cardiomyopathy (HCM), Viral myocarditis
• MW: 42.9 kDa
• Summary: This gene encodes a component of the dystrophin-glycoprotein complex (DGC), which is critical to the stability of muscle fiber membranes and to the linking of the actin cytoskeleton to the extracellular matrix. Its expression is thought to be restricted to striated muscle. Mutations in this gene result in type 2D autosomal recessive limb-girdle muscular dystrophy. Multiple transcript variants encoding different isoforms have been found for this gene. [provided by RefSeq, Oct 2008]
