IL3RA (NM_002183) Human Tagged ORF Clone

SKU RC206420

IL3RA (Myc-DDK-tagged)-Human interleukin 3 receptor, alpha (low affinity) (IL3RA)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: IL3RA
• Synonyms: CD123; hIL-3Ra; IL3R; IL3RAY; IL3RX; IL3RY
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

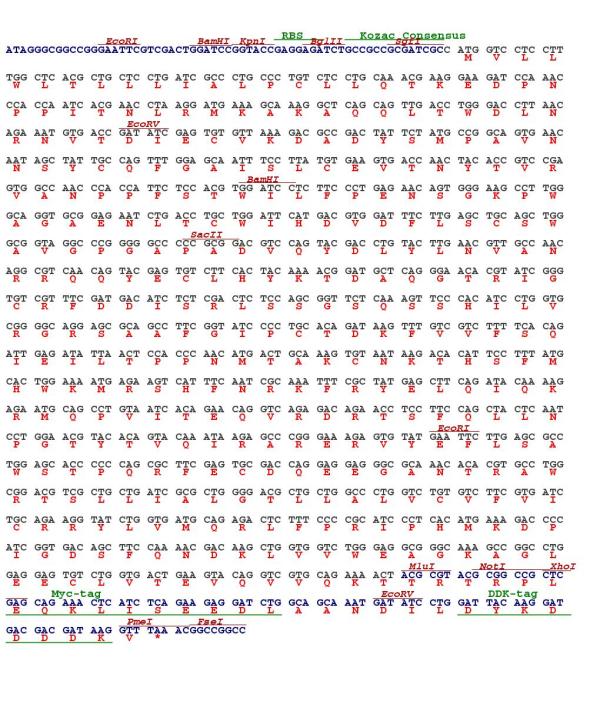

  ORF Nucleotide Sequence

  >RC206420 representing NM_002183; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGTCCTCCTTTGGCTCACGCTGCTCCTGATCGCCCTGCCCTGTCTCCTGCAAACGAAGGAAGATCCAA; ACCCACCAATCACGAACCTAAGGATGAAAGCAAAGGCTCAGCAGTTGACCTGGGACCTTAACAGAAATGT; GACCGATATCGAGTGTGTTAAAGACGCCGACTATTCTATGCCGGCAGTGAACAATAGCTATTGCCAGTTT; GGAGCAATTTCCTTATGTGAAGTGACCAACTACACCGTCCGAGTGGCCAACCCACCATTCTCCACGTGGA; TCCTCTTCCCTGAGAACAGTGGGAAGCCTTGGGCAGGTGCGGAGAATCTGACCTGCTGGATTCATGACGT; GGATTTCTTGAGCTGCAGCTGGGCGGTAGGCCCGGGGGCCCCCGCGGACGTCCAGTACGACCTGTACTTG; AACGTTGCCAACAGGCGTCAACAGTACGAGTGTCTTCACTACAAAACGGATGCTCAGGGAACACGTATCG; GGTGTCGTTTCGATGACATCTCTCGACTCTCCAGCGGTTCTCAAAGTTCCCACATCCTGGTGCGGGGCAG; GAGCGCAGCCTTCGGTATCCCCTGCACAGATAAGTTTGTCGTCTTTTCACAGATTGAGATATTAACTCCA; CCCAACATGACTGCAAAGTGTAATAAGACACATTCCTTTATGCACTGGAAAATGAGAAGTCATTTCAATC; GCAAATTTCGCTATGAGCTTCAGATACAAAAGAGAATGCAGCCTGTAATCACAGAACAGGTCAGAGACAG; AACCTCCTTCCAGCTACTCAATCCTGGAACGTACACAGTACAAATAAGAGCCCGGGAAAGAGTGTATGAA; TTCTTGAGCGCCTGGAGCACCCCCCAGCGCTTCGAGTGCGACCAGGAGGAGGGCGCAAACACACGTGCCT; GGCGGACGTCGCTGCTGATCGCGCTGGGGACGCTGCTGGCCCTGGTCTGTGTCTTCGTGATCTGCAGAAG; GTATCTGGTGATGCAGAGACTCTTTCCCCGCATCCCTCACATGAAAGACCCCATCGGTGACAGCTTCCAA; AACGACAAGCTGGTGGTCTGGGAGGCGGGCAAAGCCGGCCTGGAGGAGTGTCTGGTGACTGAAGTACAGG; TCGTGCAGAAAACT; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC206420 representing NM_002183; Red=Cloning site Green=Tags(s); ; MVLLWLTLLLIALPCLLQTKEDPNPPITNLRMKAKAQQLTWDLNRNVTDIECVKDADYSMPAVNNSYCQF; GAISLCEVTNYTVRVANPPFSTWILFPENSGKPWAGAENLTCWIHDVDFLSCSWAVGPGAPADVQYDLYL; NVANRRQQYECLHYKTDAQGTRIGCRFDDISRLSSGSQSSHILVRGRSAAFGIPCTDKFVVFSQIEILTP; PNMTAKCNKTHSFMHWKMRSHFNRKFRYELQIQKRMQPVITEQVRDRTSFQLLNPGTYTVQIRARERVYE; FLSAWSTPQRFECDQEEGANTRAWRTSLLIALGTLLALVCVFVICRRYLVMQRLFPRIPHMKDPIGDSFQ; NDKLVVWEAGKAGLEECLVTEVQVVQKT; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_002183
• ORF Size: 1134 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_002183.4
• RefSeq Size: 1726 bp
• RefSeq ORF: 1137 bp
• Locus ID: 3563
• UniProt ID: P26951
• Cytogenetics: X;Y
• Protein Families: Transmembrane
• Protein Pathways: Apoptosis, Cytokine-cytokine receptor interaction, Hematopoietic cell lineage, Jak-STAT signaling pathway
• MW: 43.33 kDa
• Summary: The protein encoded by this gene is an interleukin 3 specific subunit of a heterodimeric cytokine receptor. The receptor is comprised of a ligand specific alpha subunit and a signal transducing beta subunit shared by the receptors for interleukin 3 (IL3), colony stimulating factor 2 (CSF2/GM-CSF), and interleukin 5 (IL5). The binding of this protein to IL3 depends on the beta subunit. The beta subunit is activated by the ligand binding, and is required for the biological activities of IL3. This gene and the gene encoding the colony stimulating factor 2 receptor alpha chain (CSF2RA) form a cytokine receptor gene cluster in a X-Y pseudoautosomal region on chromosomes X or Y. Alternatively spliced transcript variants encoding distinct isoforms have been found. [provided by RefSeq, Jun 2012]
