MEK4 (MAP2K4) (NM_003010) Human Tagged ORF Clone

SKU RC206051

MAP2K4 (Myc-DDK-tagged)-Human mitogen-activated protein kinase kinase 4 (MAP2K4)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: MEK4
• Synonyms: JNKK; JNKK1; MAPKK4; MEK4; MKK4; PRKMK4; SAPKK-1; SAPKK1; SEK1; SERK1; SKK1
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

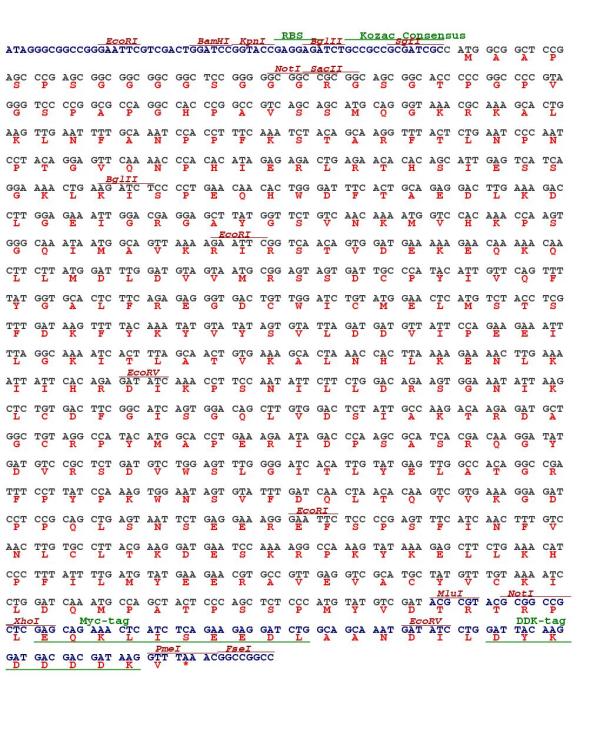

  >RC206051 representing NM_003010; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCGGCTCCGAGCCCGAGCGGCGGCGGCGGCTCCGGGGGCGGCCGCGGCAGCGGCACCCCCGGCCCCG; TAGGGTCCCCGGCGCCAGGCCACCCGGCCGTCAGCAGCATGCAGGGTAAACGCAAAGCACTGAAGTTGAA; TTTTGCAAATCCACCTTTCAAATCTACAGCAAGGTTTACTCTGAATCCCAATCCTACAGGAGTTCAAAAC; CCACACATAGAGAGACTGAGAACACACAGCATTGAGTCATCAGGAAAACTGAAGATCTCCCCTGAACAAC; ACTGGGATTTCACTGCAGAGGACTTGAAAGACCTTGGAGAAATTGGACGAGGAGCTTATGGTTCTGTCAA; CAAAATGGTCCACAAACCAAGTGGGCAAATAATGGCAGTTAAAAGAATTCGGTCAACAGTGGATGAAAAA; GAACAAAAACAACTTCTTATGGATTTGGATGTAGTAATGCGGAGTAGTGATTGCCCATACATTGTTCAGT; TTTATGGTGCACTCTTCAGAGAGGGTGACTGTTGGATCTGTATGGAACTCATGTCTACCTCGTTTGATAA; GTTTTACAAATATGTATATAGTGTATTAGATGATGTTATTCCAGAAGAAATTTTAGGCAAAATCACTTTA; GCAACTGTGAAAGCACTAAACCACTTAAAAGAAAACTTGAAAATTATTCACAGAGATATCAAACCTTCCA; ATATTCTTCTGGACAGAAGTGGAAATATTAAGCTCTGTGACTTCGGCATCAGTGGACAGCTTGTGGACTC; TATTGCCAAGACAAGAGATGCTGGCTGTAGGCCATACATGGCACCTGAAAGAATAGACCCAAGCGCATCA; CGACAAGGATATGATGTCCGCTCTGATGTCTGGAGTTTGGGGATCACATTGTATGAGTTGGCCACAGGCC; GATTTCCTTATCCAAAGTGGAATAGTGTATTTGATCAACTAACACAAGTCGTGAAAGGAGATCCTCCGCA; GCTGAGTAATTCTGAGGAAAGGGAATTCTCCCCGAGTTTCATCAACTTTGTCAACTTGTGCCTTACGAAG; GATGAATCCAAAAGGCCAAAGTATAAAGAGCTTCTGAAACATCCCTTTATTTTGATGTATGAAGAACGTG; CCGTTGAGGTCGCATGCTATGTTTGTAAAATCCTGGATCAAATGCCAGCTACTCCCAGCTCTCCCATGTA; TGTCGAT; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC206051 representing NM_003010; Red=Cloning site Green=Tags(s); ; MAAPSPSGGGGSGGGRGSGTPGPVGSPAPGHPAVSSMQGKRKALKLNFANPPFKSTARFTLNPNPTGVQN; PHIERLRTHSIESSGKLKISPEQHWDFTAEDLKDLGEIGRGAYGSVNKMVHKPSGQIMAVKRIRSTVDEK; EQKQLLMDLDVVMRSSDCPYIVQFYGALFREGDCWICMELMSTSFDKFYKYVYSVLDDVIPEEILGKITL; ATVKALNHLKENLKIIHRDIKPSNILLDRSGNIKLCDFGISGQLVDSIAKTRDAGCRPYMAPERIDPSAS; RQGYDVRSDVWSLGITLYELATGRFPYPKWNSVFDQLTQVVKGDPPQLSNSEEREFSPSFINFVNLCLTK; DESKRPKYKELLKHPFILMYEERAVEVACYVCKILDQMPATPSSPMYVD; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_003010
• ORF Size: 1197 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_003010.4
• RefSeq Size: 3752 bp
• RefSeq ORF: 1200 bp
• Locus ID: 6416
• UniProt ID: P45985
• Cytogenetics: 17p12
• Domains: pkinase, S_TKc, TyrKc
• Protein Families: Druggable Genome, Protein Kinase
• Protein Pathways: Epithelial cell signaling in Helicobacter pylori infection, ErbB signaling pathway, Fc epsilon RI signaling pathway, GnRH signaling pathway, MAPK signaling pathway, Toll-like receptor signaling pathway
• MW: 44.1 kDa
• Summary: This gene encodes a member of the mitogen-activated protein kinase (MAPK) family. Members of this family act as an integration point for multiple biochemical signals and are involved in a wide variety of cellular processes such as proliferation, differentiation, transcription regulation, and development. They form a three-tiered signaling module composed of MAPKKKs, MAPKKs, and MAPKs. This protein is phosphorylated at serine and threonine residues by MAPKKKs and subsequently phosphorylates downstream MAPK targets at threonine and tyrosine residues. A similar protein in mouse has been reported to play a role in liver organogenesis. A pseudogene of this gene is located on the long arm of chromosome X. Alternative splicing results in multiple transcript variants. [provided by RefSeq, Jul 2013]
