COX5A (NM_004255) Human Tagged ORF Clone

  • Product Brand Image
SKU
RC206046
COX5A (Myc-DDK-tagged)-Human cytochrome c oxidase subunit Va (COX5A), nuclear gene encoding mitochondrial protein
  $150.00
In Stock*
Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol COX5A
Synonyms COX; COX-VA; MC4DN20; VA
Vector pCMV6-Entry
E. coli Selection Kanamycin (25 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RC206046 ORF sequence
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCTGGGCGCCGCTCTCCGCCGCTGCGCTGTGGCCGCAACCACCCGGGCCGACCCTCGAGGCCTCCTGC
ACTCCGCCCGGACCCCCGGCCCCGCCGTGGCTATCCAGTCAGTTCGCTGCTATTCCCATGGGTCACAGGA
GACAGATGAGGAGTTTGATGCTCGCTGGGTAACATACTTCAACAAGCCAGATATAGATGCCTGGGAATTG
CGTAAAGGGATAAACACACTTGTTACCTATGATATGGTTCCAGAGCCCAAAATCATTGATGCTGCTTTGC
GGGCATGCAGACGGTTAAATGATTTTGCTAGTACAGTTCGTATCCTAGAGGTTGTTAAGGACAAAGCAGG
ACCTCATAAGGAAATCTACCCCTATGTCATCCAGGAACTTAGACCAACTTTAAATGAACTGGGAATCTCC
ACTCCGGAGGAACTGGGCCTTGACAAAGTG


ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT
ACAAGGATGACGACGATAAG
GTTTAA
Protein Sequence
>RC206046 protein sequence
Red=Cloning site Green=Tags(s)

MLGAALRRCAVAATTRADPRGLLHSARTPGPAVAIQSVRCYSHGSQETDEEFDARWVTYFNKPDIDAWEL
RKGINTLVTYDMVPEPKIIDAALRACRRLNDFASTVRILEVVKDKAGPHKEIYPYVIQELRPTLNELGIS
TPEELGLDKV

TRTRPLEQKLISEEDLAANDILDYKDDDDKV
Chromatograms Chromatograms
Sequencher program is needed, download here
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_004255
ORF Size 450 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_004255.4
RefSeq Size 784 bp
RefSeq ORF 453 bp
Locus ID 9377
UniProt ID P20674
Cytogenetics 15q24.2
Domains COX5A
Protein Pathways Alzheimer's disease, Cardiac muscle contraction, Huntington's disease, Metabolic pathways, Oxidative phosphorylation, Parkinson's disease
MW 16.8 kDa
Summary Cytochrome c oxidase (COX) is the terminal enzyme of the mitochondrial respiratory chain. It is a multi-subunit enzyme complex that couples the transfer of electrons from cytochrome c to molecular oxygen and contributes to a proton electrochemical gradient across the inner mitochondrial membrane. The complex consists of 13 mitochondrial- and nuclear-encoded subunits. The mitochondrially-encoded subunits perform the electron transfer of proton pumping activities. The functions of the nuclear-encoded subunits are unknown but they may play a role in the regulation and assembly of the complex. This gene encodes the nuclear-encoded subunit Va of the human mitochondrial respiratory chain enzyme. A pseudogene COX5AP1 has been found in chromosome 14q22. provided by RefSeq, Jul 2008
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_004255" in other vectors (4)
SKU Description Size Price
RC206046L3 Lenti ORF clone of Human cytochrome c oxidase subunit Va (COX5A), nuclear gene encoding mitochondrial protein, Myc-DDK-tagged 10 ug
$450.00
RC206046L4 Lenti ORF clone of Human cytochrome c oxidase subunit Va (COX5A), nuclear gene encoding mitochondrial protein, mGFP tagged 10 ug
$450.00
RG206046 COX5A (tGFP-tagged) - Human cytochrome c oxidase subunit Va (COX5A), nuclear gene encoding mitochondrial protein 10 ug
$489.00
SC117461 COX5A (untagged)-Human cytochrome c oxidase subunit Va (COX5A), nuclear gene encoding mitochondrial protein 10 ug
$150.00

Plasmid Map for RC206046

Download sequence for

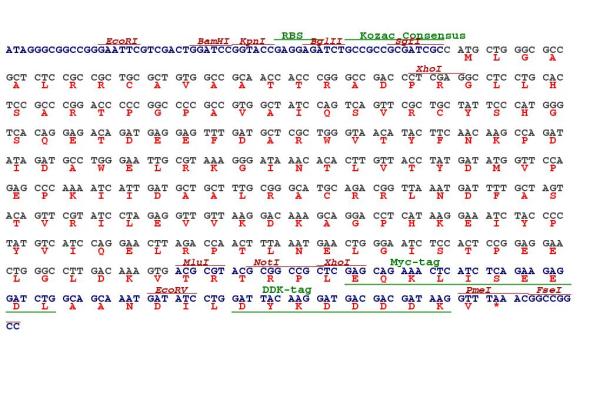

Cloning scheme for RC206046

Circular map for RC206046

file-alt Citations

Ophiobolin A Covalently Targets Mitochondrial Complex IV Leading to Metabolic Collapse in Cancer Cells
Gowans, Thach, Zhu et al
ACS Chem Biol (2024)
Cited by 13
AI Summary: OriGene contributed to this study by providing the original COX5A (RC206046) and HIGD2A (RC201223) plasmids, which were used to investigate the molecular targets and mechanisms of Ophiobolin A in cancer cell mitochondrial function.
Snippet: Original COX5A and HIGD2A plasmids were purchased from Origene (RC206046 and RC201223), and site-directed mutagenesis was performed using Agilent’s QuikChange Lightning Site-Directed Mutagenesis Kit (210518). …
miR-204/COX5A axis contributes to invasion and chemotherapy resistance in estrogen receptor-positive breast cancers
Zeng, Li, Xia et al
Cancer Lett. (2020) 492, 185-196 DOI: 10.1016/j.canlet.2020.07.027
Cited by 26
AI Summary: OriGene’s pCMV/entry vector was used to construct the pCMV/COX5A plasmid, enabling the study of COX5A’s role in breast cancer cell invasion and chemoresistance.
Snippet: pCMV/COX5A was constructed by inserting the COX5A coding sequence (CDS) into the linearized pCMV/entry (OriGene Technologies, Beijing, China) with the ClonExpress II One Step Cloning Kit (Vazyme, Jiang Su, China). The COX5A-3′ UTR-WT and COX5A-3′ UTR-MT was constructed by inserting the wild type and mutant type sequences of COX5A 3′ UTR into the Pmir-GLO vector (Promega, Madison, WI, USA)
Showing 1-2 of 2 papers.
Powered by BizGenius
*Delivery time may vary from web posted schedule. Occasional delays may occur due to unforeseen complexities in the preparation of your product. International customers may expect an additional 1-2 weeks in shipping.
