DYRK1B (NM_004714) Human Tagged ORF Clone

SKU RC205861

DYRK1B (Myc-DDK-tagged)-Human dual-specificity tyrosine-(Y)-phosphorylation regulated kinase 1B (DYRK1B), transcript variant a

Product Data

• Target Symbol: DYRK1B
• Synonyms: AOMS3; MIRK
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

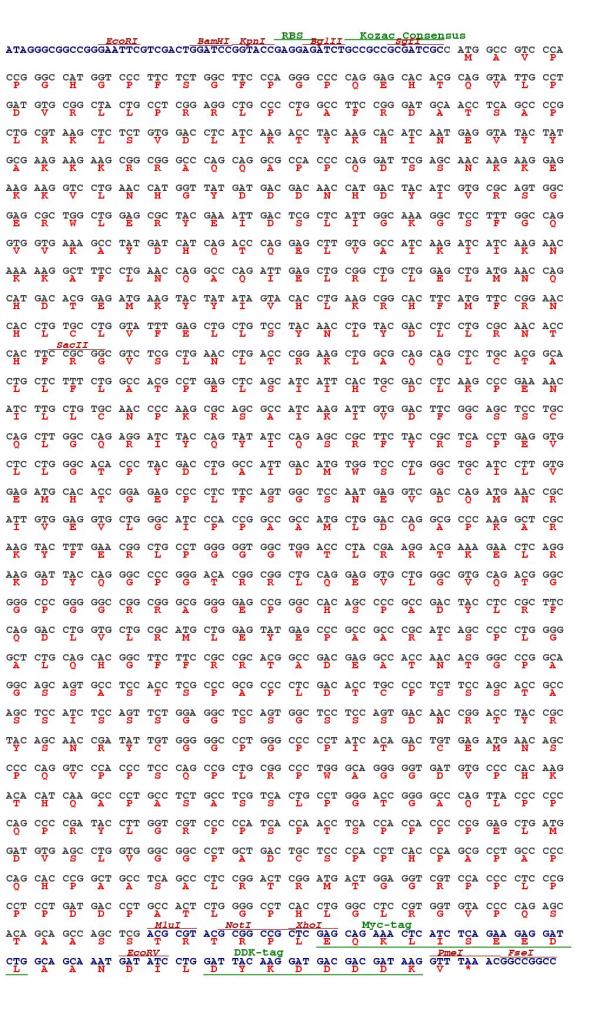

  ORF Nucleotide Sequence

  >RC205861 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCCGTCCCACCGGGCCATGGTCCCTTCTCTGGCTTCCCAGGGCCCCAGGAGCACACGCAGGTATTGC; CTGATGTGCGGCTACTGCCTCGGAGGCTGCCCCTGGCCTTCCGGGATGCAACCTCAGCCCCGCTGCGTAA; GCTCTCTGTGGACCTCATCAAGACCTACAAGCACATCAATGAGGTATACTATGCGAAGAAGAAGCGGCGG; GCCCAGCAGGCGCCACCCCAGGATTCGAGCAACAAGAAGGAGAAGAAGGTCCTGAACCATGGTTATGATG; ACGACAACCATGACTACATCGTGCGCAGTGGCGAGCGCTGGCTGGAGCGCTACGAAATTGACTCGCTCAT; TGGCAAAGGCTCCTTTGGCCAGGTGGTGAAAGCCTATGATCATCAGACCCAGGAGCTTGTGGCCATCAAG; ATCATCAAGAACAAAAAGGCTTTCCTGAACCAGGCCCAGATTGAGCTGCGGCTGCTGGAGCTGATGAACC; AGCATGACACGGAGATGAAGTACTATATAGTACACCTGAAGCGGCACTTCATGTTCCGGAACCACCTGTG; CCTGGTATTTGAGCTGCTGTCCTACAACCTGTACGACCTCCTGCGCAACACCCACTTCCGCGGCGTCTCG; CTGAACCTGACCCGGAAGCTGGCGCAGCAGCTCTGCACGGCACTGCTCTTTCTGGCCACGCCTGAGCTCA; GCATCATTCACTGCGACCTCAAGCCCGAAAACATCTTGCTGTGCAACCCCAAGCGCAGCGCCATCAAGAT; TGTGGACTTCGGCAGCTCCTGCCAGCTTGGCCAGAGGATCTACCAGTATATCCAGAGCCGCTTCTACCGC; TCACCTGAGGTGCTCCTGGGCACACCCTACGACCTGGCCATTGACATGTGGTCCCTGGGCTGCATCCTTG; TGGAGATGCACACCGGAGAGCCCCTCTTCAGTGGCTCCAATGAGGTCGACCAGATGAACCGCATTGTGGA; GGTGCTGGGCATCCCACCGGCCGCCATGCTGGACCAGGCGCCCAAGGCTCGCAAGTACTTTGAACGGCTG; CCTGGGGGTGGCTGGACCCTACGAAGGACGAAAGAACTCAGGAAGGATTACCAGGGCCCCGGGACACGGC; GGCTGCAGGAGGTGCTGGGCGTGCAGACGGGCGGGCCCGGGGGCCGGCGGGCGGGGGAGCCGGGCCACAG; CCCCGCCGACTACCTCCGCTTCCAGGACCTGGTGCTGCGCATGCTGGAGTATGAGCCCGCCGCCCGCATC; AGCCCCCTGGGGGCTCTGCAGCACGGCTTCTTCCGCCGCACGGCCGACGAGGCCACCAACACGGGCCCGG; CAGGCAGCAGTGCCTCCACCTCGCCCGCGCCCCTCGACACCTGCCCCTCTTCCAGCACCGCCAGCTCCAT; CTCCAGTTCTGGAGGCTCCAGTGGCTCCTCCAGTGACAACCGGACCTACCGCTACAGCAACCGATATTGT; GGGGGCCCTGGGCCCCCTATCACAGACTGTGAGATGAACAGCCCCCAGGTCCCACCCTCCCAGCCGCTGC; GGCCCTGGGCAGGGGGTGATGTGCCCCACAAGACACATCAAGCCCCTGCCTCTGCCTCGTCACTGCCTGG; GACCGGGGCCCAGTTACCCCCCCAGCCCCGATACCTTGGTCGTCCCCCATCACCAACCTCACCACCACCC; CCGGAGCTGATGGATGTGAGCCTGGTGGGCGGCCCTGCTGACTGCTCCCCACCTCACCCAGCGCCTGCCC; CCCAGCACCCGGCTGCCTCAGCCCTCCGGACTCGGATGACTGGAGGTCGTCCACCCCTCCCGCCTCCTGA; TGACCCTGCCACTCTGGGGCCTCACCTGGGCCTCCGTGGTGTACCCCAGAGCACAGCAGCCAGCTCG; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC205861 protein sequence; Red=Cloning site Green=Tags(s); ; MAVPPGHGPFSGFPGPQEHTQVLPDVRLLPRRLPLAFRDATSAPLRKLSVDLIKTYKHINEVYYAKKKRR; AQQAPPQDSSNKKEKKVLNHGYDDDNHDYIVRSGERWLERYEIDSLIGKGSFGQVVKAYDHQTQELVAIK; IIKNKKAFLNQAQIELRLLELMNQHDTEMKYYIVHLKRHFMFRNHLCLVFELLSYNLYDLLRNTHFRGVS; LNLTRKLAQQLCTALLFLATPELSIIHCDLKPENILLCNPKRSAIKIVDFGSSCQLGQRIYQYIQSRFYR; SPEVLLGTPYDLAIDMWSLGCILVEMHTGEPLFSGSNEVDQMNRIVEVLGIPPAAMLDQAPKARKYFERL; PGGGWTLRRTKELRKDYQGPGTRRLQEVLGVQTGGPGGRRAGEPGHSPADYLRFQDLVLRMLEYEPAARI; SPLGALQHGFFRRTADEATNTGPAGSSASTSPAPLDTCPSSSTASSISSSGGSSGSSSDNRTYRYSNRYC; GGPGPPITDCEMNSPQVPPSQPLRPWAGGDVPHKTHQAPASASSLPGTGAQLPPQPRYLGRPPSPTSPPP; PELMDVSLVGGPADCSPPHPAPAPQHPAASALRTRMTGGRPPLPPPDDPATLGPHLGLRGVPQSTAASS; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_004714
• ORF Size: 1887 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.

Reference Data

• RefSeq: NM_004714.3
• RefSeq Size: 2588 bp
• RefSeq ORF: 1890 bp
• Locus ID: 9149
• UniProt ID: Q9Y463
• Cytogenetics: 19q13.2
• Protein Families: Druggable Genome, Protein Kinase, Transcription Factors
• MW: 69.2 kDa
• Summary: This gene encodes a member of a family of nuclear-localized protein kinases. The encoded protein participates in the regulation of the cell cycle. Expression of this gene may be altered in tumor cells, and mutations in this gene were found to cause abdominal obesity-metabolic syndrome 3. Alternative splicing results in multiple transcript variants. [provided by RefSeq, Jun 2014]
