PI 3 Kinase Class 3 (PIK3C3) (NM_002647) Human Tagged ORF Clone

SKU RC205317

PIK3C3 (Myc-DDK-tagged)-Human phosphoinositide-3-kinase, class 3 (PIK3C3)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: PI 3 Kinase Class 3
• Synonyms: hVps34; VPS34; Vps34
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

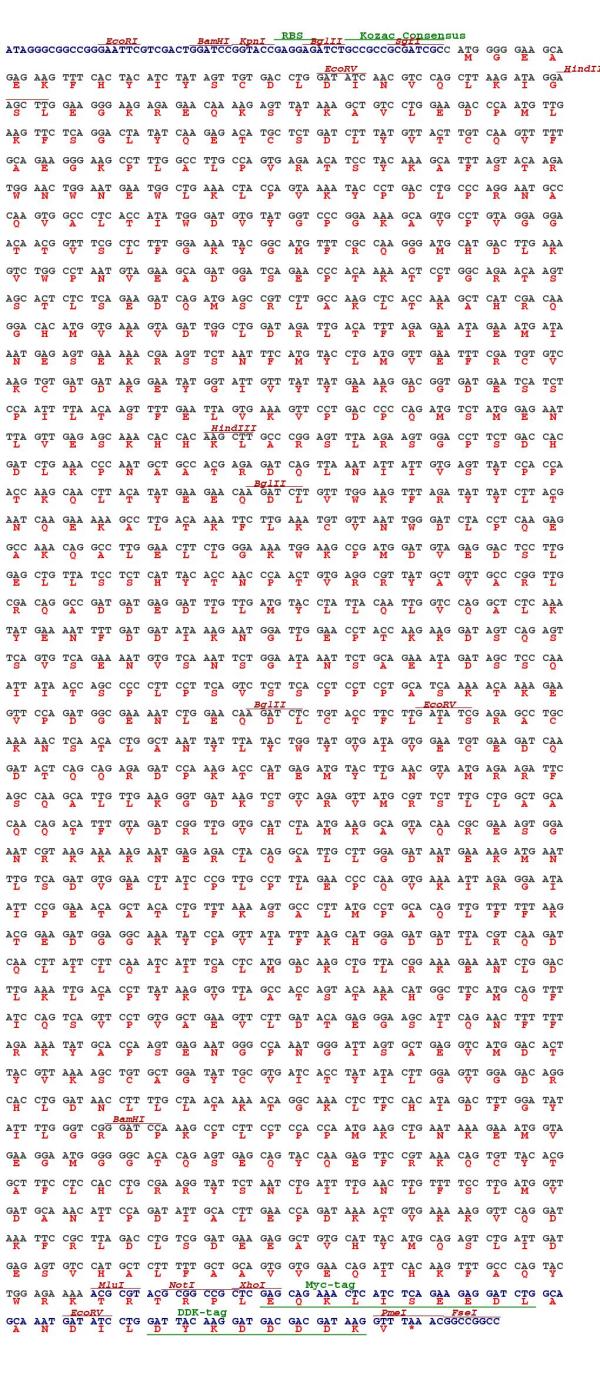

  ORF Nucleotide Sequence

  >RC205317 representing NM_002647; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGGGGAAGCAGAGAAGTTTCACTACATCTATAGTTGTGACCTGGATATCAACGTCCAGCTTAAGATAG; GAAGCTTGGAAGGGAAGAGAGAACAAAAGAGTTATAAAGCTGTCCTGGAAGACCCAATGTTGAAGTTCTC; AGGACTATATCAAGAGACATGCTCTGATCTTTATGTTACTTGTCAAGTTTTTGCAGAAGGGAAGCCTTTG; GCCTTGCCAGTGAGAACATCCTACAAAGCATTTAGTACAAGATGGAACTGGAATGAATGGCTGAAACTAC; CAGTAAAATACCCTGACCTGCCCAGGAATGCCCAAGTGGCCCTCACCATATGGGATGTGTATGGTCCCGG; AAAAGCAGTGCCTGTAGGAGGAACAACGGTTTCGCTCTTTGGAAAATACGGCATGTTTCGCCAAGGGATG; CATGACTTGAAAGTCTGGCCTAATGTAGAAGCAGATGGATCAGAACCCACAAAAACTCCTGGCAGAACAA; GTAGCACTCTCTCAGAAGATCAGATGAGCCGTCTTGCCAAGCTCACCAAAGCTCATCGACAAGGACACAT; GGTGAAAGTAGATTGGCTGGATAGATTGACATTTAGAGAAATAGAAATGATAAATGAGAGTGAAAAACGA; AGTTCTAATTTCATGTACCTGATGGTTGAATTTCGATGTGTCAAGTGTGATGATAAGGAATATGGTATTG; TTTATTATGAAAAGGACGGTGATGAATCATCTCCAATTTTAACAAGTTTTGAATTAGTGAAAGTTCCTGA; CCCCCAGATGTCTATGGAGAATTTAGTTGAGAGCAAACACCACAAGCTTGCCCGGAGTTTAAGAAGTGGA; CCTTCTGACCACGATCTGAAACCCAATGCTGCCACGAGAGATCAGTTAAATATTATTGTGAGTTATCCAC; CAACCAAGCAACTTACATATGAAGAACAAGATCTTGTTTGGAAGTTTAGATATTATCTTACGAATCAAGA; AAAAGCCTTGACAAAATTCTTGAAATGTGTTAATTGGGATCTACCTCAAGAGGCCAAACAGGCCTTGGAA; CTTCTGGGAAAATGGAAGCCGATGGATGTAGAGGACTCCTTGGAGCTGTTATCCTCTCATTACACCAACC; CAACTGTGAGGCGTTATGCTGTTGCCCGGTTGCGACAGGCCGATGATGAGGATTTGTTGATGTACCTATT; ACAATTGGTCCAGGCTCTCAAATATGAAAATTTTGATGATATAAAGAATGGATTGGAACCTACCAAGAAG; GATAGTCAGAGTTCAGTGTCAGAAAATGTGTCAAATTCTGGAATAAATTCTGCAGAAATAGATAGCTCCC; AAATTATAACCAGCCCCCTTCCTTCAGTCTCTTCACCTCCTCCTGCATCAAAAACAAAAGAAGTTCCAGA; TGGCGAAAATCTGGAACAAGATCTCTGTACCTTCTTGATATCGAGAGCCTGCAAAAACTCAACACTGGCT; AATTATTTATACTGGTATGTGATAGTGGAATGTGAAGATCAAGATACTCAGCAGAGAGATCCAAAGACCC; ATGAGATGTACTTGAACGTAATGAGAAGATTCAGCCAAGCATTGTTGAAGGGTGATAAGTCTGTCAGAGT; TATGCGTTCTTTGCTGGCTGCACAACAGACATTTGTAGATCGGTTGGTGCATCTAATGAAGGCAGTACAA; CGCGAAAGTGGAAATCGTAAGAAAAAGAATGAGAGACTACAGGCATTGCTTGGAGATAATGAAAAGATGA; ATTTGTCAGATGTGGAACTTATCCCGTTGCCTTTAGAACCCCAAGTGAAAATTAGAGGAATAATTCCGGA; AACAGCTACACTGTTTAAAAGTGCCCTTATGCCTGCACAGTTGTTTTTTAAGACGGAAGATGGAGGCAAA; TATCCAGTTATATTTAAGCATGGAGATGATTTACGTCAAGATCAACTTATTCTTCAAATCATTTCACTCA; TGGACAAGCTGTTACGGAAAGAAAATCTGGACTTGAAATTGACACCTTATAAGGTGTTAGCCACCAGTAC; AAAACATGGCTTCATGCAGTTTATCCAGTCAGTTCCTGTGGCTGAAGTTCTTGATACAGAGGGAAGCATT; CAGAACTTTTTTAGAAAATATGCACCAAGTGAGAATGGGCCAAATGGGATTAGTGCTGAGGTCATGGACA; CTTACGTTAAAAGCTGTGCTGGATATTGCGTGATCACCTATATACTTGGAGTTGGAGACAGGCACCTGGA; TAACCTTTTGCTAACAAAAACAGGCAAACTCTTCCACATAGACTTTGGATATATTTTGGGTCGGGATCCA; AAGCCTCTTCCTCCACCAATGAAGCTGAATAAAGAAATGGTAGAAGGAATGGGGGGCACACAGAGTGAGC; AGTACCAAGAGTTCCGTAAACAGTGTTACACGGCTTTCCTCCACCTGCGAAGGTATTCTAATCTGATTTT; GAACTTGTTTTCCTTGATGGTTGATGCAAACATTCCAGATATTGCACTTGAACCAGATAAAACTGTGAAA; AAGGTTCAGGATAAATTCCGCTTAGACCTGTCGGATGAAGAGGCTGTGCATTACATGCAGAGTCTGATTG; ATGAGAGTGTCCATGCTCTTTTTGCTGCAGTGGTGGAACAGATTCACAAGTTTGCCCAGTACTGGAGAAA; A; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC205317 representing NM_002647; Red=Cloning site Green=Tags(s); ; MGEAEKFHYIYSCDLDINVQLKIGSLEGKREQKSYKAVLEDPMLKFSGLYQETCSDLYVTCQVFAEGKPL; ALPVRTSYKAFSTRWNWNEWLKLPVKYPDLPRNAQVALTIWDVYGPGKAVPVGGTTVSLFGKYGMFRQGM; HDLKVWPNVEADGSEPTKTPGRTSSTLSEDQMSRLAKLTKAHRQGHMVKVDWLDRLTFREIEMINESEKR; SSNFMYLMVEFRCVKCDDKEYGIVYYEKDGDESSPILTSFELVKVPDPQMSMENLVESKHHKLARSLRSG; PSDHDLKPNAATRDQLNIIVSYPPTKQLTYEEQDLVWKFRYYLTNQEKALTKFLKCVNWDLPQEAKQALE; LLGKWKPMDVEDSLELLSSHYTNPTVRRYAVARLRQADDEDLLMYLLQLVQALKYENFDDIKNGLEPTKK; DSQSSVSENVSNSGINSAEIDSSQIITSPLPSVSSPPPASKTKEVPDGENLEQDLCTFLISRACKNSTLA; NYLYWYVIVECEDQDTQQRDPKTHEMYLNVMRRFSQALLKGDKSVRVMRSLLAAQQTFVDRLVHLMKAVQ; RESGNRKKKNERLQALLGDNEKMNLSDVELIPLPLEPQVKIRGIIPETATLFKSALMPAQLFFKTEDGGK; YPVIFKHGDDLRQDQLILQIISLMDKLLRKENLDLKLTPYKVLATSTKHGFMQFIQSVPVAEVLDTEGSI; QNFFRKYAPSENGPNGISAEVMDTYVKSCAGYCVITYILGVGDRHLDNLLLTKTGKLFHIDFGYILGRDP; KPLPPPMKLNKEMVEGMGGTQSEQYQEFRKQCYTAFLHLRRYSNLILNLFSLMVDANIPDIALEPDKTVK; KVQDKFRLDLSDEEAVHYMQSLIDESVHALFAAVVEQIHKFAQYWRK; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_002647
• ORF Size: 2661 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_002647.4
• RefSeq Size: 3083 bp
• RefSeq ORF: 2664 bp
• Locus ID: 5289
• UniProt ID: Q8NEB9
• Cytogenetics: 18q12.3
• Domains: PI3Ka, PI3K_C2, PI3_PI4_kinase
• Protein Families: Druggable Genome
• Protein Pathways: Inositol phosphate metabolism, Metabolic pathways, Phosphatidylinositol signaling system, Regulation of autophagy
• MW: 101.4 kDa
• Summary: Catalytic subunit of the PI3K complex that mediates formation of phosphatidylinositol 3-phosphate; different complex forms are believed to play a role in multiple membrane trafficking pathways: PI3KC3-C1 is involved in initiation of autophagosomes and PI3KC3-C2 in maturation of autophagosomes and endocytosis. Involved in regulation of degradative endocytic trafficking and required for the abcission step in cytokinesis, probably in the context of PI3KC3-C2 (PubMed:20643123, PubMed:20208530). Involved in the transport of lysosomal enzyme precursors to lysosomes. Required for transport from early to late endosomes (By similarity).[UniProtKB/Swiss-Prot Function]
