BAIAP2L1 (NM_018842) Human Tagged ORF Clone

SKU RC202617

BAIAP2L1 (Myc-DDK-tagged)-Human BAI1-associated protein 2-like 1 (BAIAP2L1)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: BAIAP2L1
• Synonyms: IRTKS
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RC202617 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTCCCGGGGGCCCGAGGAGGTGAACCGGCTCACGGAGAGCACCTACCGGAATGTTATGGAACAGTTCA; ATCCTGGGCTGCGAAATTTAATAAACCTGGGGAAAAATTATGAGAAAGCTGTAAACGCTATGATCCTGGC; AGGAAAAGCCTACTACGATGGAGTGGCCAAGATCGGTGAGATTGCCACTGGGTCCCCCGTGTCAACTGAA; CTGGGACATGTCCTCATAGAGATTTCAAGTACCCACAAGAAACTCAACGAGAGTCTTGATGAAAATTTTA; AAAAATTCCACAAAGAGATTATCCATGAGCTGGAGAAGAAGATAGAACTTGACGTGAAATATATGAACGC; AACTCTAAAAAGATACCAAACAGAACACAAGAATAAATTAGAGTCTTTGGAGAAATCCCAAGCTGAGTTG; AAGAAGATCAGAAGGAAAAGCCAAGGAAGCCGAAACGCACTCAAATATGAACACAAAGAAATTGAGTATG; TGGAGACCGTTACTTCTCGTCAGAGTGAAATCCAGAAATTCATTGCAGATGGTTGCAAAGAGGCTCTGCT; TGAAGAGAAGAGGCGCTTCTGCTTTCTGGTTGATAAGCACTGTGGCTTTGCAAACCACATACATTATTAT; CACTTACAGTCTGCAGAACTACTGAATTCCAAGCTGCCTCGGTGGCAGGAGACCTGTGTTGATGCCATCA; AAGTGCCAGAGAAAATCATGAATATGATCGAAGAAATAAAGACCCCAGCCTCTACCCCCGTGTCTGGAAC; TCCTCAGGCTTCACCCATGATCGAGAGAAGCAATGTGGTTAGGAAAGATTACGACACCCTTTCTAAATGC; TCACCAAAGATGCCCCCCGCTCCTTCAGGCAGAGCATATACCAGTCCCTTGATCGATATGTTTAATAACC; CAGCCACGGCTGCCCCGAATTCACAAAGGGTAAATAATTCAACAGGTACTTCCGAAGATCCCAGTTTACA; GCGATCAGTTTCGGTTGCAACGGGACTGAACATGATGAAGAAGCAGAAAGTGAAGACCATCTTCCCGCAC; ACTGCGGGCTCCAACAAGACCTTACTCAGCTTTGCACAGGGAGATGTCATCACGCTGCTCATCCCCGAGG; AGAAGGATGGCTGGCTCTATGGAGAACACGACGTGTCCAAGGCGAGGGGTTGGTTCCCGTCGTCGTACAC; GAAGTTGCTGGAAGAAAATGAGACAGAAGCAGTGACCGTGCCCACGCCAAGCCCCACACCAGTGAGAAGC; ATCAGCACCGTGAACTTGTCTGAGAATAGCAGTGTTGTCATCCCCCCACCCGACTACTTGGAATGCTTGT; CCATGGGGGCAGCTGCCGACAGGAGAGCAGATTCGGCCAGGACGACATCCACCTTTAAGGCCCCAGCGTC; CAAGCCCGAGACCGCGGCTCCTAACGATGCCAACGGGACTGCAAAGCCGCCTTTTCTCAGCGGAGAAAAC; CCCTTTGCCACTGTGAAACTCCGCCCGACTGTGACGAATGATCGCTCGGCACCCATCATTCGA; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC202617 protein sequence; Red=Cloning site Green=Tags(s); ; MSRGPEEVNRLTESTYRNVMEQFNPGLRNLINLGKNYEKAVNAMILAGKAYYDGVAKIGEIATGSPVSTE; LGHVLIEISSTHKKLNESLDENFKKFHKEIIHELEKKIELDVKYMNATLKRYQTEHKNKLESLEKSQAEL; KKIRRKSQGSRNALKYEHKEIEYVETVTSRQSEIQKFIADGCKEALLEEKRRFCFLVDKHCGFANHIHYY; HLQSAELLNSKLPRWQETCVDAIKVPEKIMNMIEEIKTPASTPVSGTPQASPMIERSNVVRKDYDTLSKC; SPKMPPAPSGRAYTSPLIDMFNNPATAAPNSQRVNNSTGTSEDPSLQRSVSVATGLNMMKKQKVKTIFPH; TAGSNKTLLSFAQGDVITLLIPEEKDGWLYGEHDVSKARGWFPSSYTKLLEENETEAVTVPTPSPTPVRS; ISTVNLSENSSVVIPPPDYLECLSMGAAADRRADSARTTSTFKAPASKPETAAPNDANGTAKPPFLSGEN; PFATVKLRPTVTNDRSAPIIR; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here

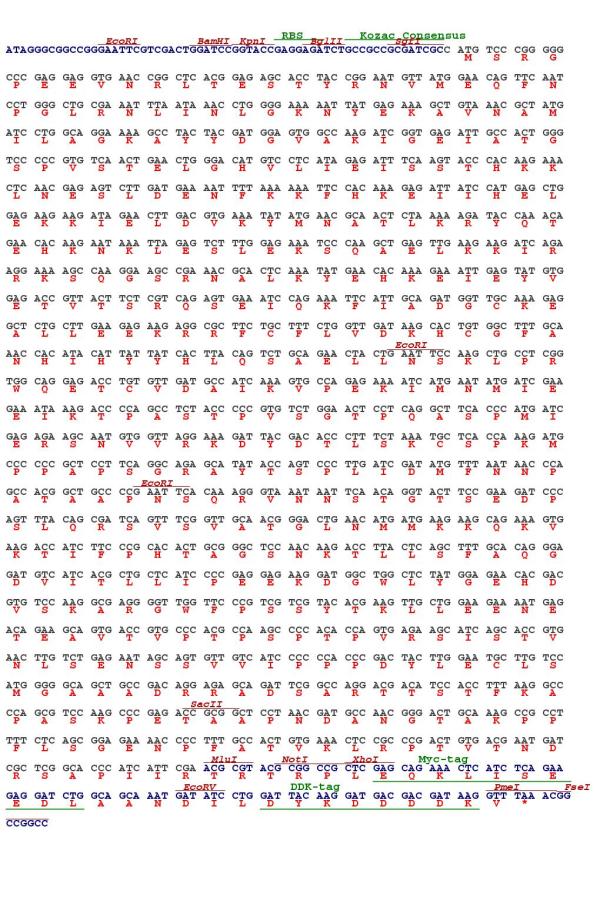

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_018842
• ORF Size: 1533 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_018842.5
• RefSeq Size: 3682 bp
• RefSeq ORF: 1536 bp
• Locus ID: 55971
• UniProt ID: Q9UHR4
• Cytogenetics: 7q21.3-q22.1
• Domains: SH3
• Protein Families: Druggable Genome
• MW: 56.9 kDa
• Summary: This gene encodes a member of the IMD (IRSp53/MIM homology domain) family. Members of this family can be subdivided in two groups, the IRSp53-like and MIM-like, based on the presence or absence of the SH3 (Src homology 3) domain. The protein encoded by this gene contains a conserved IMD, also known as F-actin bundling domain, at the N-terminus, and a canonical SH3 domain near the C-terminus, so it belongs to the IRSp53-like group. This protein is the substrate for insulin receptor tyrosine kinase and binds to the small GTPase Rac. It is involved in signal transduction pathways that link deformation of the plasma membrane and remodeling of the actin cytoskeleton. It also promotes actin assembly and membrane protrusions when overexpressed in mammalian cells, and is essential to the formation of a potent actin assembly complex during EHEC (Enterohemorrhagic Escherichia coli) pedestal formation. [provided by RefSeq, Oct 2009]
