Map1lc3b (NM_026160) Mouse Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
MG200654
Map1lc3b (tGFP-tagged) - Mouse microtubule-associated protein 1 light chain 3 beta (Map1lc3b)
Interest in protein/lysate? Submit request here!
ORF Plasmid:
tGFP DDK
AAV Particle:
DDK
  $489.00
In Stock*
Bulk Requests & Clone Modifications

Frequently Bought Together (4)

TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8
100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "Map1lc3b or NM_026160"

Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol Map1lc3b
Synonyms 1010001C15Rik; Atg8; LC3b; Map1lc3
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>MG200654 representing NM_026160
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGCCGTCCGAGAAGACCTTCAAGCAGCGCCGGAGCTTTGAACAAAGAGTGGAAGATGTCCGGCTCATCC
GGGAGCAGCACCCCACCAAGATCCCAGTGATTATAGAGCGATACAAGGGGGAGAAGCAGCTGCCCGTCCT
GGACAAGACCAAGTTCCTGGTGCCTGACCACGTGAACATGAGCGAGCTCATCAAGATAATCAGACGGCGC
TTGCAGCTCAATGCTAACCAAGCCTTCTTCCTCCTGGTGAATGGGCACAGCATGGTGAGTGTGTCCACTC
CCATCTCCGAAGTGTACGAGAGTGAGAGAGATGAAGACGGCTTCCTGTACATGGTTTATGCCTCGCAGGA
GACATTCGGGACAGCAATGGCTGTG

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>MG200654 representing NM_026160
Red=Cloning site Green=Tags(s)

MPSEKTFKQRRSFEQRVEDVRLIREQHPTKIPVIIERYKGEKQLPVLDKTKFLVPDHVNMSELIKIIRRR
LQLNANQAFFLLVNGHSMVSVSTPISEVYESERDEDGFLYMVYASQETFGTAMAV

TRTRPLE - GFP Tag - V

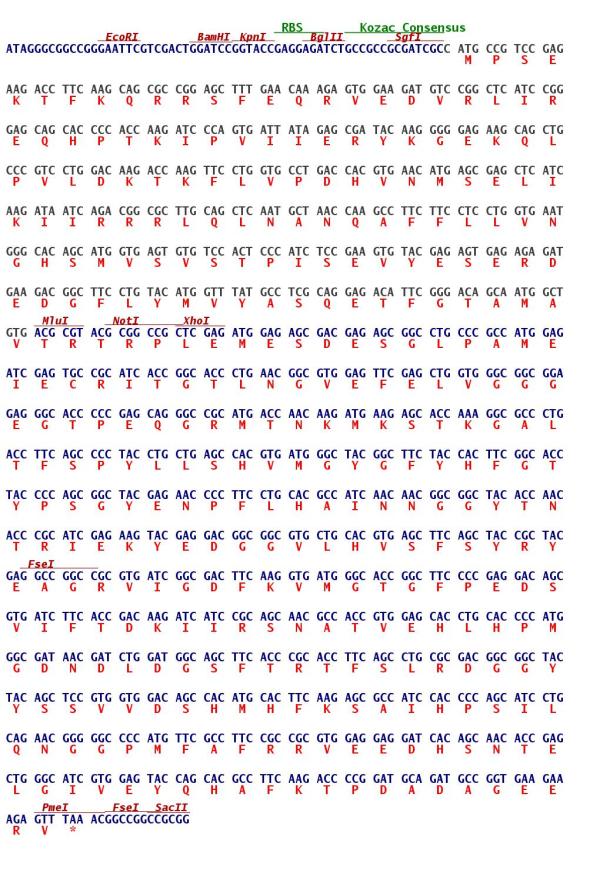

Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_026160
ORF Size 375 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_026160.5
RefSeq Size 1711 bp
RefSeq ORF 378 bp
Locus ID 67443
UniProt ID Q9CQV6
Cytogenetics 8 E1
Summary Ubiquitin-like modifier involved in formation of autophagosomal vacuoles (autophagosomes). Plays a role in mitophagy which contributes to regulate mitochondrial quantity and quality by eliminating the mitochondria to a basal level to fulfill cellular energy requirements and preventing excess ROS production. Whereas LC3s are involved in elongation of the phagophore membrane, the GABARAP/GATE-16 subfamily is essential for a later stage in autophagosome maturation. Promotes primary ciliogenesis by removing OFD1 from centriolar satellites via the autophagic pathway.UniProtKB/Swiss-Prot Function
