NHEDC2 (SLC9B2) (NM_001300754) Human Tagged ORF Clone

SKU RG238478

SLC9B2 (tGFP-tagged) - Human solute carrier family 9, subfamily B (NHA2, cation proton antiporter 2), member 2 (SLC9B2), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: NHEDC2
• Synonyms: NHA2; NHE10; NHEDC2
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

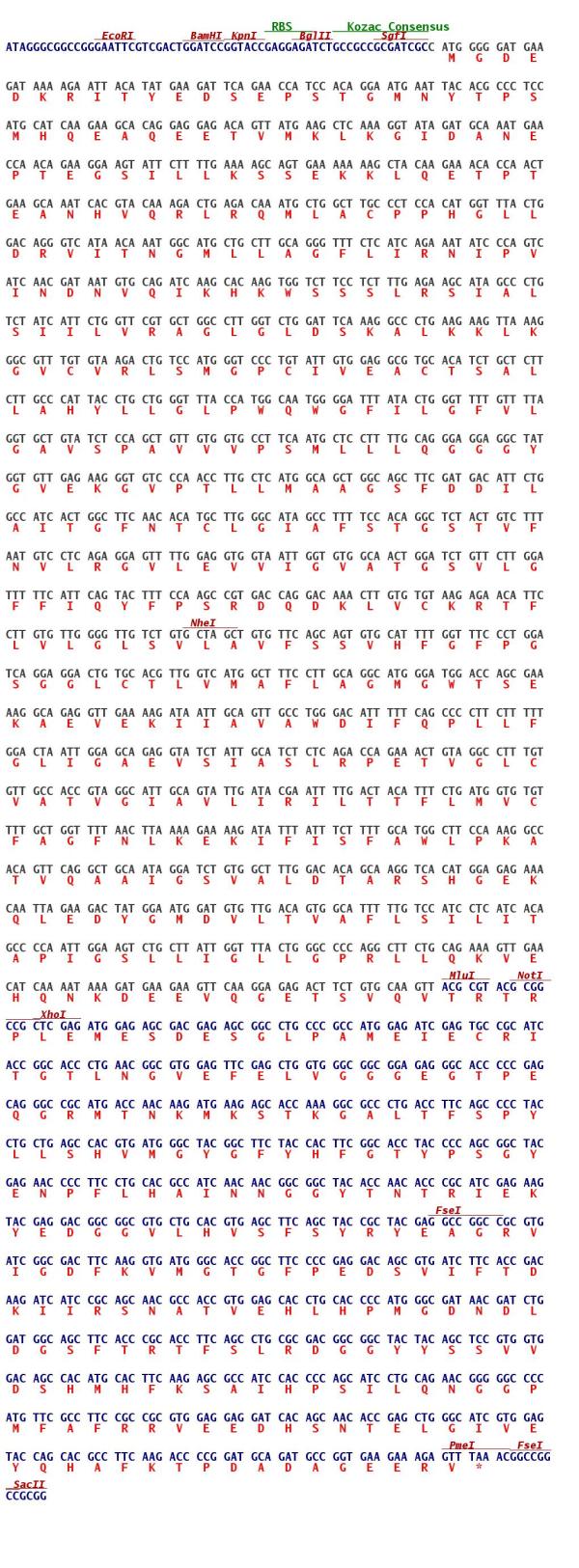

  ORF Nucleotide Sequence

  >RG238478 representing NM_001300754.; Blue=ORF Red=Cloning site Green=Tag(s); ; GCTCGTTTAGTGAACCGTCAGAATTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTG; GATCCGGTACCGAGGAGATCTGCCGCCGCGATCGCC; ATGGGGGATGAAGATAAAAGAATTACATATGAAGATTCAGAACCATCCACAGGAATGAATTACACGCCC; TCCATGCATCAAGAAGCACAGGAGGAGACAGTTATGAAGCTCAAAGGTATAGATGCAAATGAACCAACA; GAAGGAAGTATTCTTTTGAAAAGCAGTGAAAAAAAGCTACAAGAAACACCAACTGAAGCAAATCACGTA; CAAAGACTGAGACAAATGCTGGCTTGCCCTCCACATGGTTTACTGGACAGGGTCATAACAAATGGCATG; CTGCTTGCAGGGTTTCTCATCAGAAATATCCCAGTCATCAACGATAATGTGCAGATCAAGCACAAGTGG; TCTTCCTCTTTGAGAAGCATAGCCCTGTCTATCATTCTGGTTCGTGCTGGCCTTGGTCTGGATTCAAAG; GCCCTGAAGAAGTTAAAGGGCGTTTGTGTAAGACTGTCCATGGGTCCCTGTATTGTGGAGGCGTGCACA; TCTGCTCTTCTTGCCCATTACCTGCTGGGTTTACCATGGCAATGGGGATTTATACTGGGTTTTGTTTTA; GGTGCTGTATCTCCAGCTGTTGTGGTGCCTTCAATGCTCCTTTTGCAGGGAGGAGGCTATGGTGTTGAG; AAGGGTGTCCCAACCTTGCTCATGGCAGCTGGCAGCTTCGATGACATTCTGGCCATCACTGGCTTCAAC; ACATGCTTGGGCATAGCCTTTTCCACAGGCTCTACTGTCTTTAATGTCCTCAGAGGAGTTTTGGAGGTG; GTAATTGGTGTGGCAACTGGATCTGTTCTTGGATTTTTCATTCAGTACTTTCCAAGCCGTGACCAGGAC; AAACTTGTGTGTAAGAGAACATTCCTTGTGTTGGGGTTGTCTGTGCTAGCTGTGTTCAGCAGTGTGCAT; TTTGGTTTCCCTGGATCAGGAGGACTGTGCACGTTGGTCATGGCTTTCCTTGCAGGCATGGGATGGACC; AGCGAAAAGGCAGAGGTTGAAAAGATAATTGCAGTTGCCTGGGACATTTTTCAGCCCCTTCTTTTTGGA; CTAATTGGAGCAGAGGTATCTATTGCATCTCTCAGACCAGAAACTGTAGGCCTTTGTGTTGCCACCGTA; GGCATTGCAGTATTGATACGAATTTTGACTACATTTCTGATGGTGTGTTTTGCTGGTTTTAACTTAAAA; GAAAAGATATTTATTTCTTTTGCATGGCTTCCAAAGGCCACAGTTCAGGCTGCAATAGGATCTGTGGCT; TTGGACACAGCAAGGTCACATGGAGAGAAACAATTAGAAGACTATGGAATGGATGTGTTGACAGTGGCA; TTTTTGTCCATCCTCATCACAGCCCCAATTGGAAGTCTGCTTATTGGTTTACTGGGCCCCAGGCTTCTG; CAGAAAGTTGAACATCAAAATAAAGATGAAGAAGTTCAAGGAGAGACTTCTGTGCAAGTT; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAAAC;
  Protein Sequence

  >Peptide sequence encoded by RG238478; Blue=ORF Red=Cloning site Green=Tag(s); ; MGDEDKRITYEDSEPSTGMNYTPSMHQEAQEETVMKLKGIDANEPTEGSILLKSSEKKLQETPTEANHV; QRLRQMLACPPHGLLDRVITNGMLLAGFLIRNIPVINDNVQIKHKWSSSLRSIALSIILVRAGLGLDSK; ALKKLKGVCVRLSMGPCIVEACTSALLAHYLLGLPWQWGFILGFVLGAVSPAVVVPSMLLLQGGGYGVE; KGVPTLLMAAGSFDDILAITGFNTCLGIAFSTGSTVFNVLRGVLEVVIGVATGSVLGFFIQYFPSRDQD; KLVCKRTFLVLGLSVLAVFSSVHFGFPGSGGLCTLVMAFLAGMGWTSEKAEVEKIIAVAWDIFQPLLFG; LIGAEVSIASLRPETVGLCVATVGIAVLIRILTTFLMVCFAGFNLKEKIFISFAWLPKATVQAAIGSVA; LDTARSHGEKQLEDYGMDVLTVAFLSILITAPIGSLLIGLLGPRLLQKVEHQNKDEEVQGETSVQV; TRTRPLEMESDESGLPAMEIECRITGTLNGVEFELVGGGEGTPEQGRMTNKMKSTKGALTFSPYLLSHV; MGYGFYHFGTYPSGYENPFLHAINNGGYTNTRIEKYEDGGVLHVSFSYRYEAGRVIGDFKVMGTGFPED; SVIFTDKIIRSNATVEHLHPMGDNDLDGSFTRTFSLRDGGYYSSVVDSHMHFKSAIHPSILQNGGPMFA; FRRVEEDHSNTELGIVEYQHAFKTPDADAGEERV;
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001300754
• ORF Size: 1461 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001300754.2
• RefSeq Size: 2604 bp
• RefSeq ORF: 1443 bp
• Locus ID: 133308
• Cytogenetics: 4q24
• Protein Families: Druggable Genome, Transmembrane
• MW: 52 kDa
• Summary: Sodium hydrogen antiporters, such as NHEDC2, convert the proton motive force established by the respiratory chain or the F1F0 mitochondrial ATPase into sodium gradients that drive other energy-requiring processes, transduce environmental signals into cell responses, or function in drug efflux (Xiang et al., 2007 [PubMed 18000046]).[supplied by OMIM, Mar 2008]
