PEN2 (PSENEN) (NM_001281532) Human Tagged ORF Clone

SKU RG235597

PSENEN (tGFP-tagged) - Human presenilin enhancer gamma secretase subunit (PSENEN), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: PEN2
• Synonyms: ACNINV2; MDS033; MSTP064; PEN-2; PEN2
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

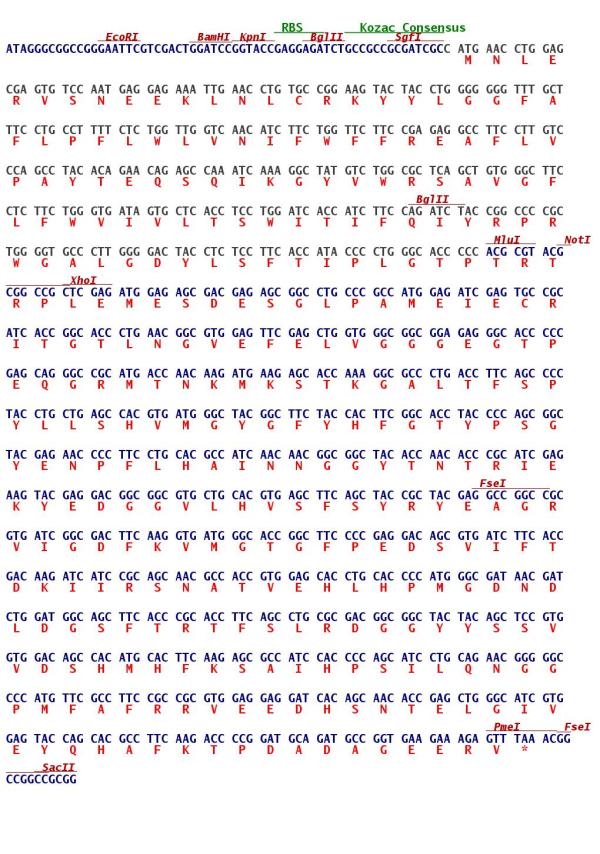

  ORF Nucleotide Sequence

  >RG235597 representing NM_001281532.; Blue=ORF Red=Cloning site Green=Tag(s); ; GCTCGTTTAGTGAACCGTCAGAATTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTG; GATCCGGTACCGAGGAGATCTGCCGCCGCGATCGCC; ATGAACCTGGAGCGAGTGTCCAATGAGGAGAAATTGAACCTGTGCCGGAAGTACTACCTGGGGGGGTTT; GCTTTCCTGCCTTTTCTCTGGTTGGTCAACATCTTCTGGTTCTTCCGAGAGGCCTTCCTTGTCCCAGCC; TACACAGAACAGAGCCAAATCAAAGGCTATGTCTGGCGCTCAGCTGTGGGCTTCCTCTTCTGGGTGATA; GTGCTCACCTCCTGGATCACCATCTTCCAGATCTACCGGCCCCGCTGGGGTGCCCTTGGGGACTACCTC; TCCTTCACCATACCCCTGGGCACCCCC; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAAAC;
  Protein Sequence

  >Peptide sequence encoded by RG235597; Blue=ORF Red=Cloning site Green=Tag(s); ; MNLERVSNEEKLNLCRKYYLGGFAFLPFLWLVNIFWFFREAFLVPAYTEQSQIKGYVWRSAVGFLFWVI; VLTSWITIFQIYRPRWGALGDYLSFTIPLGTP; TRTRPLEMESDESGLPAMEIECRITGTLNGVEFELVGGGEGTPEQGRMTNKMKSTKGALTFSPYLLSHV; MGYGFYHFGTYPSGYENPFLHAINNGGYTNTRIEKYEDGGVLHVSFSYRYEAGRVIGDFKVMGTGFPED; SVIFTDKIIRSNATVEHLHPMGDNDLDGSFTRTFSLRDGGYYSSVVDSHMHFKSAIHPSILQNGGPMFA; FRRVEEDHSNTELGIVEYQHAFKTPDADAGEERV;
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001281532
• ORF Size: 308 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001281532.3
• RefSeq Size: 796 bp
• RefSeq ORF: 306 bp
• Locus ID: 55851
• UniProt ID: Q9NZ42
• Cytogenetics: 19q13.12
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: Alzheimer's disease, Notch signaling pathway
• MW: 12 kDa
• Summary: Presenilins, which are components of the gamma-secretase protein complex, are required for intramembranous processing of some type I transmembrane proteins, such as the Notch proteins and the beta-amyloid precursor protein. Signaling by Notch receptors mediates a wide range of developmental cell fates. Processing of the beta-amyloid precursor protein generates neurotoxic amyloid beta peptides, the major component of senile plaques associated with Alzheimer's disease. This gene encodes a protein that is required for Notch pathway signaling, and for the activity and accumulation of gamma-secretase. Mutations resulting in haploinsufficiency for this gene cause familial acne inversa-2 (ACNINV2). Alternative splicing results in multiple transcript variants. [provided by RefSeq, Jul 2013]
