CHRNA2 (NM_000742) Human Tagged ORF Clone

SKU RG220994

CHRNA2 (tGFP-tagged) - Human cholinergic receptor, nicotinic, alpha 2 (neuronal) (CHRNA2)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: CHRNA2
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

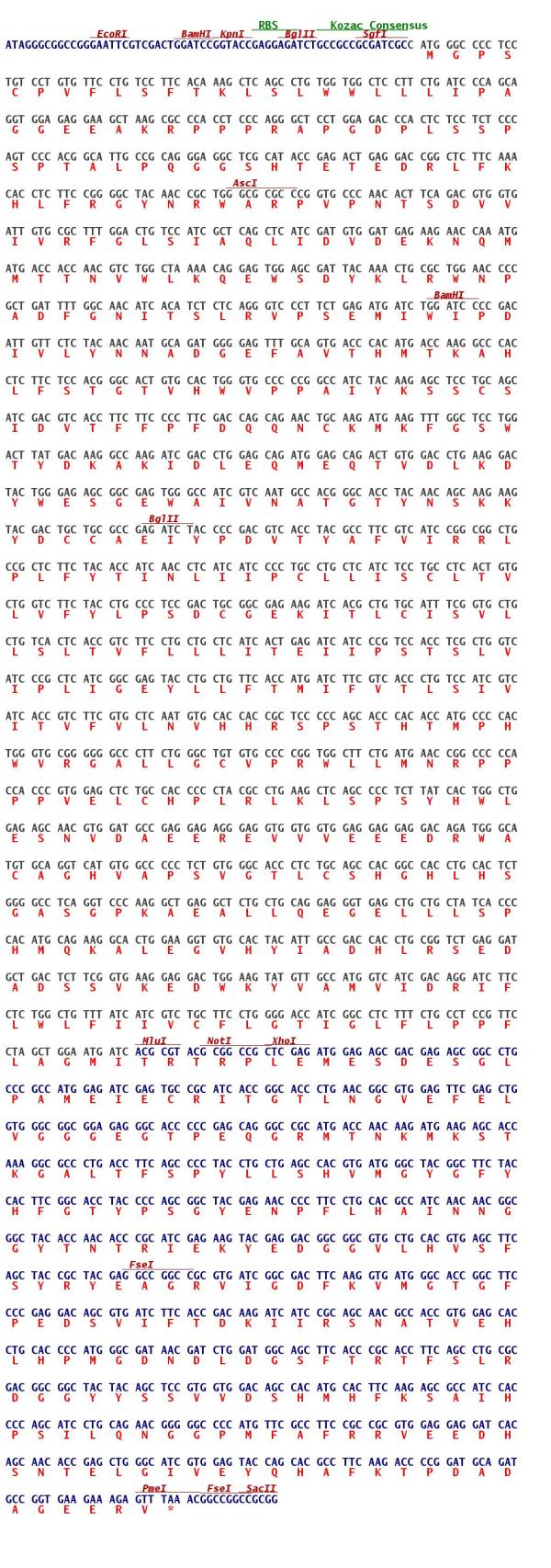

  ORF Nucleotide Sequence

  >RG220994 representing NM_000742; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGGCCCCTCCTGTCCTGTGTTCCTGTCCTTCACAAAGCTCAGCCTGTGGTGGCTCCTTCTGATCCCAG; CAGGTGGAGAGGAAGCTAAGCGCCCACCTCCCAGGGCTCCTGGAGACCCACTCTCCTCTCCCAGTCCCAC; GGCATTGCCGCAGGGAGGCTCGCATACCGAGACTGAGGACCGGCTCTTCAAACACCTCTTCCGGGGCTAC; AACCGCTGGGCGCGCCCGGTGCCCAACACTTCAGACGTGGTGATTGTGCGCTTTGGACTGTCCATCGCTC; AGCTCATCGATGTGGATGAGAAGAACCAAATGATGACCACCAACGTCTGGCTAAAACAGGAGTGGAGCGA; TTACAAACTGCGCTGGAACCCCGCTGATTTTGGCAACATCACATCTCTCAGGGTCCCTTCTGAGATGATC; TGGATCCCCGACATTGTTCTCTACAACAATGCAGATGGGGAGTTTGCAGTGACCCACATGACCAAGGCCC; ACCTCTTCTCCACGGGCACTGTGCACTGGGTGCCCCCGGCCATCTACAAGAGCTCCTGCAGCATCGACGT; CACCTTCTTCCCCTTCGACCAGCAGAACTGCAAGATGAAGTTTGGCTCCTGGACTTATGACAAGGCCAAG; ATCGACCTGGAGCAGATGGAGCAGACTGTGGACCTGAAGGACTACTGGGAGAGCGGCGAGTGGGCCATCG; TCAATGCCACGGGCACCTACAACAGCAAGAAGTACGACTGCTGCGCCGAGATCTACCCCGACGTCACCTA; CGCCTTCGTCATCCGGCGGCTGCCGCTCTTCTACACCATCAACCTCATCATCCCCTGCCTGCTCATCTCC; TGCCTCACTGTGCTGGTCTTCTACCTGCCCTCCGACTGCGGCGAGAAGATCACGCTGTGCATTTCGGTGC; TGCTGTCACTCACCGTCTTCCTGCTGCTCATCACTGAGATCATCCCGTCCACCTCGCTGGTCATCCCGCT; CATCGGCGAGTACCTGCTGTTCACCATGATCTTCGTCACCCTGTCCATCGTCATCACCGTCTTCGTGCTC; AATGTGCACCACCGCTCCCCCAGCACCCACACCATGCCCCACTGGGTGCGGGGGGCCCTTCTGGGCTGTG; TGCCCCGGTGGCTTCTGATGAACCGGCCCCCACCACCCGTGGAGCTCTGCCACCCCCTACGCCTGAAGCT; CAGCCCCTCTTATCACTGGCTGGAGAGCAACGTGGATGCCGAGGAGAGGGAGGTGGTGGTGGAGGAGGAG; GACAGATGGGCATGTGCAGGTCATGTGGCCCCCTCTGTGGGCACCCTCTGCAGCCACGGCCACCTGCACT; CTGGGGCCTCAGGTCCCAAGGCTGAGGCTCTGCTGCAGGAGGGTGAGCTGCTGCTATCACCCCACATGCA; GAAGGCACTGGAAGGTGTGCACTACATTGCCGACCACCTGCGGTCTGAGGATGCTGACTCTTCGGTGAAG; GAGGACTGGAAGTATGTTGCCATGGTCATCGACAGGATCTTCCTCTGGCTGTTTATCATCGTCTGCTTCC; TGGGGACCATCGGCCTCTTTCTGCCTCCGTTCCTAGCTGGAATGATC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG220994 representing NM_000742; Red=Cloning site Green=Tags(s); ; MGPSCPVFLSFTKLSLWWLLLIPAGGEEAKRPPPRAPGDPLSSPSPTALPQGGSHTETEDRLFKHLFRGY; NRWARPVPNTSDVVIVRFGLSIAQLIDVDEKNQMMTTNVWLKQEWSDYKLRWNPADFGNITSLRVPSEMI; WIPDIVLYNNADGEFAVTHMTKAHLFSTGTVHWVPPAIYKSSCSIDVTFFPFDQQNCKMKFGSWTYDKAK; IDLEQMEQTVDLKDYWESGEWAIVNATGTYNSKKYDCCAEIYPDVTYAFVIRRLPLFYTINLIIPCLLIS; CLTVLVFYLPSDCGEKITLCISVLLSLTVFLLLITEIIPSTSLVIPLIGEYLLFTMIFVTLSIVITVFVL; NVHHRSPSTHTMPHWVRGALLGCVPRWLLMNRPPPPVELCHPLRLKLSPSYHWLESNVDAEEREVVVEEE; DRWACAGHVAPSVGTLCSHGHLHSGASGPKAEALLQEGELLLSPHMQKALEGVHYIADHLRSEDADSSVK; EDWKYVAMVIDRIFLWLFIIVCFLGTIGLFLPPFLAGMI; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000742
• ORF Size: 1587 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000742.1, NP_000733.1
• RefSeq Size: 2664 bp
• RefSeq ORF: 1590 bp
• Locus ID: 1135
• UniProt ID: Q15822
• Cytogenetics: 8p21.2
• Protein Families: Druggable Genome, Ion Channels: Cys-loop Receptors, Transmembrane
• Summary: Nicotinic acetylcholine receptors (nAChRs) are ligand-gated ion channels formed by a pentameric arrangement of alpha and beta subunits to create distinct muscle and neuronal receptors. Neuronal receptors are found throughout the peripheral and central nervous system where they are involved in fast synaptic transmission. This gene encodes an alpha subunit that is widely expressed in the brain. The proposed structure for nAChR subunits is a conserved N-terminal extracellular domain followed by three conserved transmembrane domains, a variable cytoplasmic loop, a fourth conserved transmembrane domain, and a short C-terminal extracellular region. Mutations in this gene cause autosomal dominant nocturnal frontal lobe epilepsy type 4. Single nucleotide polymorphisms (SNPs) in this gene have been associated with nicotine dependence. [provided by RefSeq, Nov 2009]
